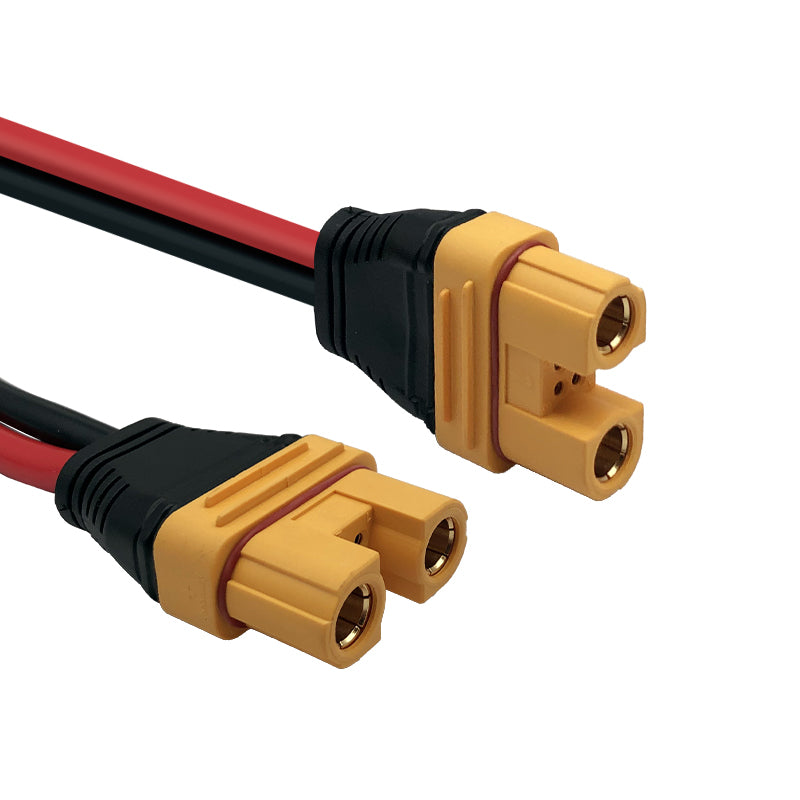

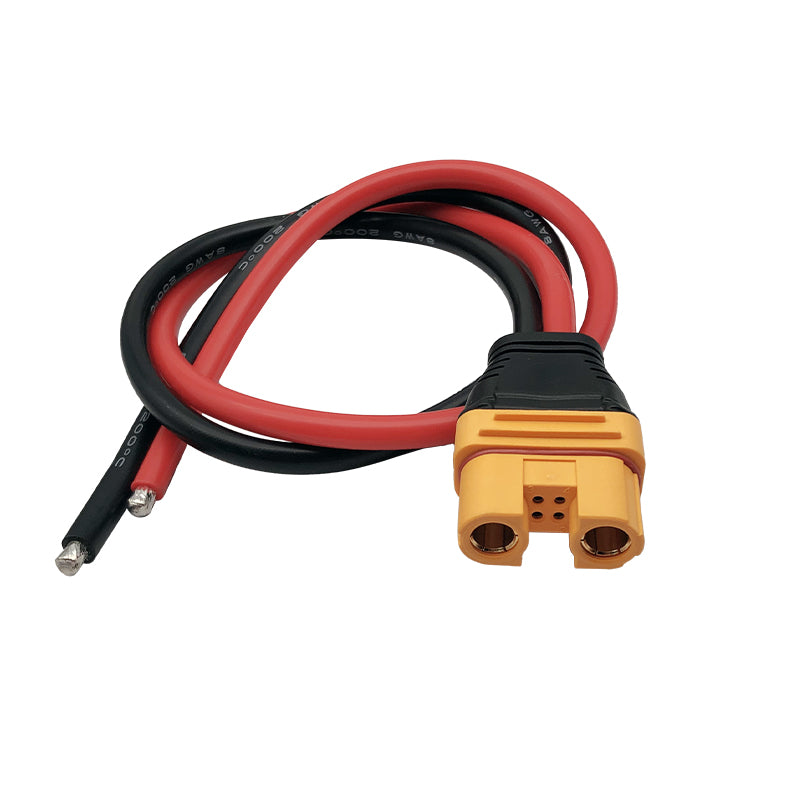

Amass AS150U- Female Connector with Wire 8AWG 35CM Length

Amass AS150U- Female Connector with Wire 8AWG 35CM Length

Availability: In stock
₹ 1,170.00 (Inc.GST)
₹ 1,170.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

6570092

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 15 Days Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Name AS150U-F Female Connector Cable
Connector Type AS150U-F Anti-Spark Connector
Cable Length 35 cm
Wire Gauge 8 AWG
Number of Pins 2 Pins
Rated Current 150 A Continuous
Peak Current Up to 200 A
Rated Voltage Up to 500 V DC
Anti-Spark Feature Integrated Pre-Charge Resistor
Contact Material Gold-Plated Copper/Brass
Housing Material High-Temperature Nylon (PA)
Cable Material Flexible Silicone Wire
Cable Color Red (+) and Black (−)
Connection Type Factory Pre-Soldered Cable
Operating Temperature -20°C to +120°C

The Amass AS150U-F Female Connector Cable (8 AWG, 35 cm) is a high-current anti-spark DC power connector with factory pre-soldered 8 AWG silicone wires. Rated for 150 A continuous current, it features gold-plated contacts, an integrated anti-spark resistor, and a 35 cm cable length, making it ideal for high-power LiPo battery packs, UAVs, electric vehicles, ESCs, and industrial power systems.

Key Features:

  • AS150U-F female anti-spark connector with pre-installed cable
  • 35 cm long flexible 8 AWG silicone wire
  • Rated for 150 A continuous current
  • Handles up to 200 A peak current
  • Integrated anti-spark resistor minimizes arcing during connection
  • Gold-plated contacts provide low contact resistance and excellent conductivity
  • High-temperature, flame-retardant nylon housing
  • Factory pre-soldered for quick installation
  • Secure, vibration-resistant connection
  • Suitable for high-power DC systems

Packing List Includes:

  • 1 x (AS150U-F-W) Female Connector Cable (8 AWG, 35 cm)

The product has a warranty for 15 Days against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
