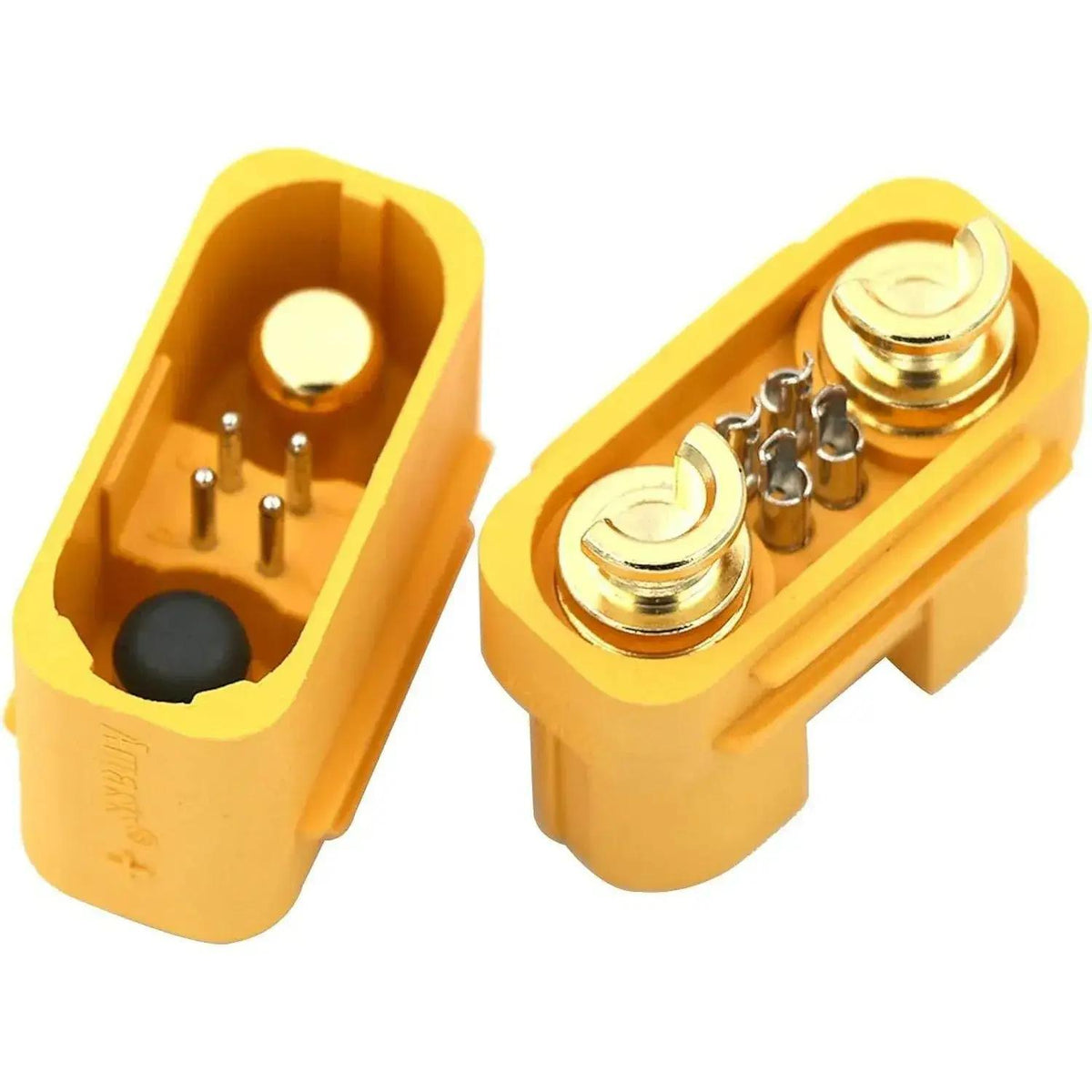

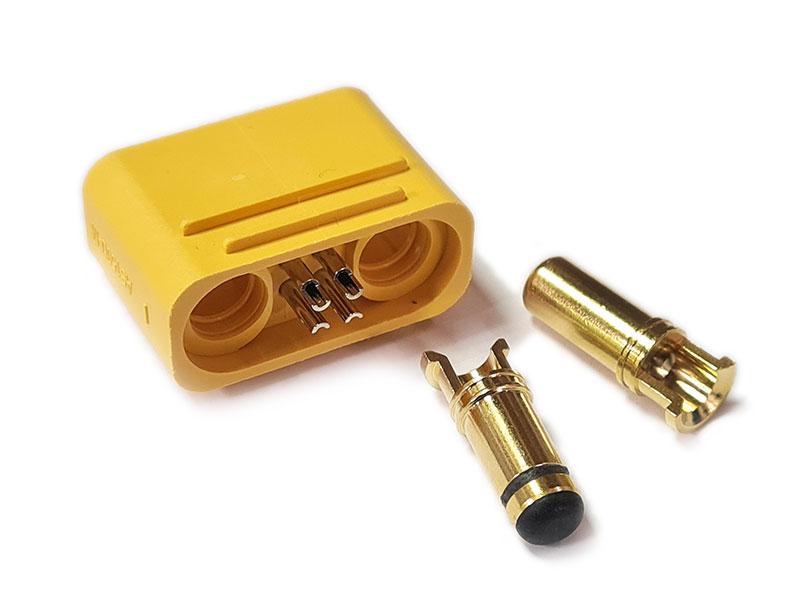

Amass AS150U - Male Connector

Amass AS150U - Male Connector

Availability: In stock
₹ 522.00 (Inc.GST)
₹ 522.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

6570095

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 15 Days Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Name AS150U-M Anti-Sparking Male Connector
Connector Type AS150U-Male High-Current Anti-Spark Connector
Number of Power Contacts 2
Signal Contacts 4 Auxiliary Signal Pins
Rated Current 70 A Continuous (75 A Max with 8 AWG)
Peak Current 140 A
Rated Voltage Up to 500 V DC

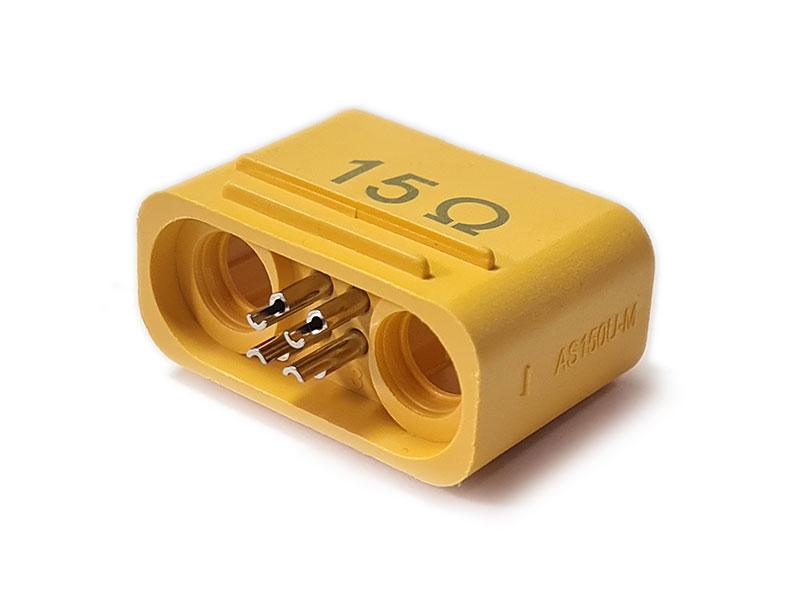

Anti-Spark Feature Integrated Pre-Charge Resistor
Contact Material Gold-Plated Brass/Copper
Housing Material PA66 High-Temperature Nylon
Flame Retardant Rating UL94 V-0
Contact Resistance ≤ 0.4 mΩ
Recommended Wire Size 8 AWG
Connection Type Solder Terminal
Mounting Style Cable Mount
Mechanical Durability Up to 1,000 Mating Cycles
Protection Rating IP40
Operating Temperature -20°C to +120°C
Color Yellow

The AS150U-M Anti-Sparking Male Connector is a high-current DC power connector designed for industrial UAVs, electric vehicles, and high-power battery systems. Featuring an integrated anti-spark circuit, 70 A continuous current (up to 75 A max with 8 AWG wire), 140 A peak current, 2 power contacts, 4 auxiliary signal pins, gold-plated terminals, and a PA66 flame-retardant housing, it provides a safe, reliable, and low-resistance connection for demanding power applications.

Key Features:

  • Integrated anti-spark design minimizes arcing during battery connection
  • Rated for 70 A continuous current (up to 75 A max with 8 AWG wire)
  • Supports 140 A peak current
  • 2 high-current power contacts and 4 auxiliary signal pins
  • Gold-plated contacts for low contact resistance and high conductivity
  • High-temperature PA66 flame-retardant housing
  • Supports 8 AWG silicone wire
  • Secure, vibration-resistant cable connection
  • Low power loss for high-current applications
  • Designed for industrial UAVs, EVs, and high-power battery systems

Packing List Includes:

1 x AS150U-M Anti-Sparking Male Connector

The product has a warranty for 15 Days against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
