BLD300 Brushless DC Motor Driver 18–50V Input, 300W Output

BLD300 Brushless DC Motor Driver 18–50V Input, 300W Output

Availability: In stock
₹ 3,680.00 (Inc.GST)
₹ 3,680.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270302

Short Description:
  1. Output current : 15(Max).
  2. Voltage : 18-50V
  3. Equipped with LED indicator.
  4. Potentiometer with switch function for PWM adjustment.
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model BLD300
Motor Type Supported 3-phase Brushless DC Motor (BLDC)
Rated Power 300 W
Input Voltage Range 18 – 50 V DC
Operating Voltage 12 – 56 V DC
Rated Voltage 48 V DC
Output Current 15 A
Rated Speed Range 0 – 20,000 RPM
Control Modes External controller (PLC, MCU) or built-in potentiometer
Hall Sensor Support Yes (closed-loop control)
Speed Control External potentiometer / analog / PWM
Direction Control Forward / Reverse supported
Protection Features Over-voltage, under-voltage, alarm signal output
Dimensions 142 × 90 × 33 mm
Weight 306 g
Cooling Method Natural air cooling
Operating Temperature 0°C to 50°C
Application Compatibility Robotics, automation, industrial machines

The Xrobo.in BLD300 W brushless DC motor driver designed to control 3-phase BLDC motors with Hall sensor feedback. It supports both manual and external speed control and provides smooth operation with high starting torque and quick response.

Application :

  • Industrial automation and machinery
  • Robotics and robotic motion control
  • Conveyor and packaging systems
  • CNC machines and precision equipment
  • AGV and mobile robot drive systems

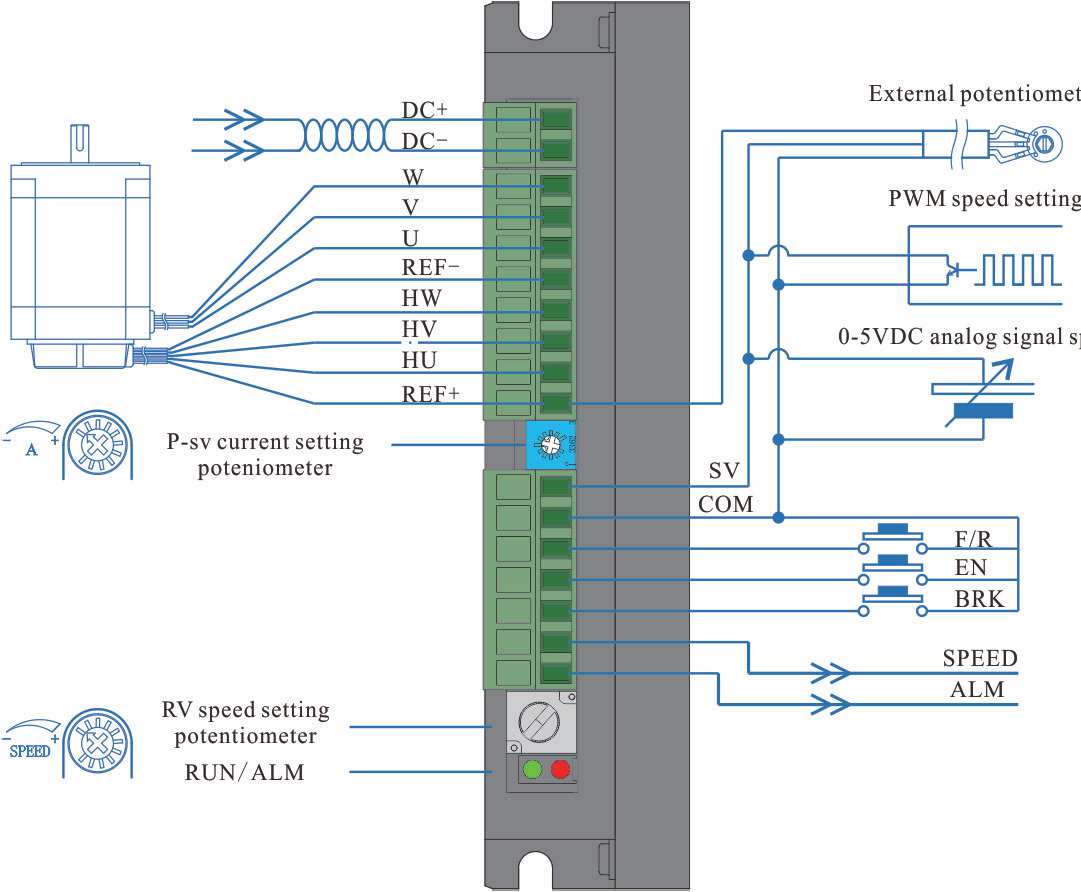

Wires Connection:

  • Yellow : U
  • Green : V
  • Blue : W

Driver Connection:

  • REF+ = Red
  • HU = Yellow
  • HV    = Green
  • HW  = Blue
  • REF- = Black
  • P-SV = Current setting
  • SV = External potentiometer Signal
  • COM = External potentiometer GND
  • F/R = Direction Level
  • EN = Enable
  • BRK = Braking
  • Speed = Speed Signal Output Port
  • ALM = Light Signal Output Port
  • RV = Speed potentiometer

Packing List Includes:

1 x BLD300 Brushless DC Motor Driver

The product has a warranty for 1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
