| Parameter | Specification |
|---|---|
| Model | Ender-3 V4 Combo |
| Printing Technology | FDM (Fused Deposition Modeling) |
| Build Volume | 220 × 220 × 235 mm |
| Maximum Print Speed | Up to 500 mm/s |
| Maximum Acceleration | Up to 12,000 mm/s² |
| Printing Accuracy | ±0.1 mm |
| Layer Height | 0.1 – 0.35 mm |
| Nozzle Diameter | 0.4 mm |
| Maximum Nozzle Temperature | 300°C |
| Maximum Bed Temperature | 100°C |
| Extruder Type | Dual-Gear Direct Drive Extruder |
| Build Plate | Flexible PEI Plate |
| Display | 2.8-inch Color Touchscreen |
| Connectivity | USB Drive, Wi-Fi, Creality Cloud |
| Supported Filaments | PLA, PETG, ABS, TPU, ASA |
| Filament Diameter | 1.75 mm |
| Printer Dimensions | 396 × 359 × 456 mm |
| Combo Dimensions | 838 × 396 × 456 mm |
| Printer Weight | 6.8 kg |
| Rated Power | 900 W |
| Power Input | 100–240V AC, 50/60 Hz |
| Multi-Color System | CFS (Creality Filament System) Included |
| Auto Filament Relay | Yes |
| Filament Tangle Detection | Yes |
| Power Loss Recovery | Yes |
| Input Shaping | Yes |

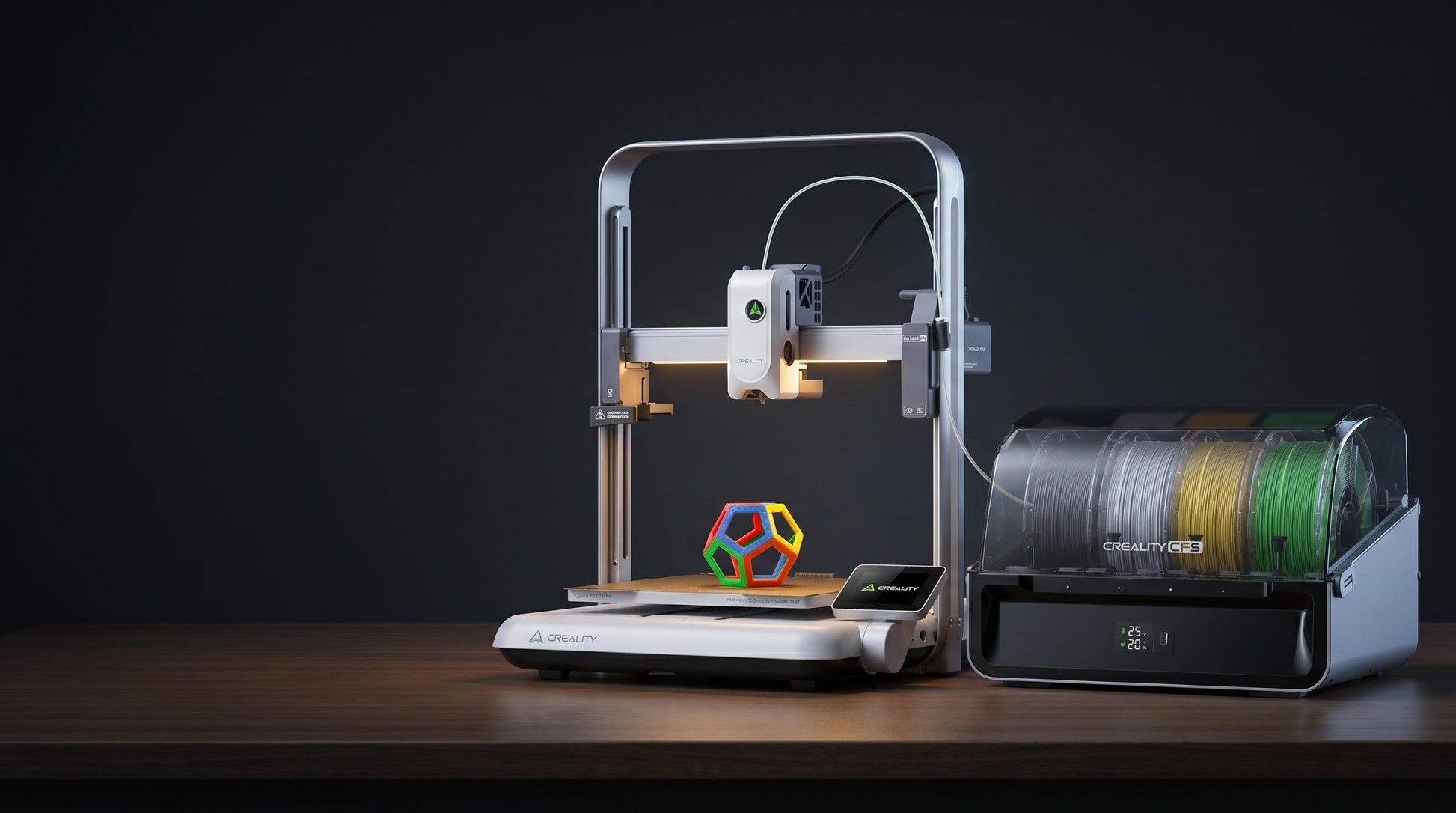

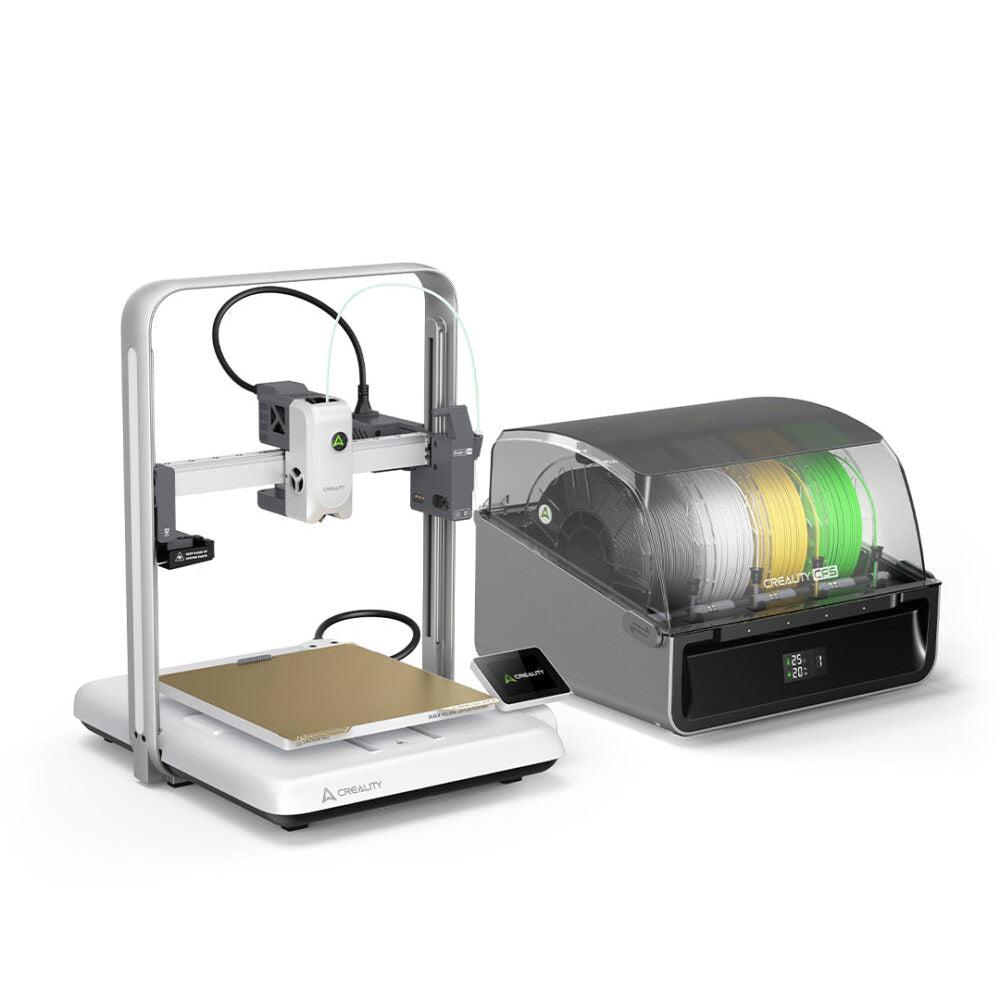

The Creality Ender-3 V4 Combo is a high-speed, multi-color FDM 3D printer featuring a 220 × 220 × 235 mm build volume, automatic calibration, integrated CFS filament system, and a 300°C direct-drive hotend. It is designed for makers, engineers, educational institutions, and small-scale manufacturing requiring reliable multi-material and multi-color printing
Key Features:
- Integrated CFS multi-color printing system
- Supports up to 16-color printing with additional CFS units
- High-speed printing up to 500 mm/s
- Dual-gear direct-drive extruder
- 300°C all-metal hotend
- Flexible PEI build plate
- Automatic calibration and bed leveling
- Wi-Fi, USB, and Creality Cloud connectivity
- Filament tangle detection
- Automatic filament relay and switching
- Input shaping for reduced vibrations
- Quiet operation (~47 dB in silent mode)
- Die-cast rigid metal frame
- Quick-swap "Unicorn" nozzle system
- One-piece heated bed for uniform heating
- Power loss recovery function
- Multi-printer management via LAN.
Applications:
- Multi-color prototypes
- Engineering and functional parts
- Educational and research projects
- Product design and development
- Robotics and drone components
- Small-batch manufacturing
- Decorative and artistic models
- Cosplay and figurines
- Architectural models
Packing List Includes:
- Creality Ender-3 V4 Combo 3D Printer
