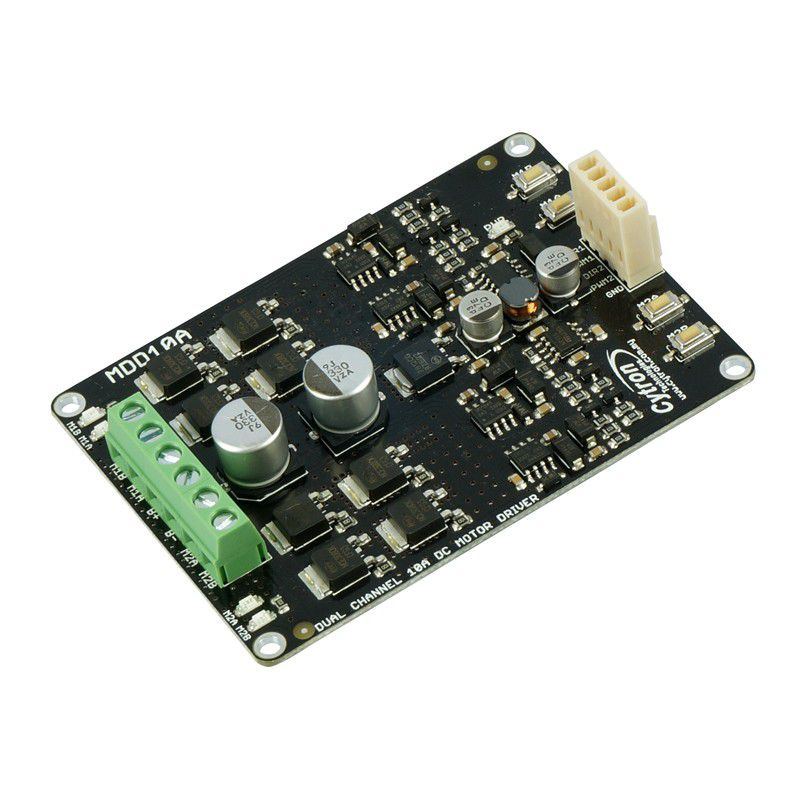

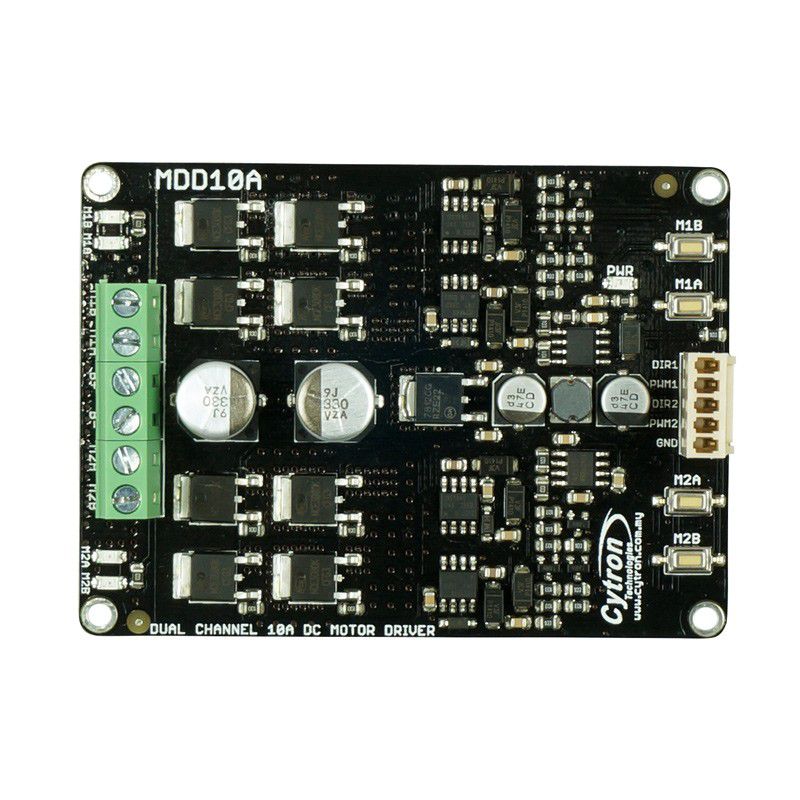

Cytron 10Amp 5V-30V DC Motor Driver MDD10A (2 Channels)

Cytron 10Amp 5V-30V DC Motor Driver MDD10A (2 Channels)

Availability: In stock (Shipped within 2-3 days)
₹ 2,180.00 (Inc.GST)
₹ 2,180.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9271003

Short Description:
  • Dual-channel DC motor driver (controls 2 motors)
  • Supports 5V – 30V DC input
  • 10A continuous current per channel
  • PWM + Direction control interface
  • Compatible with Arduino & microcontrollers
  • Efficient NMOS H-Bridge design
  • Built-in regenerative braking
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Category Specification
Model Cytron MDD10A
Type Dual Channel DC Motor Driver
Motor Type Brushed DC Motor
Channels 2
Operating Voltage 5V – 30V DC
Continuous Current 10A per channel
Peak Current 30A (short duration)
Control Method PWM + Direction
Logic Input 3.3V / 5V compatible
PWM Frequency Up to 20kHz
Special Features Regenerative braking
Protection Overcurrent, Thermal, UVLO
Dimensions ~84.5 × 62 mm
Applications Robotics, RC, automation

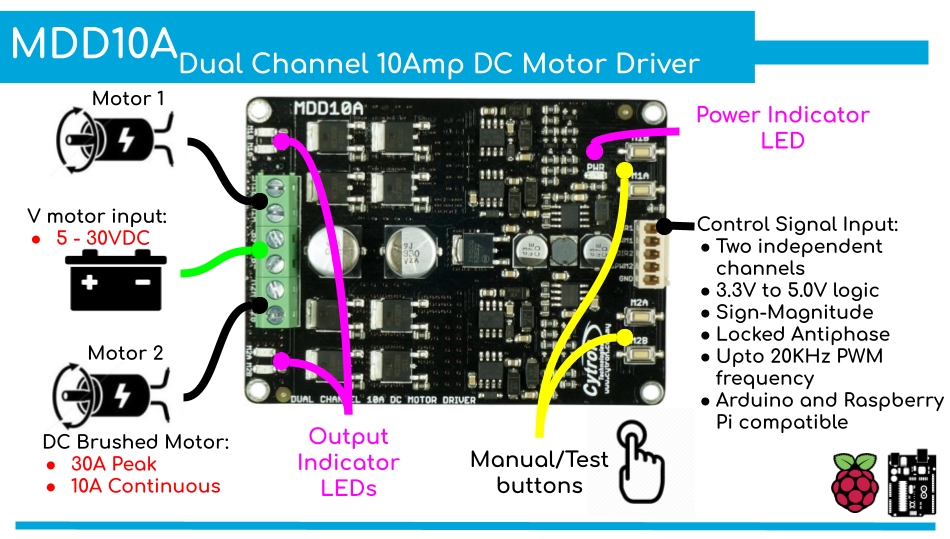

The Cytron MDD10A 10A Dual Channel DC Motor Driver is a compact and efficient motor controller designed to drive two brushed DC motors independently. With support for 5V to 30V input and up to 10A continuous current per channel, it is ideal for medium-power robotics and automation projects.

Built with a full NMOS H-bridge and solid-state components, it offers fast response, high efficiency, and reliable motor control for applications like robots, RC vehicles, and smart automation systems.

Key Features:

Dual Channel Motor Control

  • Controls 2 brushed DC motors bidirectionally
  • Independent control for each motor

High Current Capability

  • 10A continuous current per channel
  • Up to 30A peak (short duration)

Wide Voltage Range

  • Operating voltage: 5V – 30V DC
  • Compatible with various DC motors

Flexible Control Interface

  • Supports PWM + Direction control
  • Compatible with Arduino, Raspberry Pi & microcontrollers

High Efficiency Design

  • NMOS H-Bridge architecture
  • No mechanical relay → longer life & faster response

Advanced Motor Control

  • Supports Locked-Antiphase & Sign-Magnitude PWM
  • Regenerative braking for better efficiency

Easy Testing & Setup

  • Onboard test buttons for quick operation
  • Pre-soldered connectors for easy wiring

Protection Features

  • Overcurrent protection
  • Thermal shutdown
  • Undervoltage lockout

Applications

  • Mobile robots & robotic platforms
  • RC cars & vehicles
  • DIY robotics projects
  • Automation systems & conveyors
  • Dual motor drive systems
  • Arduino & Raspberry Pi projects

Packing List Includes:

  • 1 x Cytron 10Amp 5V-30V DC Motor Driver MDD10A

The product has a warranty for 1 Months against manufacturing defects only.

  • However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
