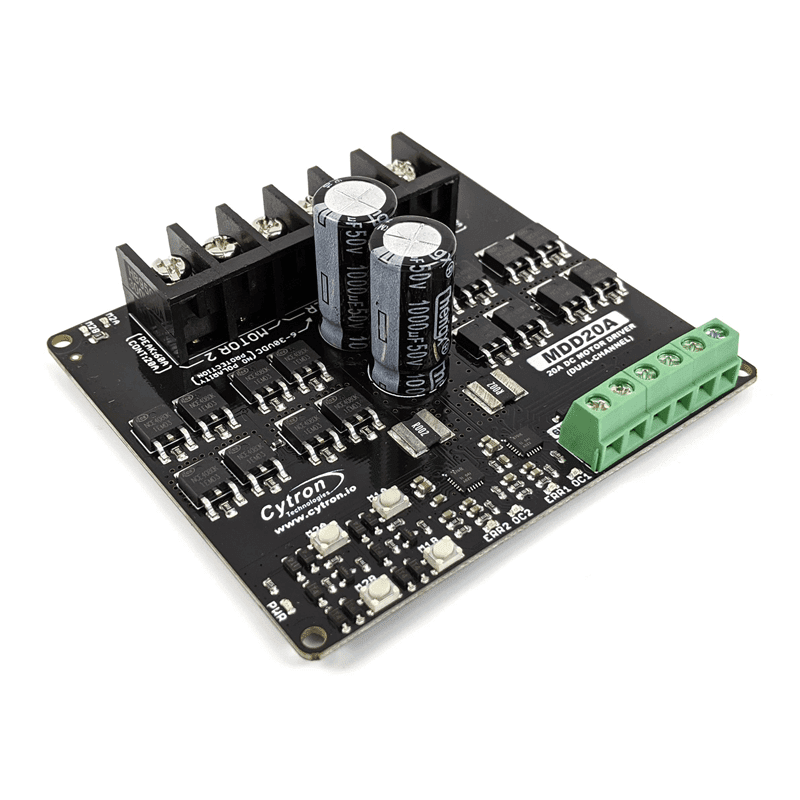

Cytron 20Amp 6V-30V DC Motor Driver MDD20A (2 Channels)

Cytron 20Amp 6V-30V DC Motor Driver MDD20A (2 Channels)

Availability: In stock (Shipped within 2-3 days)
₹ 3,300.00 (Inc.GST)
₹ 3,300.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9271001

Short Description:
  • Dual-channel DC motor driver (2 motors control)
  • Supports 6V – 30V operating voltage
  • 20A continuous current per channel
  • PWM + Direction control interface
  • Compatible with 1.8V / 3.3V / 5V / 12V logic
  • High-efficiency NMOS H-Bridge design
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Category Specification
Model Cytron MDD20A
Type Dual Channel DC Motor Driver
Motor Type Brushed DC Motor
Channels 2
Operating Voltage 6V – 30V DC
Continuous Current 20A per channel
Peak Current 60A
Control Method PWM + Direction
Logic Input 1.8V – 12V compatible
PWM Frequency Up to 20kHz
Protection Overcurrent, Thermal, Undervoltage
Indicators LED status indicators
Extra Features Onboard test buttons
Weight ~89g

The Cytron MDD20A 20A Dual Channel DC Motor Driver is a high-performance motor controller designed to drive two brushed DC motors efficiently. Operating within a 6V to 30V range, it uses a full NMOS H-bridge design to deliver high current with excellent efficiency and reliability.

With support for PWM and direction control, along with built-in protection mechanisms, it is ideal for robotics, automation, and industrial motion control systems requiring stable and high-power motor driving.

Key Features:

Dual Motor Control

  • Controls 2 brushed DC motors bidirectionally
  • Independent control for each channel

High Current Capability

  • 20A continuous per channel
  • Up to 60A peak current

Wide Voltage Range

  • Operating voltage: 6V – 30V DC
  • Suitable for various motor types

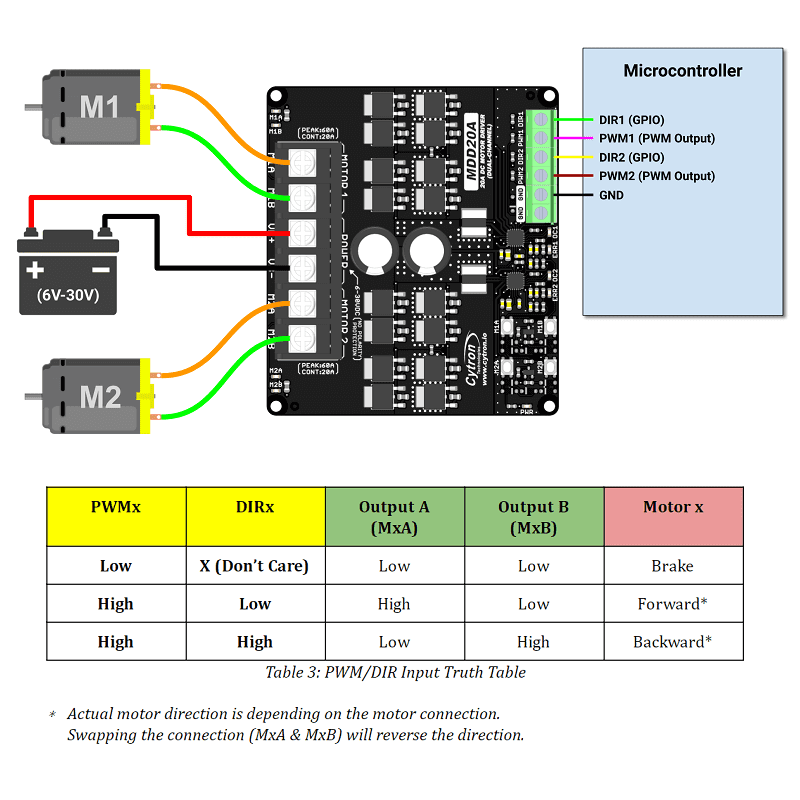

Flexible Control Interface

  • PWM + DIR control signals
  • Supports logic levels: 1.8V, 3.3V, 5V, 12V

High Efficiency Design

  • Full NMOS H-Bridge architecture
  • No heatsink required for rated operation

Built-in Testing & Indicators

  • Onboard test buttons
  • LED indicators for motor status

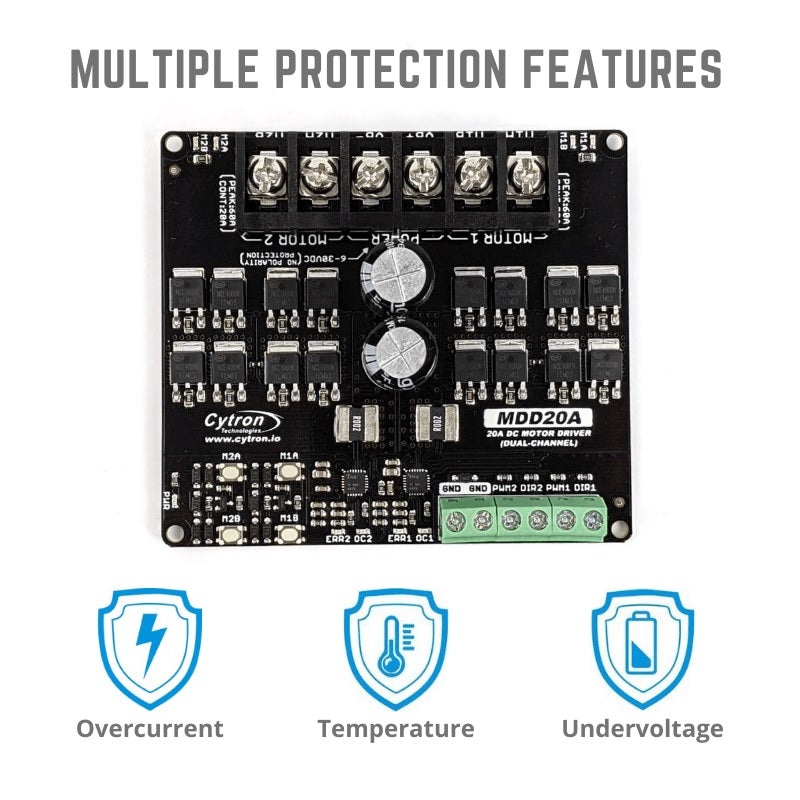

Protection Features

  • Overcurrent protection with current limiting
  • Temperature protection
  • Undervoltage shutdown

Applications

  • Mobile robots & AGVs
  • Agricultural robots & automation systems
  • Game simulators & motion platforms
  • Solar tracking systems
  • Industrial automation machines
  • RC vehicles & high-power motor control

Packing List Includes:

  • 1 x Cytron 20Amp 6V-30V DC Motor Driver MDD20A

The product has a warranty for 1 Months against manufacturing defects only.

  • However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
