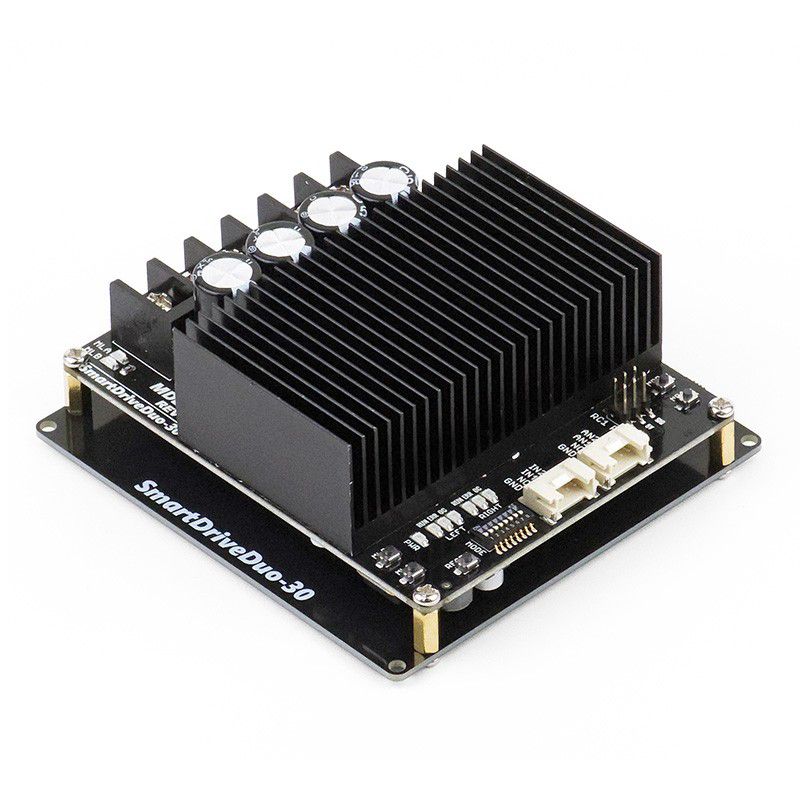

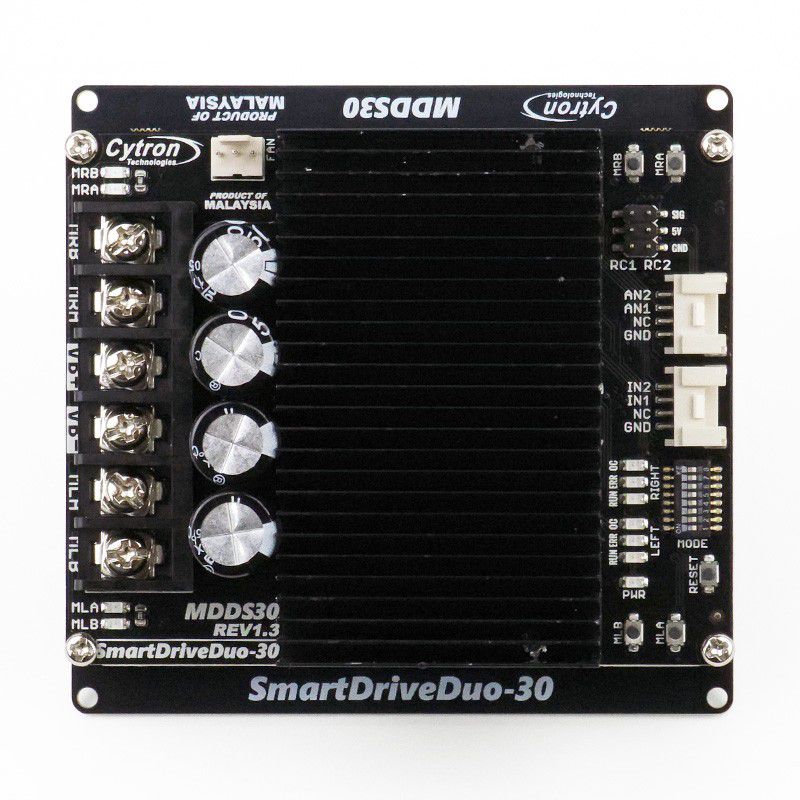

Cytron 30A 7V-35V Smart DC Motor Driver MDDS30 (2 Channels)

Cytron 30A 7V-35V Smart DC Motor Driver MDDS30 (2 Channels)

Availability: In stock (Shipped within 2-3 days)
₹ 9,360.00 (Inc.GST)
₹ 9,360.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9271002

Short Description:
  • High-power 30A dual-channel motor driver
  • Supports 7V – 35V DC input
  • Controls 2 brushed DC motors (independent/mixed mode)
  • Multiple control modes: RC, PWM, Analog, UART
  • Built-in regenerative braking
  • Silent operation (~18kHz switching)
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Category Specification
Model Cytron MDDS30
Type Dual Channel DC Motor Driver
Motor Type Brushed DC Motor
Channels 2
Operating Voltage 7V – 35V DC
Continuous Current 30A per channel
Peak Current 80A (short duration)
Control Modes RC / PWM / Analog / UART
Switching Frequency ~18 kHz
Special Features Regenerative braking, mixed mode
Protection Overcurrent, Thermal, Under/Over-voltage
Indicators LED status indicators
Dimensions ~81 × 102 × 42 mm
Applications Robotics, AGV, combat robots

The Cytron MDDS30 SmartDrive 30A Dual Channel Motor Driver is a powerful and intelligent motor controller designed for medium to high-power brushed DC motors. With support for 7V–35V input and up to 30A continuous current per channel, it is ideal for robotics, AGVs, and industrial automation systems.

This driver stands out with its multiple control modes (RC, PWM, analog, UART) and built-in smart features like regenerative braking and protection systems, making it highly versatile for both hobby and professional applications.

Key Features:

High Power Dual Channel

  • Controls 2 brushed DC motors independently or in mixed mode
  • 30A continuous current per channel
  • Up to 80A peak current (short duration)

Wide Voltage Range

  • Operating voltage: 7V – 35V DC
  • Supports LiPo, SLA and DC power systems

Multiple Control Modes

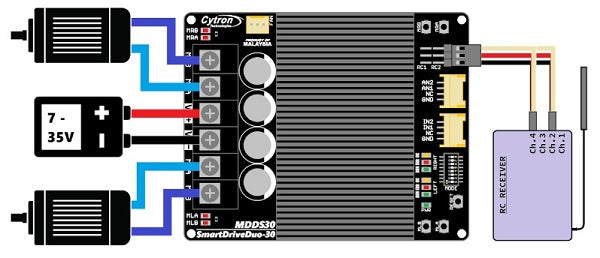

  • RC (Radio Control)
  • PWM + Direction (MCU control)
  • Analog (joystick/potentiometer)
  • UART serial communication

Smart Features

  • Regenerative braking for energy efficiency

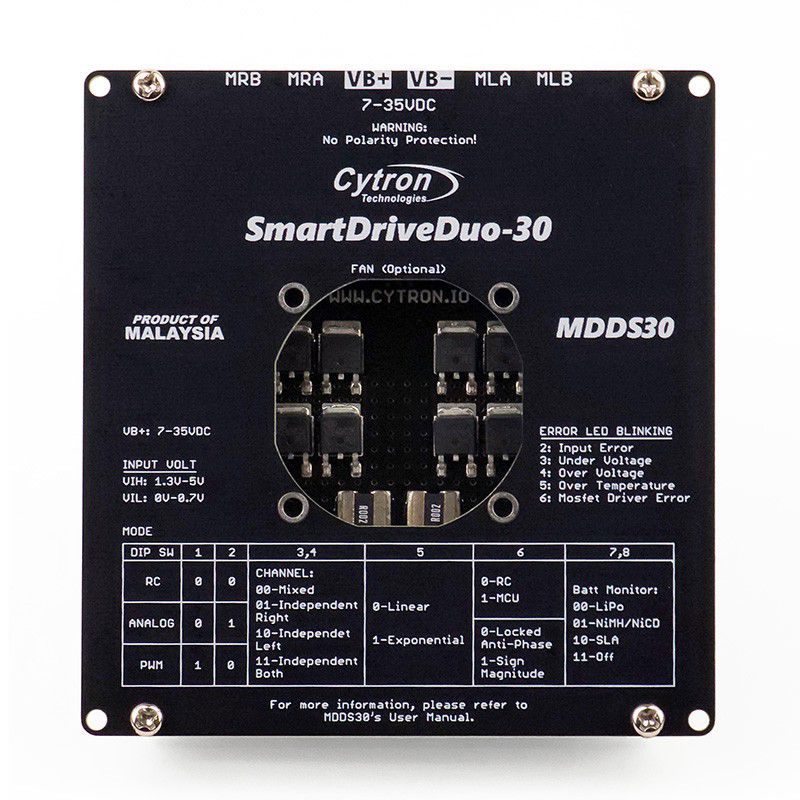

  • Configurable modes via DIP switches
  • Mixed mode for differential drive robots

Quiet & Efficient Operation

  • MOSFET switching at ~18kHz (silent operation)

Indicators & Controls

  • LED indicators for:
  • Error
  • Overcurrent
  • Voltage warnings
  • Onboard test buttons for quick operation

Protection Features

  • Overcurrent protection
  • Thermal protection
  • Under/over-voltage protection
  • Battery low-voltage warning

Applications

  • Mobile robots & differential drive robots
  • AGVs (Automated Guided Vehicles)
  • Combat robots
  • Electric carts & robotic vehicles
  • Industrial automation systems
  • Heavy-duty DIY robotics projects

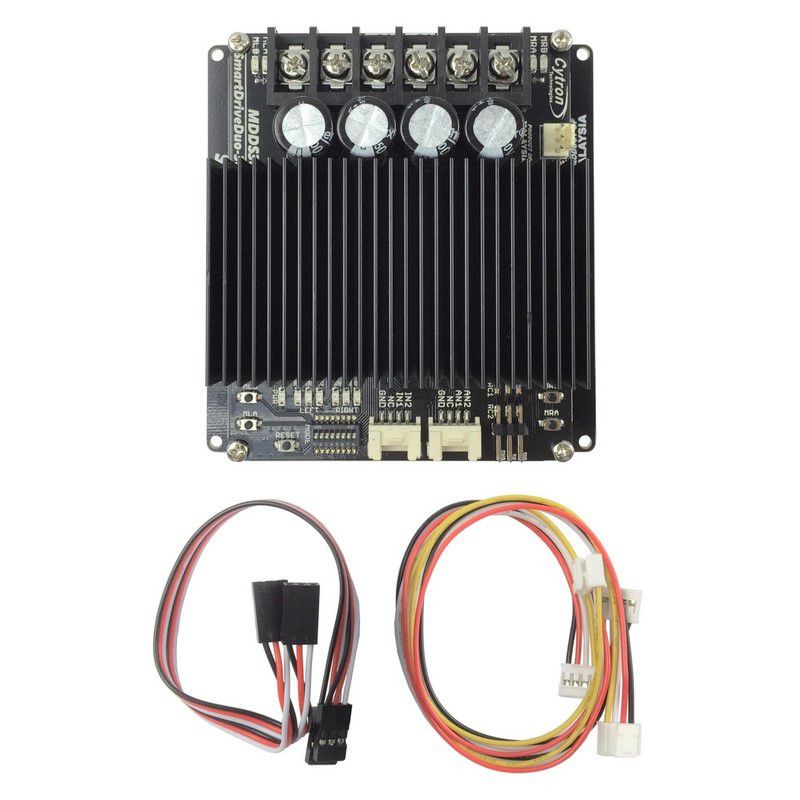

Packing List Includes:

  • 1 x Cytron 30A 7V-35V Smart DC Motor Driver MDDS30

The product has a warranty for 1 Months against manufacturing defects only.

  • However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
