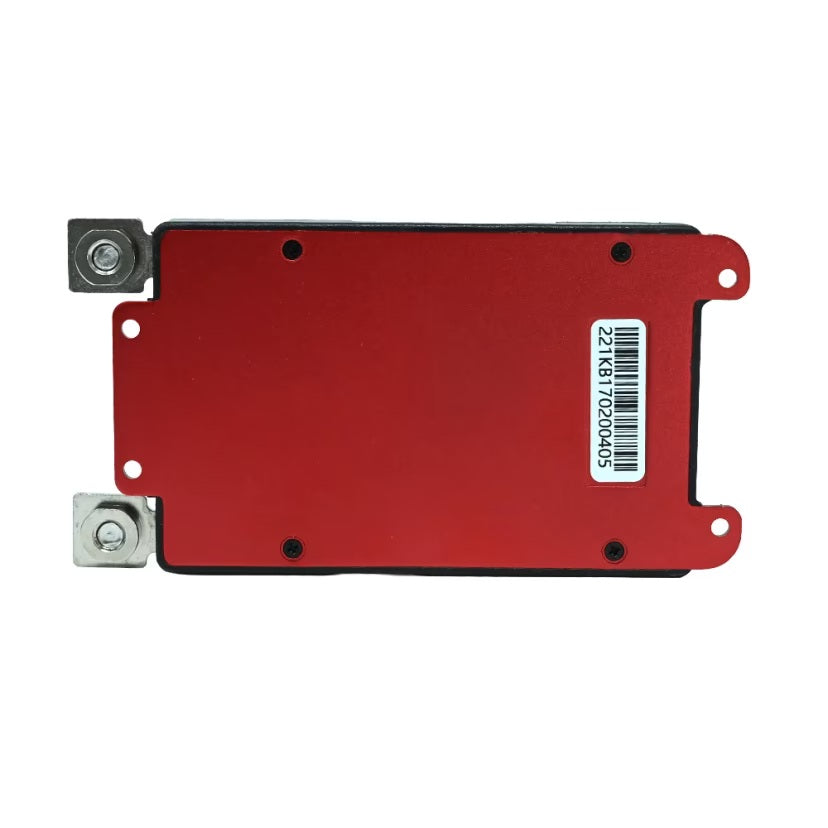

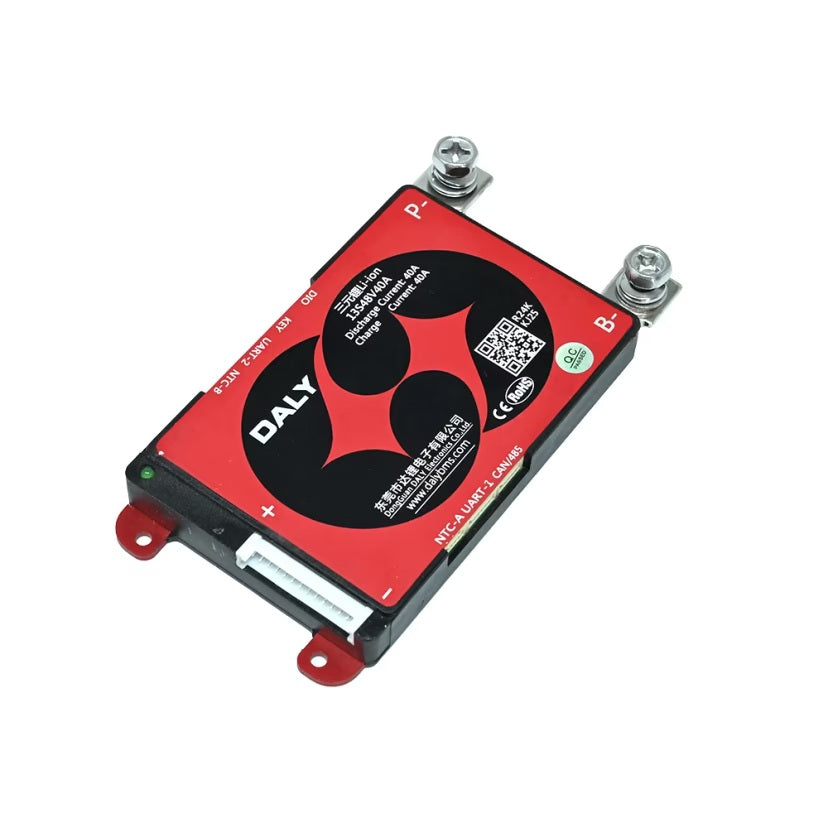

DALY Li-ion/NMC 13S 40A Smart Battery BMS

DALY Li-ion/NMC 13S 40A Smart Battery BMS

Availability: Out of stock
₹ 2,750.00 (Inc.GST)
₹ 2,750.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

7920008

Short Description:
  • Charge Voltage (V) : 48.1
  • Charge Current (A) : 40
  • Balance Current (mA) : 30±5
  • Working Current (uA) : 10
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model DALY Smart BMS 13S 40A
Battery Type Lithium-ion (NMC/Li-ion)
Cell Configuration 13S
Nominal Battery Voltage 48.1 V
Maximum Charge Voltage 54.6 V
Continuous Charge Current 40 A
Continuous Discharge Current 40 A
Overcurrent Protection 60 ± 1.2 A
Cell Overcharge Protection 4.25 ± 0.05 V/cell
Cell Over-discharge Protection 2.70 ± 0.05 V/cell
Balance Start Voltage 3.7 V
Temperature Monitoring Dual NTC temperature sensors
Dimensions 123 × 65 × 14 mm
Weight 170–210 g
Output Cable 10 AWG × 100 mm
Balance Cable 24 AWG × 450 mm
Operating Temperature -20°C to +70°C

The DALY Li-ion/NMC 13S 40A Smart Battery BMS is an intelligent battery management system designed for 13S (48 V nominal) lithium-ion battery packs. It provides 40A continuous charge and discharge capability, passive cell balancing, comprehensive protection features, and optional Bluetooth, UART, CAN, and RS485 communication for real-time battery monitoring and parameter configuration. Its compact design and advanced safety functions make it suitable for e-mobility, energy storage, and industrial battery applications.

Key Features:

  • Supports 13-series (13S) Lithium-ion (NMC) battery packs
  • Designed for 48 V nominal battery systems
  • 40 A continuous charging and discharging current
  • Intelligent battery monitoring via Bluetooth App (optional)
  • Supports UART, CAN, and RS485 communication (model dependent)
  • Real-time monitoring of :
  • Individual cell voltage
  • Pack voltage
  • Charge/discharge current
  • Battery temperature
  • State of Charge (SOC)
  • Alarm and fault status
  • Passive cell balancing for improved battery consistency
  • Adjustable protection parameters through the Smart BMS application
  • Low power consumption
  • Common-port design for charging and discharging
  • Compatible with Android and iOS (Bluetooth version)

Packing List Includes:

  • 1 × DALY Li-ion 13S 40A Smart Battery BMS

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
