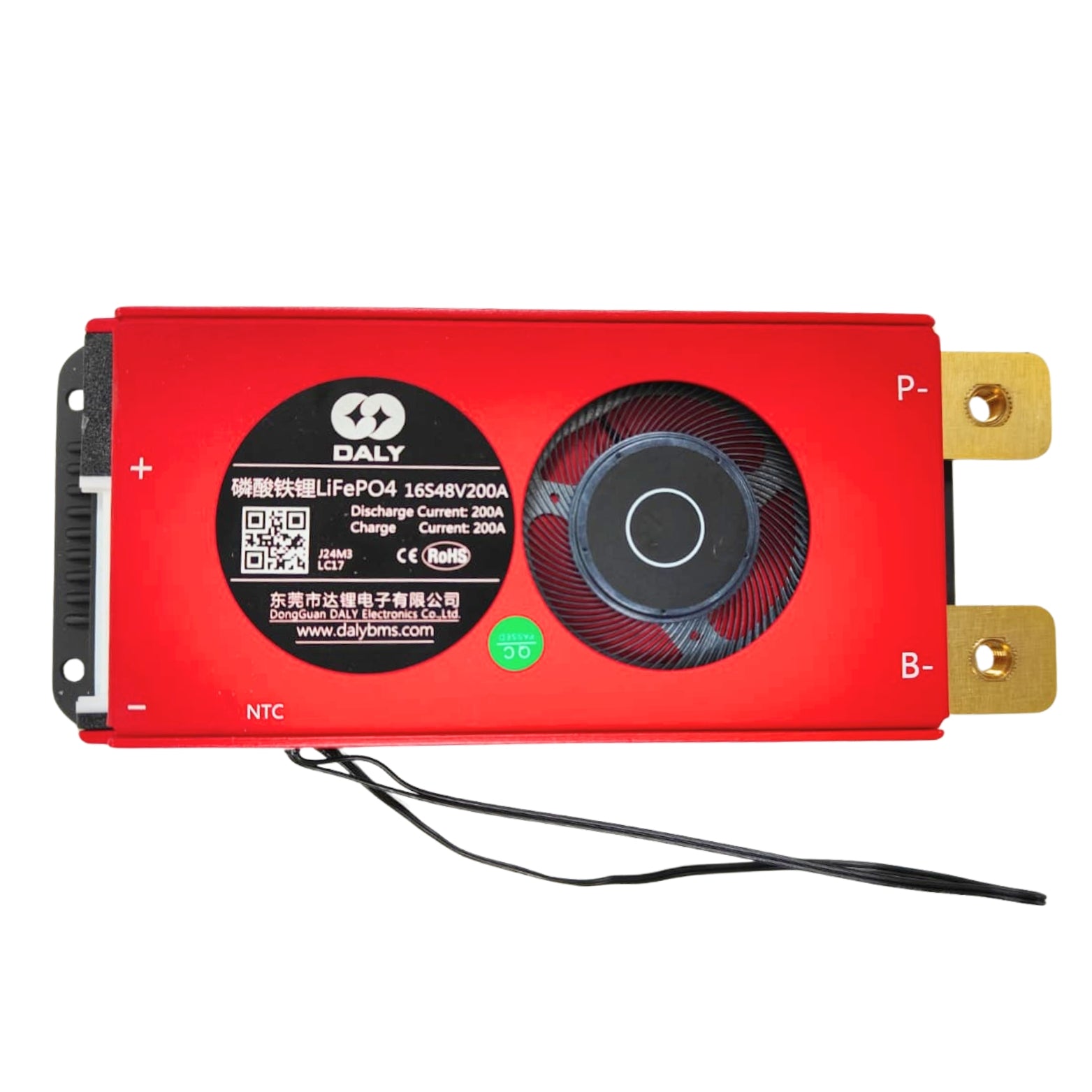

DALY LiFePO4 16S 200A Smart Battery BMS

DALY LiFePO4 16S 200A Smart Battery BMS

Availability: Out of stock
₹ 5,200.00 (Inc.GST)
₹ 5,200.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

7920046

Short Description:
  • Charge Voltage (V) : 51.2
  • Charge Current (A) : 200
  • Balance Current (mA) : 30±5
  • Working Current (uA) : 100
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model DALY Smart BMS 16S 200A
Battery Chemistry LiFePO4 (Lithium Iron Phosphate)
Battery Configuration 16 Cells in Series (16S)
Nominal Battery Voltage 51.2 V
Full Charge Voltage 58.4 V
Continuous Charge Current 200 A
Continuous Discharge Current 200 A
Peak Discharge Current Up to 400–600 A
Cell Balancing Passive Balancing
Balancing Current 100 ± 30 mA
Temperature Sensors NTC Temperature Sensors
Operating Temperature Charging: 0°C to +55°C; Discharging: −20°C to +70°C
Protection Rating Waterproof, dustproof, vibration-resistant construction
Dimensions Approx. 164 × 66 × 21 mm
Weight Approx. 1 kg

The DALY LiFePO4 16S 200A Smart Battery BMS is a high-current intelligent battery management system designed for 51.2V (16S) LiFePO4 battery packs. It provides 200 A continuous charge and discharge capability, 100 ± 30 mA passive cell balancing, advanced protection functions, and optional Bluetooth, UART, CAN, and RS485 communication for real-time monitoring. It is ideal for high-power applications including industrial energy storage, electric vehicles, solar systems, marine batteries, and commercial lithium battery solutions.

Key Features:

  • Designed for 16S LiFePO4 battery packs (51.2V nominal)
  • 200 A continuous charge and discharge capability
  • High-current MOSFET design for powerful load handling
  • Intelligent battery monitoring through Bluetooth, UART, CAN, or RS485 communication
  • Real-time monitoring of:
  • Individual cell voltage
  • Total battery voltage
  • Charge/discharge current
  • State of Charge (SOC)
  • Battery temperature
  • Fault and protection status
  • Passive cell balancing to improve battery pack consistency
  • Supports inverter and external communication protocols (CAN/RS485 versions)
  • Suitable for high-power energy storage and industrial applications

Packing List Includes:

  • 1 × DALY LiFePO4 16S 200A Smart Battery BMS

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
