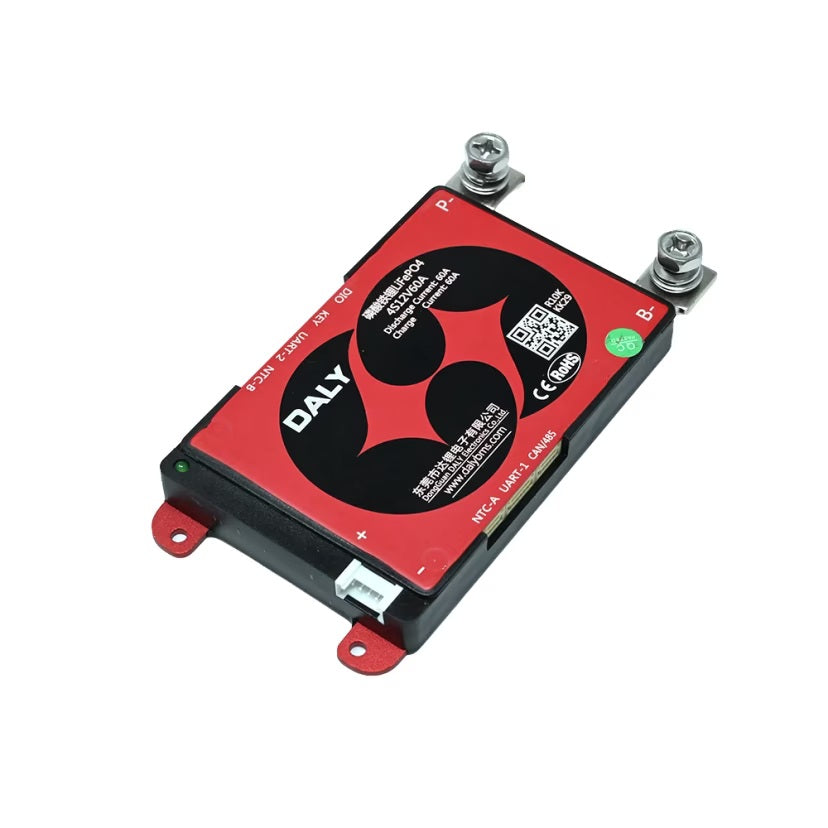

DALY LiFePO4 4S 60A Smart Battery BMS

DALY LiFePO4 4S 60A Smart Battery BMS

Availability: Out of stock
₹ 2,620.00 (Inc.GST)
₹ 2,620.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

7920014

Short Description:
  • Charge Voltage (V) : 12.8
  • Charge Current (A) : 60
  • Balance Current (mA) : 30±5
  • Working Current (uA) : 100
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model DALY Smart BMS 4S 60A
Battery Type LiFePO4 (Lithium Iron Phosphate)
Cell Configuration 4S
Nominal Battery Voltage 12.8 V
Maximum Charge Voltage 14.6 V
Continuous Charge Current 60 A
Continuous Discharge Current 60 A
Peak Overcurrent Protection 70 ± 10 A (charge), 180 ± 30 A (discharge protection)
Cell Overcharge Protection 3.65–3.75 ± 0.05 V/cell
Cell Over-discharge Protection 2.20–2.30 ± 0.05 V/cell
Balance Start Voltage 3.20–3.40 V/cell
Balance Current 75–100 mA
Temperature Monitoring Dual NTC temperature sensors
Dimensions Approximately 75 × 48 × 14 mm (standard version)
Weight Approximately 105–160 g
Output Cable 10 AWG × 130 mm
Balance Cable 24 AWG × 300 mm
Operating Temperature –20°C to +70°C

The DALY LiFePO4 4S 60A Smart Battery BMS is an intelligent battery management system designed for 4S (12.8 V nominal) LiFePO4 battery packs. It delivers 60 A continuous charge and discharge capability, passive cell balancing, and comprehensive protection against over-voltage, under-voltage, over-current, short-circuit, and temperature faults. Optional Bluetooth, UART, CAN, and RS485 communication enables real-time battery monitoring, diagnostics, and parameter configuration, making it ideal for solar energy storage, RVs, marine batteries, portable power stations, UPS systems, and other 12 V LiFePO4 battery applications.

Key Features:

  • Supports 4S LiFePO4 (12.8 V nominal) battery packs
  • 60 A continuous charging and discharging current
  • Intelligent battery monitoring via optional Bluetooth App
  • Supports UART, CAN, and RS485 communication (model dependent)
  • Passive cell balancing for improved cell consistency
  • Real-time monitoring of:
  • Individual cell voltage
  • Total battery voltage
  • Charge/discharge current
  • Battery temperature
  • State of Charge (SOC)
  • Protection and fault status
  • Adjustable protection parameters using DALY Smart BMS software
  • Low standby power consumption
  • Common-port charging and discharging design
  • Compatible with Android and iOS when equipped with the optional Bluetooth module
  • Compact, lightweight design for easy battery pack integration.

Packing List Includes:

  • 1 × DALY LiFePO4 4S 60A Smart Battery BMS

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
