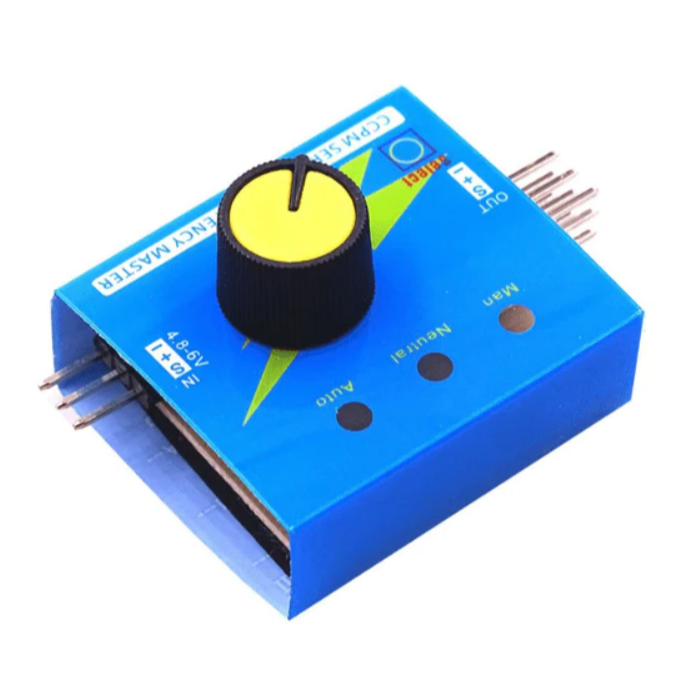

Digital Servo Tester ESC RC Consistency PPM Generator

Digital Servo Tester ESC RC Consistency PPM Generator

Availability: Out of stock
₹ 129.00 (Inc.GST)
₹ 129.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2971002

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Device Type Digital Servo & ESC Tester / PPM Generator
Input Voltage 4.8V – 6.0V DC
Operating Modes Manual Mode, Neutral Mode, Automatic Mode
Signal Output PWM (1–2 ms pulse width)
Output Channels 3 Channels (CH1, CH2, CH3)
Compatibility Servos, ESCs, PPM-based devices
Frequency 50 Hz standard RC signal
Display Type LED / Digital knob indicator (depends on model)
Load Capacity Can test up to 3 servos simultaneously
Case Material Plastic ABS housing
Connector Standard 3-pin (Signal + VCC + Ground)
Applications Servo testing, ESC calibration, RC maintenance, robotics

The Xrobo.in versatile digital servo tester and PPM generator designed for checking servo performance, ESC calibration, and signal output consistency. It supports manual, neutral, and automatic modes, making it ideal for RC hobbyists, robotics testing, and troubleshooting motion-control systems.

The product has a warranty for 1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
