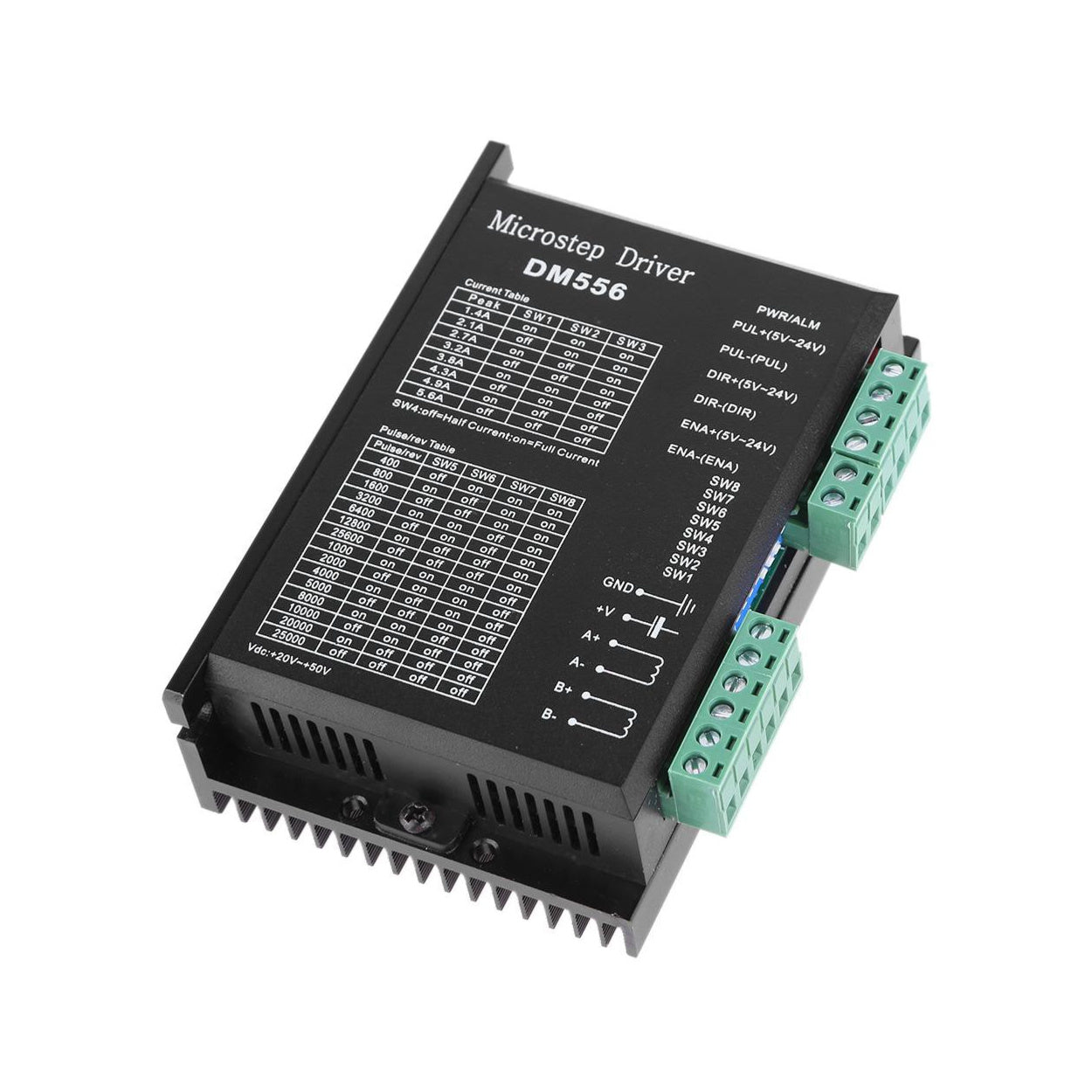

DM556 Digital Stepper Motor Driver (20–50V DC, 1.0–5.6A)

DM556 Digital Stepper Motor Driver (20–50V DC, 1.0–5.6A)

Availability: In stock
₹ 885.00 (Inc.GST)
₹ 885.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270053

Short Description:
  • input voltage : 20V to 50V DC
  • Compatible : NEMA 17, NEMA 23, and NEMA 24 motors
  • Output Current : 5.6A
  • Microstepping : Full step, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128


  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Name DM556 Digital Stepper Motor Driver
Driver Type Digital Microstepping Driver
Input Voltage 20–50 VDC
Output Current 1.0 – 5.6 A (Peak)
Microstep Resolution 400 to 25,600 steps/rev
Control Signal PUL (Pulse), DIR (Direction), ENA (Enable)
Signal Voltage 5V TTL compatible
Suitable Motor Type 2-phase and 4-phase hybrid stepper motors
Suitable Motor Size NEMA 17, NEMA 23, NEMA 24, NEMA 34
Operating Temperature 0°C to +50°C
Storage Temperature –20°C to +70°C
Weight Approx. 280 g
Dimensions Approx. 118 × 75 × 34 mm

The Xrobo.in DM556 Digital Stepper Motor Driver offers smooth motion, low noise, and precise microstepping control with a 20–50V DC input and up to 5.6A output. Ideal for NEMA17–NEMA24 motors, it provides reliable performance for CNC machines, robotics, and industrial automation.

Application Areas:

  • CNC routers and milling machines
  • Laser cutting and engraving machines
  • Industrial automation systems
  • Robotics and motion control
  • Pick-and-place machines
  • 3D printers and positioning systems

Packing List Includes:

1 x DM556 Stepper Motor Driver

The product has a warranty for 1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
