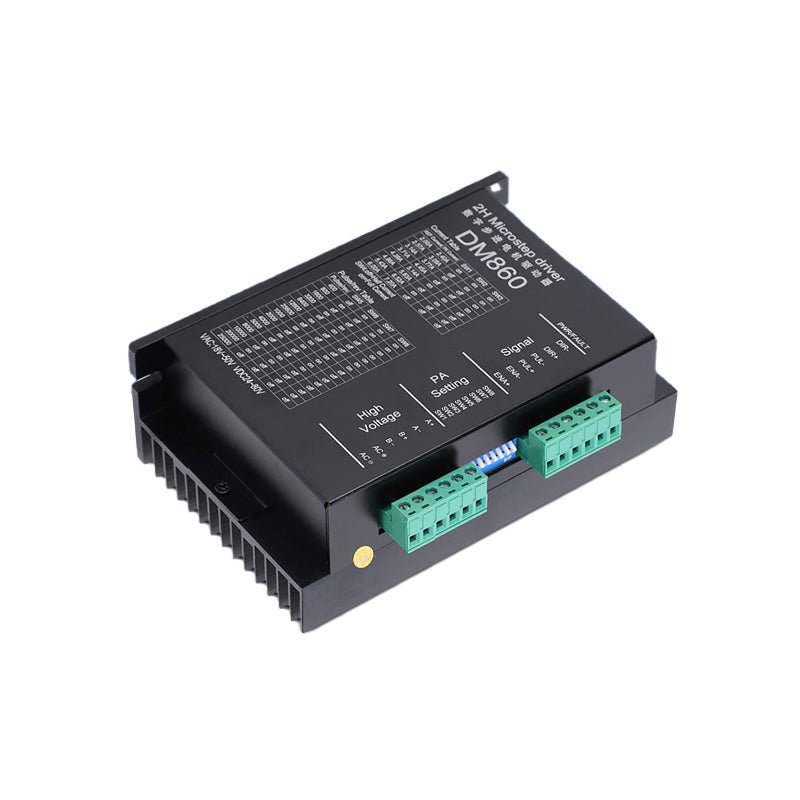

DM860H Stepper Motor Driver (24–80V DC, 2.4–7.8A)

DM860H Stepper Motor Driver (24–80V DC, 2.4–7.8A)

Availability: Out of stock
₹ 1,510.00 (Inc.GST)
₹ 1,510.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270052

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Model DM860H Stepper Motor Driver
Input Voltage 24–80V DC
Output Current 2.4–7.8A (adjustable via DIP switches)
Motor Compatibility 2-phase / 4-phase stepper motors (NEMA23, NEMA24, NEMA34)
Microstepping Resolution 400 to 51,200 steps/rev
Control Signal PUL (Pulse), DIR (Direction), ENA (Enable)
Signal Voltage 5–24V compatible (Arduino, PLC, CNC controllers)
Protection Features Over-voltage, over-current, over-temperature
Cooling Aluminum heat-sink body + air ventilation slots
Applications CNC routers, mills, laser cutters, industrial automation

The Xrobo.in DM860H Stepper Motor Driver is a high-performance digital driver designed for large stepper motors. With a wide 24–80V DC input range and up to 7.8A output, it delivers powerful torque, smooth microstepping, and stable performance—ideal for CNC machines, robotics, and heavy-duty automation systems.

The product has a warranty for 6 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
