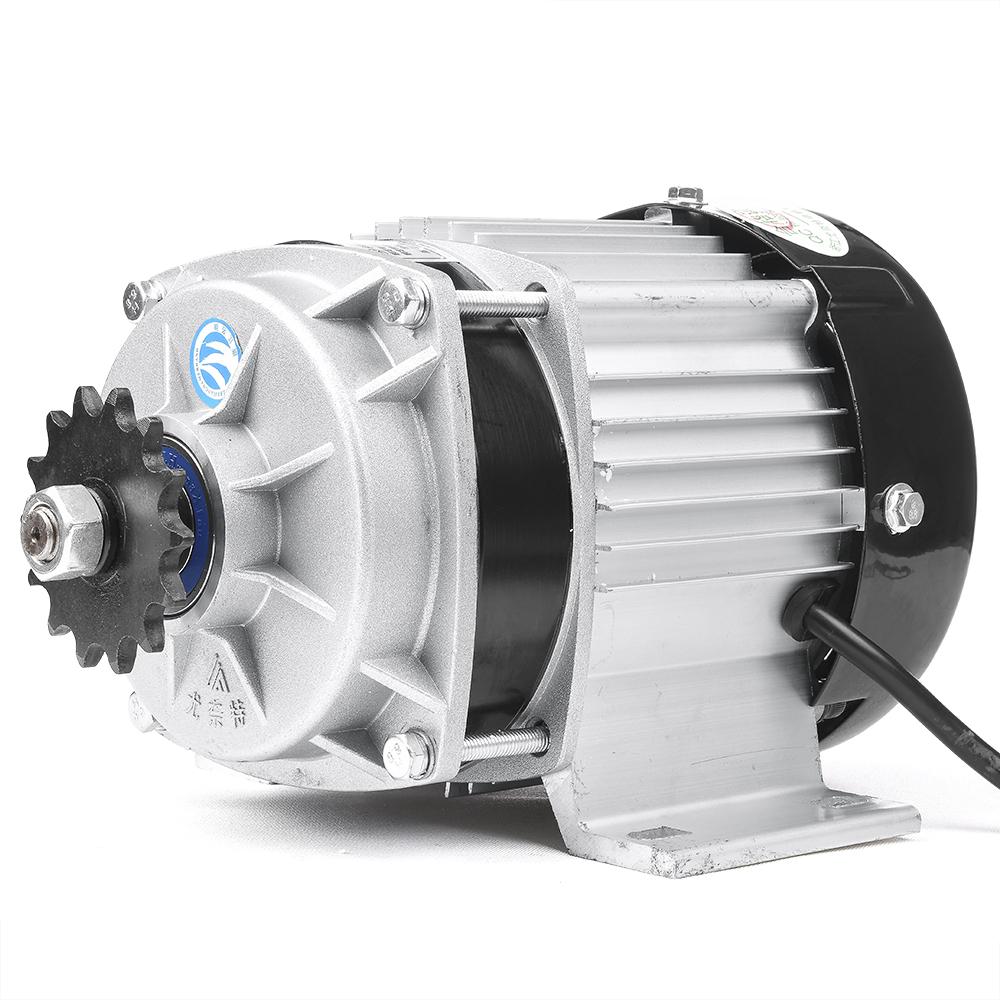

E-BIKE 1418ZXF 48V 450RPM 500W BLDC GEARED MOTOR

E-BIKE 1418ZXF 48V 450RPM 500W BLDC GEARED MOTOR

Availability: Pre-order
₹ 5,800.00 (Inc.GST)
₹ 5,800.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970007

View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Model 1418ZXF / BM1418ZXF
Motor Type Brushless DC (BLDC) Geared Motor
Rated Voltage 48 V DC
Rated Power 500 W
Rated Speed 450 RPM
No-Load Speed 516 RPM
Rated Current 13.4 A
No-Load Current 4.0 A
Rated Torque 102 kg-cm
Gear Ratio 6:1
Efficiency 80%
Phase Angle 120°
Chain Compatibility 420 Series Sprocket
Rotation CW / CCW (reversible)
Weight Approx. 4.1–5.1 kg
Cooling Air-cooled / Integrated Fan
Controller Required 48V BLDC Controller

The 48V 500W BLDC Motor is a high-power brus permanent magnet motor designed for heavy-duty electric mobility applications. With a rated speed of ~2750 RPM and significantly higher torque output, it is ideal for e-bikes, go-karts, scooters, and cargo vehicles.


Key Features:

High Power Output

  • 500W rated power (0.67 HP)
  • Suitable for heavy-load EV applications

High Torque Performance

  • Approx. 100 kg-cm torque
  • Excellent for hill climbing & load carrying

Stable Speed

  • ~450 RPM rated speed
  • ~516 RPM no-load speed

Chain Drive Compatibility

  • Pre-installed 11T sprocket (#25/#35 chain)
  • Easy integration into mechanical systems

High Current Capability

  • Rated current: ~13.4 A
  • Requires high-capacity battery & controller

Heavy-Duty Build

  • Large metal body with 4-brush design
  • Built for continuous heavy-duty use

Applications

  • E-bikes & high-power electric scooters
  • Electric carts & cargo vehicles
  • Go-karts & mini ATVs
  • Heavy robotics & automation systems
  • DIY electric vehicle conversions
  • Industrial motion systems

Packing List Includes:

1 x E-BIKE 1418ZXF 48V 450RPM 500W BLDC GEARED MOTOR

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
