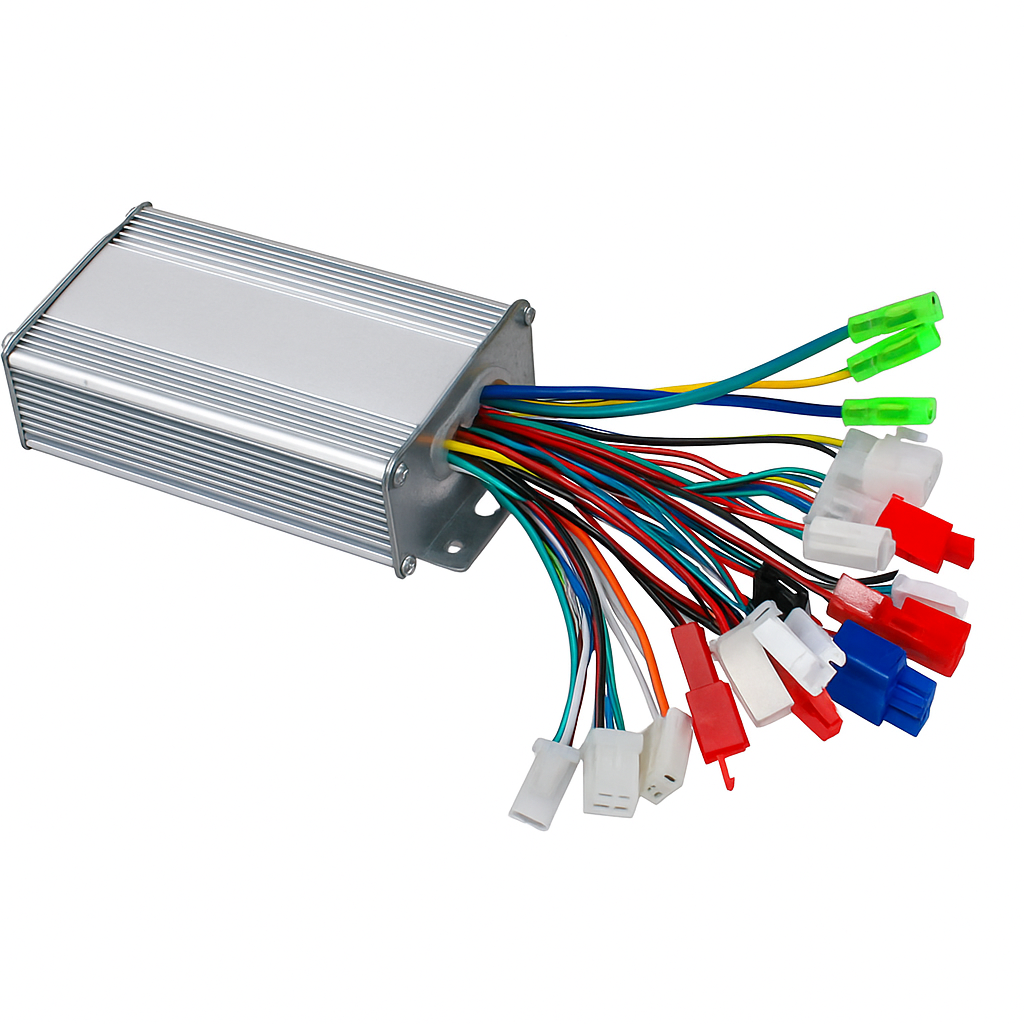

E-Bike BM1418ZXF 48V 500W (BLDC) Speed Controller

E-Bike BM1418ZXF 48V 500W (BLDC) Speed Controller

Availability: Pre-order – Shipped within 5-10 days
₹ 1,850.00 (Inc.GST)
₹ 1,850.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970059

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Product Name BM1418ZXF BLDC Speed Controller
Motor Type Brushless DC (3-phase)
Rated Voltage 48V DC
Rated Power 500W
Max Current ~15 – 18A
Phase Type 120° electrical
Control Method PWM / Sine Wave (variant-based)
Throttle Input 1 – 4V / 0 – 5V
Motor Support Hall sensor based
Low Voltage Cutoff ~41 – 42V
Protection Features Overcurrent, thermal, short circuit
Cooling Aluminum casing
Efficiency ~85 – 92%
Applications E-bike, cargo EV, robotics



The BM1418ZXF 48V 500W BLDC Speed Controller is a high-efficiency brushless DC motor controller designed specifically for BM1418ZXF geared BLDC motors used in e-bikes, cargo tricycles, and electric mobility systems.

It controls motor operation using 3-phase electronic commutation and PWM, ensuring smooth acceleration, high efficiency, and low noise. Built for 48V systems, it supports medium-load EV applications with stable current handling and advanced protection features

Key Features:

Designed for 48V Systems

  • Optimized for 48V battery packs (Li-ion / LiFePO4)
  • Compatible with 500W BLDC motors

Advanced BLDC Control

  • 3-phase output (120° electrical phase)
  • Supports Hall sensor-based motors

Smooth & Efficient Operation

  • PWM-based control for smooth acceleration
  • High efficiency (~85–92% typical)

Protection Features

  • Overcurrent protection (~15–18A typical for 500W systems)
  • Undervoltage cutoff (~41–42V)
  • Thermal and short-circuit protection

Multi-Function Connectivity

  • Motor phase wires + Hall sensors
  • Throttle input (1–4V / 0–5V)
  • Brake cut-off
  • Reverse / speed limit / ignition lock

Packing List Includes:

1 x E-Bike BM1418ZXF 48V 500W (BLDC) Speed Controller

The product has a warranty for 1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.None
