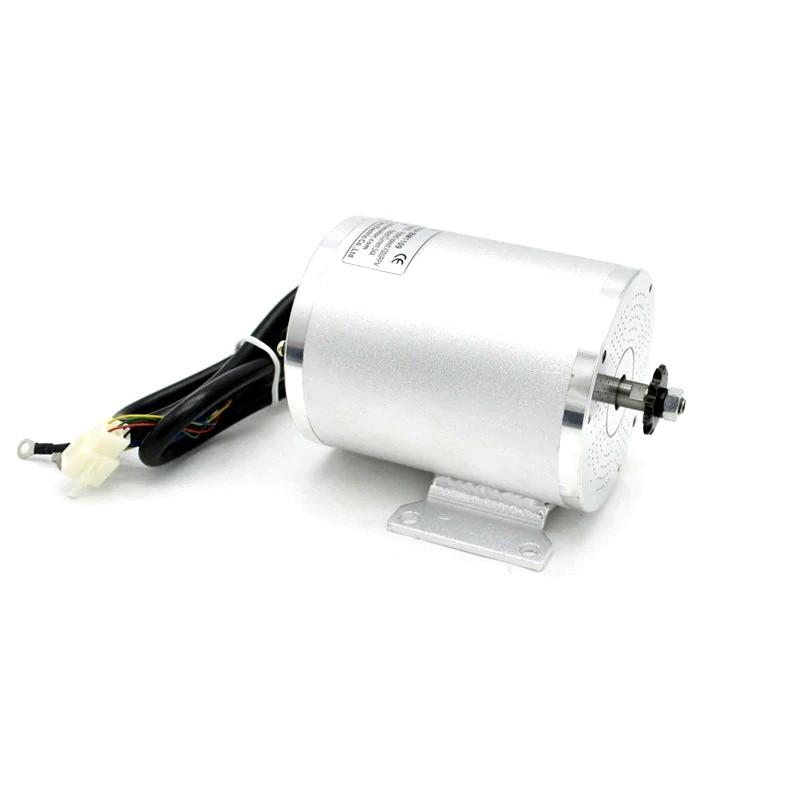

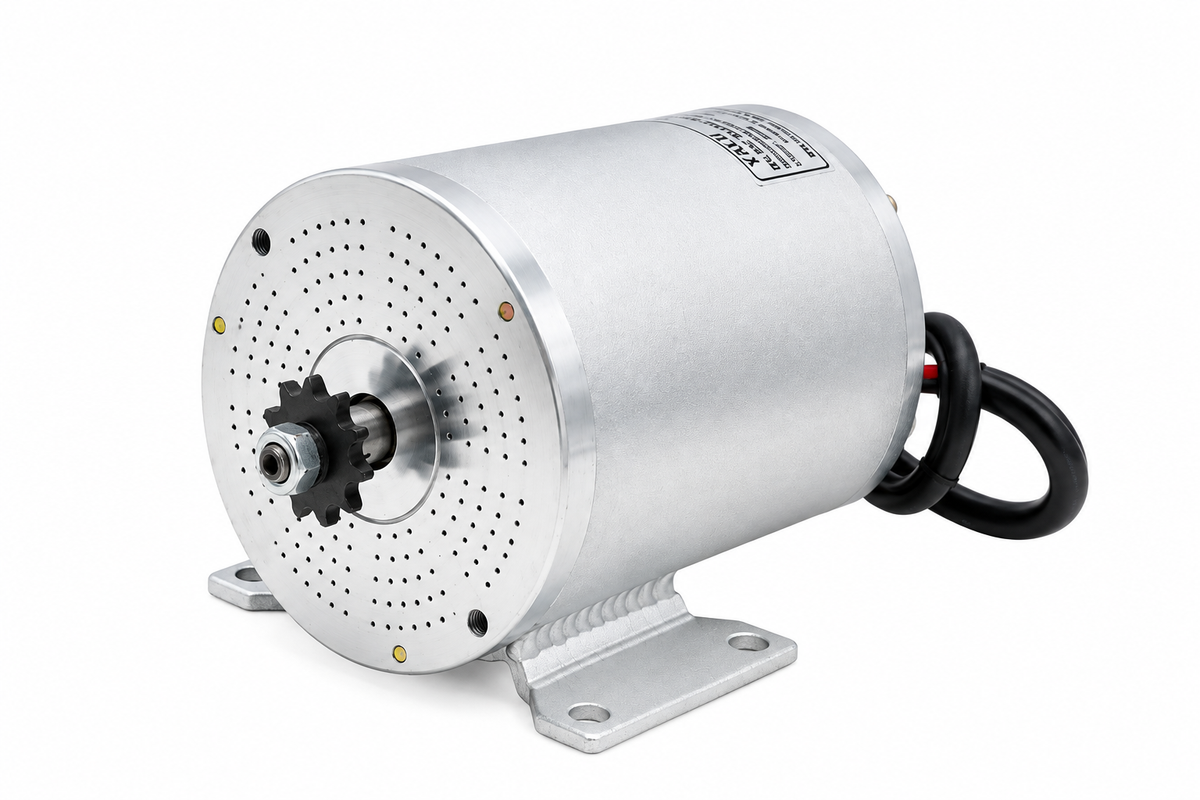

E-BIKE BM1109 48V 3500RPM 1000W DC MOTOR

E-BIKE BM1109 48V 3500RPM 1000W DC MOTOR

Availability: In stock
₹ 7,740.00 (Inc.GST)
₹ 7,740.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970039

Short Description:
  • Rated Voltage: 48V
  • Rated Power: 1000W
  • Rated Current: 21A
  • Rated Speed: 3500 RPM
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 3 Month Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information

Specification

Details

Model

BM1109

Motor Type

Brushless DC (BLDC) Motor

Rated Voltage

48V DC

Rated Power

1000W

Rated Current

20.8A

Rated Speed

3500 RPM

Weight

Approx. 3.7 kg

The MY1109 48V 1000W BLDC Motor is a high-power electric drive solution designed for performance e-bikes, scooters, and heavy-duty EV applications. With a rated speed of ~3500 RPM and strong torque output, it delivers excellent acceleration, load-carrying capability, and hill-climbing performance.


Key Features:

High Power Output

  • 1000W rated power (1kW)
  • Suitable for heavy-load EV applications

High Torque Performance

  • Approx. 2.5 – 5.0 N·m torque
  • Excellent for hill climbing & load carrying

Stable Speed

  • ~2500–3500 RPM rated speed
  • ~3500 RPM no-load speed

Chain Drive Compatibility

  • 11T / 13T sprocket (T8F or #25 chain)
  • Easy integration into mechanical systems

High Current Capability

  • Continuous current: ~21A
  • Peak current: up to 45A (short bursts)

Heavy-Duty Build

  • Strong metal body with high-grade magnets
  • Weight ~3.7 kg

Applications

  • E-bikes & high-power electric scooters
  • Electric carts & cargo vehicles
  • Go-karts & mini ATVs
  • Heavy robotics & automation systems
  • DIY electric vehicle conversions
  • Industrial motion systems

Packing List Includes:

1 x E-BIKE BM1109 48V 3500RPM 1000W DC MOTOR

The product has a warranty for 3 Month against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
