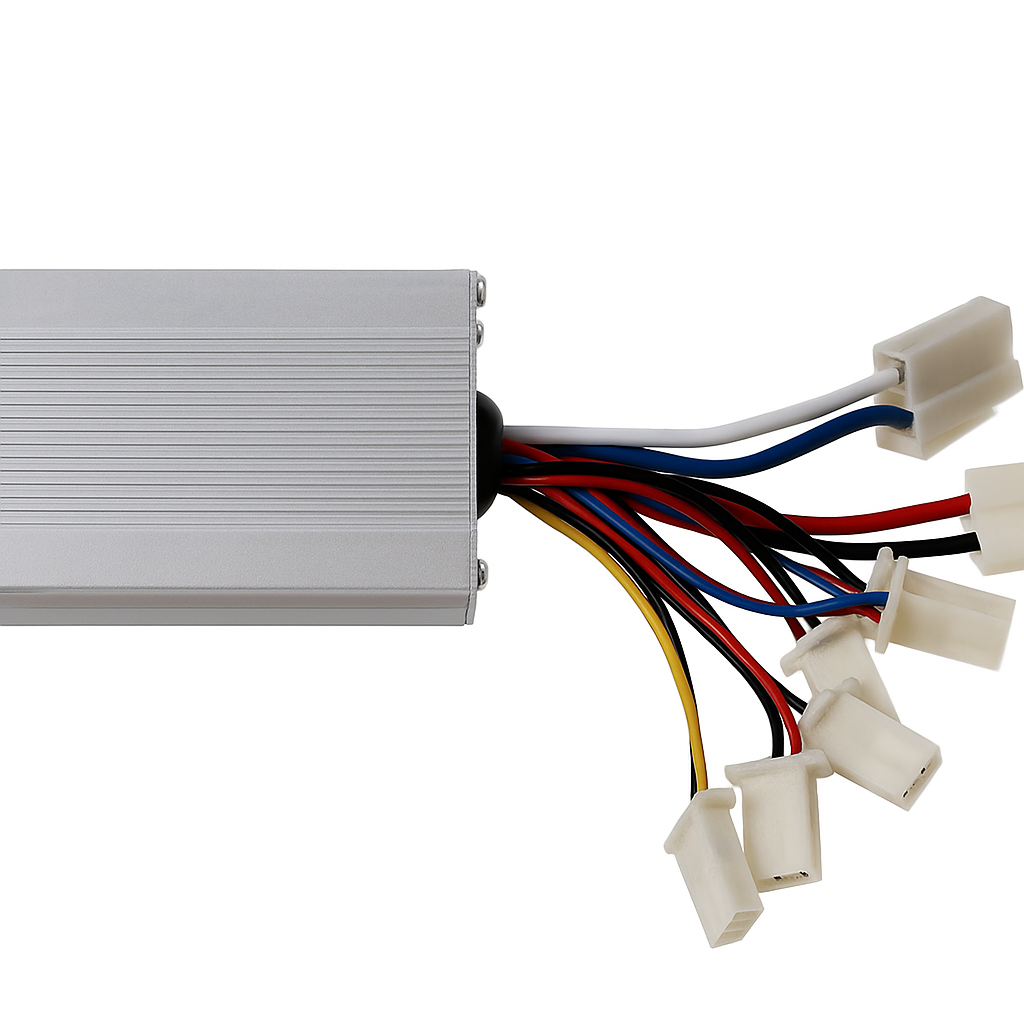

E-bike MY1016 48v 800W Dc Speed Controller

E-bike MY1016 48v 800W Dc Speed Controller

Availability: In stock (Shipped within 2-3 days)
₹ 1,416.00 (Inc.GST)
₹ 1,416.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970056

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Product Name MY1016 DC Speed Controller
Motor Type Brushed DC Motor Controller
Rated Voltage 48V DC
Rated Power 800W
Max Current ~30 – 33A
Control Method PWM (Pulse Width Modulation)
Throttle Input 1 – 4V (Hall / analog)
Brake Input Supported (cut-off)
Under Voltage Protection ~42V
Direction Control Forward / Reverse (optional)
Cooling Passive (Aluminum casing)
Weight ~220 – 250 g
Connections Motor, battery, throttle, brake, light, lock
Efficiency High (~85–92%)
Applications E-bike, scooter, robotics

The MY1016 48V 800W DC Speed Controller is a high-power brushed motor controller designed for 48V electric bike and scooter systems. It efficiently controls speed, acceleration, and braking of 800W DC motors, making it suitable for high-performance EV builds.

Using PWM (Pulse Width Modulation), it ensures smooth throttle response, reduced power loss, and improved battery efficiency. It also includes multiple safety protections and wiring interfaces for complete EV integration.

Key Features:

High Voltage & Power Support

  • Designed for 48V DC systems
  • Supports up to 800W motors

PWM Speed Control

  • Smooth 0–100% speed control
  • Improves efficiency and battery life

Multi-Function Inputs

  • Throttle input (1–4V)
  • Brake cut-off support
  • Reverse / forward (model dependent)

Protection System

  • Current limiting (~30–33A)
  • Undervoltage protection (~42V)
  • Short-circuit & overload protection

Applications

  • E-bikes (48V 800W systems)
  • Electric scooters & high-power EVs
  • Cargo vehicles & delivery EVs
  • Robotics & AGV platforms
  • DIY EV conversion kits

Packing List Includes:

1 x E-bike MY1016 48v 800W Dc Speed Controller

The product has a warranty for 1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.None
