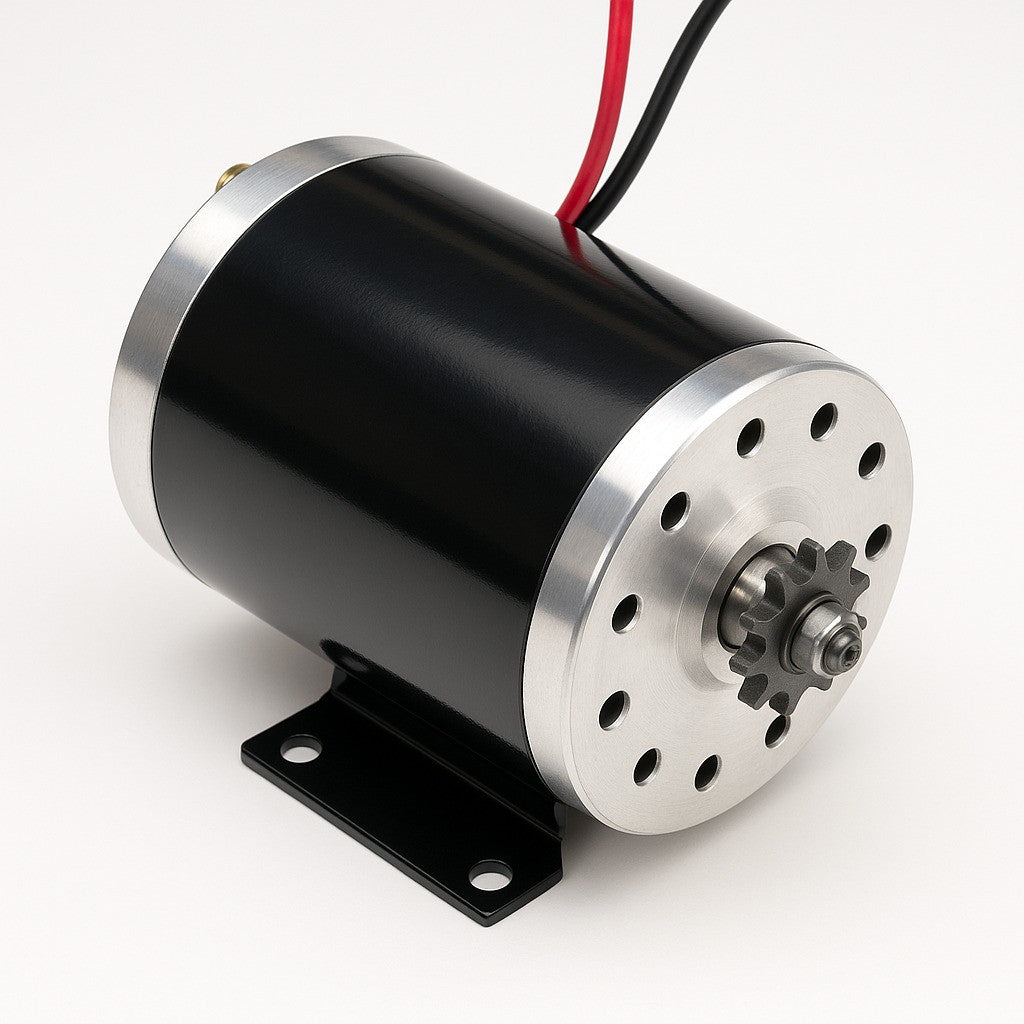

E-BIKE MY1020 24V 2750RPM 500W DC MOTOR

E-BIKE MY1020 24V 2750RPM 500W DC MOTOR

Availability: In stock
₹ 3,080.00 (Inc.GST)
₹ 3,080.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970012

Short Description:
  • 24V brushed DC motor
  • 500W power output
  • 2750 RPM rated speed
  • Strong metal body with Magnet

Select below products to add together

  • E-bike MY1016 48v 800W Dc Speed Controller
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Model MY1020
Motor Type Brushed DC (Permanent Magnet, 4-brush)
Rated Voltage 24V DC
Rated Power 500W
Rated Speed ~2500 – 2750 RPM
No Load Speed ~3000 RPM
Rated Torque ~1.8 – 2.0 N·m
Rated Current ~25 – 27A
No Load Current ~2.5 – 3A
Sprocket 11 Teeth (#25 / #35 Chain)
Shaft Diameter ~10 mm
Weight ~4 – 4.1 kg
Efficiency ~70 – 78%
Applications E-bike, cart, go-kart, EV

The MY1020 24V 500W DC Motor is a high-power brushed permanent magnet motor designed for heavy-duty electric mobility applications. With a rated speed of ~2750 RPM and significantly higher torque output, it is ideal for e-bikes, go-karts, scooters, and cargo vehicles.


Key Features:

High Power Output

  • 500W rated power (0.67 HP)
  • Suitable for heavy-load EV applications

High Torque Performance

  • Approx. 1.8 – 2.0 N·m torque
  • Excellent for hill climbing & load carrying

Stable Speed

  • ~2500–2750 RPM rated speed
  • ~3000 RPM no-load speed

Chain Drive Compatibility

  • Pre-installed 11T sprocket (#25/#35 chain)
  • Easy integration into mechanical systems

High Current Capability

  • Rated current: ~25–27A
  • Requires high-capacity battery & controller

Heavy-Duty Build

  • Large metal body with 4-brush design
  • Built for continuous heavy-duty use

Applications

  • E-bikes & high-power electric scooters
  • Electric carts & cargo vehicles
  • Go-karts & mini ATVs
  • Heavy robotics & automation systems
  • DIY electric vehicle conversions
  • Industrial motion systems

Packing List Includes:

1 x E-BIKE MY1020 24V 2750RPM 500W DC MOTOR

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
