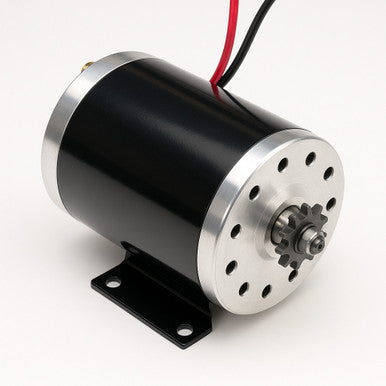

E-BIKE MY1020 48V 2750RPM 1000W DC Motor

E-BIKE MY1020 48V 2750RPM 1000W DC Motor

Availability: Pre-order – Shipped within 15-20 days
₹ 5,800.00 (Inc.GST)
₹ 5,800.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970018

Short Description:
  • 48V brushed DC motor
  • 1000W power output
  • 2750 RPM rated speed
  • Strong metal body with Magnet
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Model MY1020
Motor Type Brushed DC Motor
Rated Voltage 48V DC
Rated Power 1000W
Rated Speed ~2750 RPM
No Load Speed ~3100 – 3300 RPM
Rated Torque ~5 N·m
Continuous Current ~21A
Peak Current ~40–45A
Sprocket 11T / 13T (T8F / #25 chain)
Dimensions ~175 × 120 × 118 mm
Weight ~5 – 5.2 kg
Cooling Air-cooled
Applications E-bike, scooter, go-kart, EV

The MY1020 48V 1000W DC Motor is a high-power electric drive solution designed for performance e-bikes, scooters, and heavy-duty EV applications. With a rated speed of ~2750 RPM and strong torque output, it delivers excellent acceleration, load-carrying capability, and hill-climbing performance.


Key Features:

High Power Output

  • 1000W rated power (1kW)
  • Suitable for heavy-load EV applications

High Torque Performance

  • Approx. 2.5 – 5.0 N·m torque
  • Excellent for hill climbing & load carrying

Stable Speed

  • ~2500–2750 RPM rated speed
  • ~3000 RPM no-load speed

Chain Drive Compatibility

  • 11T / 13T sprocket (T8F or #25 chain)
  • Easy integration into mechanical systems

High Current Capability

  • Continuous current: ~21A
  • Peak current: up to 45A (short bursts)

Heavy-Duty Build

  • Strong metal body with high-grade magnets
  • Weight ~5–5.2 kg

Applications

  • E-bikes & high-power electric scooters
  • Electric carts & cargo vehicles
  • Go-karts & mini ATVs
  • Heavy robotics & automation systems
  • DIY electric vehicle conversions
  • Industrial motion systems

Packing List Includes:

1 x E-BIKE MY1020 24V 2750RPM 1000W DC MOTOR

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
