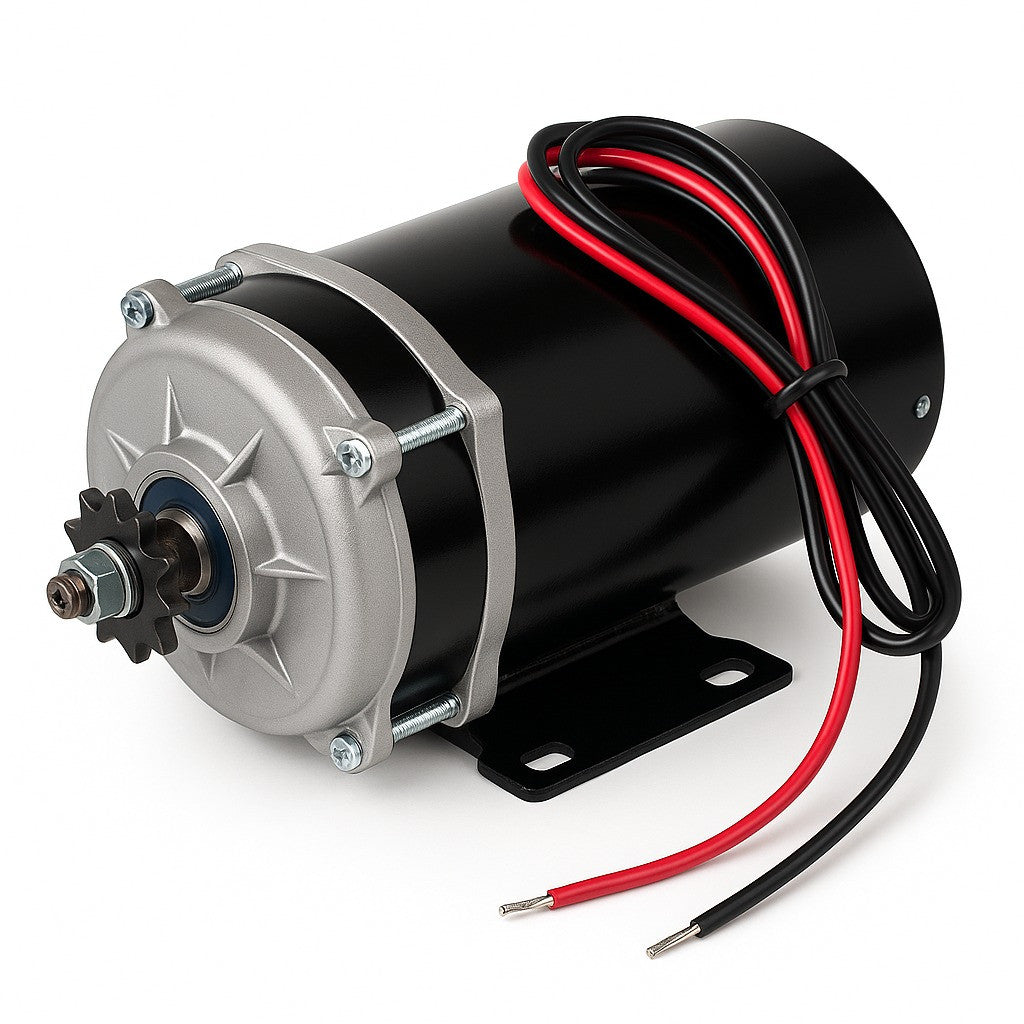

E-BIKE MY1020Z 24V 530RPM 650W DC GEARED MOTOR

E-BIKE MY1020Z 24V 530RPM 650W DC GEARED MOTOR

Availability: Pre-order – Shipped within 15-20 days
₹ 9,600.00 (Inc.GST)
₹ 9,600.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970017

Short Description:
  • 24V brushed DC motor
  • 650W power output
  • 530RPM rated speed
  • Strong metal body with Magnet
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Model MY1020Z
Motor Type Brushed DC Geared Motor
Rated Voltage 24V DC
Rated Power 650W
Base Motor Speed ~3200 RPM
No Load Speed ~3700 RPM
Gear Ratio ~6.67:1
Output Speed ~530 RPM
Rated Torque ~10 N·m
Rated Current ~16 – 22A
No Load Current ≤2.2 – 2.5A
Efficiency ≥75 – 78%
Sprocket 10 Teeth (#40 / #41 / #420 chain)
Shaft Diameter ~16 mm (keyed)
Weight ~5.4 – 5.6 kg
Rotation Reversible
Applications E-bike, cart, robotics

The MY1016Z 24V 650W DC Geared Motor is a high-power brushed DC motor with integrated gear reduction, designed for medium-speed, high-torque electric mobility applications.

With a gear ratio of ~6:1, it reduces the internal motor speed (~3200 RPM) to a practical ~530 RPM output, delivering strong torque and efficient performance for e-bikes, carts, and scooters.

Key Features:

High Power Output

  • 650W rated power
  • Suitable for heavy-duty EV applications

Optimized Speed & Torque

  • Output speed: ~530 RPM
  • Gear ratio: ~6:1

Strong Torque Performance

  • Rated torque: ~90 kg·cm (~8.8 N·m)
  • High starting torque for load handling

High Current Capability

  • Full-load current: ~34.7A
  • No-load current: ~2.8A

Chain Drive Ready

  • 10T sprocket (chain compatible)
  • Easy integration into EV drivetrains

Heavy-Duty Build

  • Large metal housing with gearbox + ball bearings
  • Weight ≈ 7.6 – 7.8 kg

Applications

  • E-bikes & electric scooters (high torque builds)
  • Electric carts & cargo vehicles
  • Go-karts & mini EVs
  • Heavy robotics & automation systems
  • Industrial conveyors & motion systems

Packing List Includes:

1 x E-BIKE MY1020Z 24V 530RPM 650W DC GEARED MOTOR

The product has a warranty for 6 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
