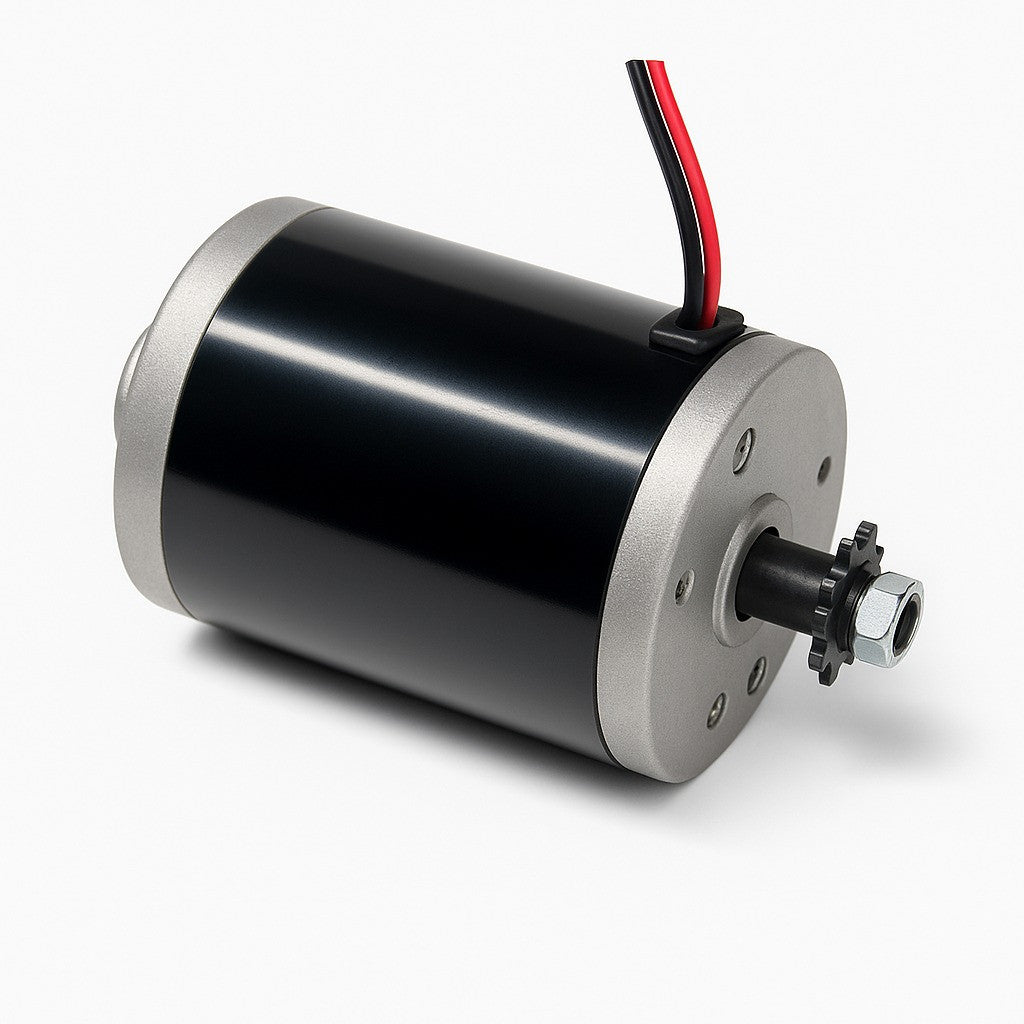

E-BIKE MY6812 12V 2750RPM 100W DC MOTOR

E-BIKE MY6812 12V 2750RPM 100W DC MOTOR

Availability: Pre-order – Shipped within 15-20 days
₹ 944.00 (Inc.GST)
₹ 750.00 ₹ 944.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970009

Short Description:
  • 12V brushed DC motor
  • 100W power output
  • 2750 RPM rated speed
  • Strong metal body with Magnet

Select below products to add together

  • E-bike MY1016 24v 250W Dc Speed Controller
  • E-bike MY1016 24v 350W Dc Speed Controller
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Model MY6812
Motor Type Brushed DC (Permanent Magnet)
Rated Voltage 12V DC
Rated Power 100W
Rated Speed ~2750 RPM
No Load Speed ~3550 RPM
Rated Torque ~0.45 N·m
Rated Current < 7A
No Load Current < 0.6A
Sprocket 11 Teeth (#25 Chain)
Shaft Diameter 8 mm
Dimensions ~120 × 68 mm
Weight ~1.06 kg
Efficiency >70%
Drive Type Chain Drive
Applications E-bike, robotics, DIY

The MY6812 12V 100W DC Motor is a compact and efficient brushed permanent magnet motor designed for small electric mobility and DIY applications. It delivers a rated speed of ~2750 RPM under load, making it suitable for lightweight electric vehicles and robotics projects.

Key Features:

Compact & Efficient Design

  • Operates on 12V DC supply
  • 100W power output for light-duty applications

Good Speed Performance

  • 2750 RPM rated speed
  • ~3550 RPM no-load speed

Decent Torque Output

  • Approx. 0.45 N·m torque
  • Suitable for small load systems

Chain Drive Compatibility

  • Pre-installed 11T sprocket (#25 chain)
  • Easy integration into drive systems

Low Power Consumption

  • Rated current <7A
  • No-load current <0.6A

Durable Build

  • Metal body with permanent magnet construction
  • Long operational life

Applications

  • E-bikes & electric scooters (kids/lightweight)
  • 🤖 Robotics & automation projects
  • Ride-on toys & mini vehicles
  • DIY electric carts & small conveyors
  • Mechanical prototypes & motion systems

Packing List Includes:

1 x E-BIKE MY6812 12V 2750RPM 100W DC MOTOR

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
