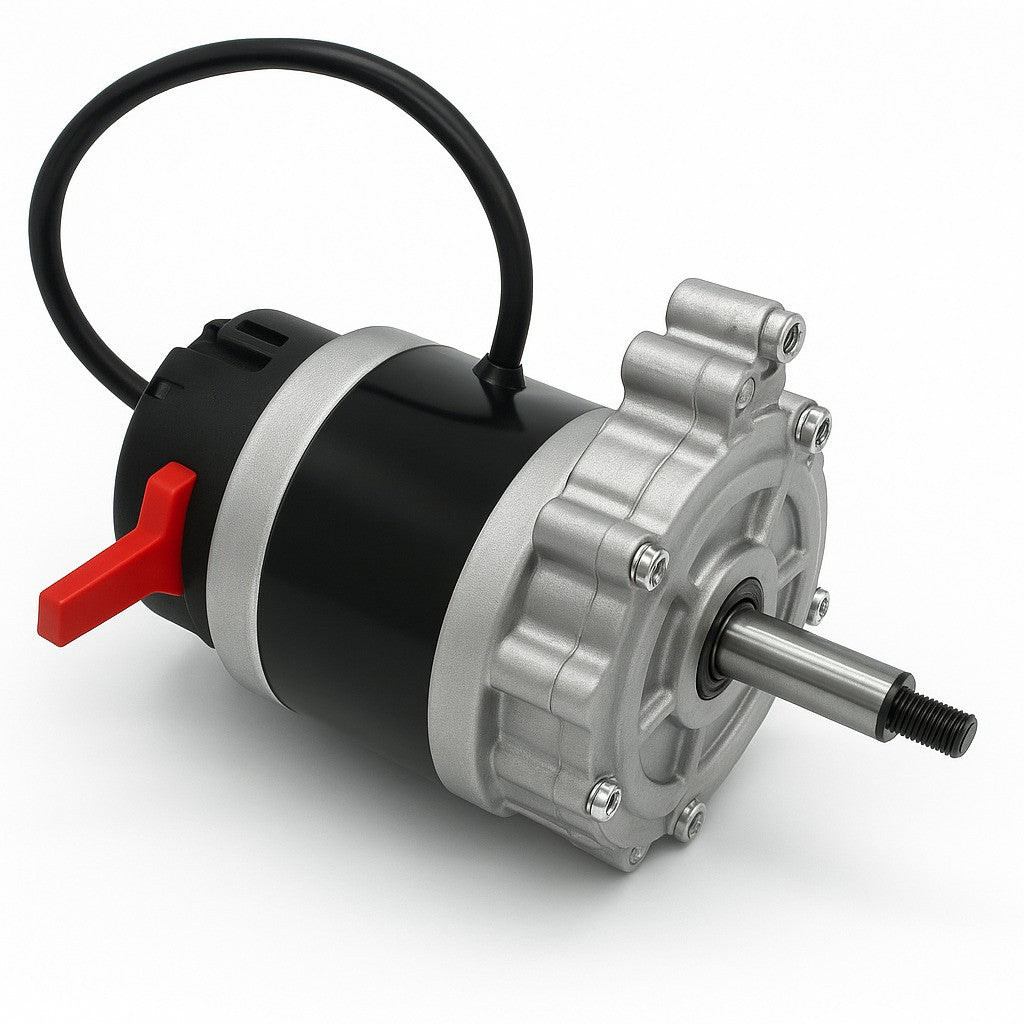

E-Bike Wheelchair MY1016ZL 24V 250W 120RPM GEARED DC Motor with Brake

E-Bike Wheelchair MY1016ZL 24V 250W 120RPM GEARED DC Motor with Brake

Availability: In stock
₹ 6,215.00 (Inc.GST)
₹ 6,215.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970023

Short Description:
  • 24V brushed DC motor
  • 250W power output
  • 120RPM rated speed With brake
  • Strong metal body with Magnet

Select below products to add together

  • E-bike MY1016Z 24v 800W Dc Speed Controller
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Model MY1016ZL
Motor Type Brushed PMDC Geared Motor with Brake
Rated Voltage 24V DC
Rated Power 250W
Base Motor Speed ~3000 RPM
Gear Ratio ~25:1
Output Speed ~120 RPM
Rated Torque ~20 N·m
Stall Torque >80 N·m
Rated Current ~14 – 15A
No Load Current ~4A
Brake Type Electromagnetic
Brake Voltage 24V DC
Brake Current ~1 – 1.5A
Shaft Diameter 17 mm (keyed)
Shaft Length ~46 mm
Weight ~3.2 kg
Mounting 4-hole flange
Special Feature Auto-lock when power OFF
Applications Wheelchair, robotics, EV

The MY1016ZL 24V 250W 120RPM Geared DC Motor with Brake is a high-torque PMDC geared motor with an integrated electromagnetic brake, specially designed for electric wheelchairs and mobility systems.

With a gearbox reducing speed to ~120 RPM, it delivers strong torque (~20 N·m) for smooth motion and load handling. The built-in brake automatically locks the shaft when power is off, ensuring safety on slopes and during stopping.

Key Features

High Torque Output

  • ~20 N·m rated torque (very high)
  • Stall torque >80 N·m for heavy load starting

Low-Speed Geared Design

  • Output speed: ~120 RPM
  • Gear ratio: ~25:1 for torque multiplication

Wheelchair-Optimized Design

  • Supports left & right motor pairing
  • Enables differential steering control

Efficient Electrical Performance

  • Rated current: ~14–15A
  • No-load current: ~4A

Strong Output Shaft

  • 17 mm keyed shaft (heavy-duty)
  • Direct wheel or sprocket mounting

Optional Electromagnetic Brake

  • 17 mm keyed shaft
  • Direct wheel mounting capability

Applications

  • Electric wheelchairs & mobility scooters
  • Electric carts & cargo vehicles
  • Heavy robotics (AGV, combat robots)
  • DIY EV & assistive mobility projects
  • Industrial automation & conveyors

Packing List Includes:

1 x E-Bike Wheelchair MY1016ZL/ZD101AZ1 24V 250W 120RPM GEARED DC Motor

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
