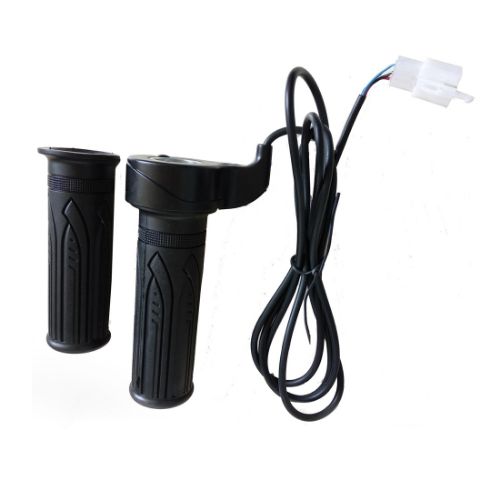

E-bike 24V/36V/48V Twist Throttle Grip Accelerator

E-bike 24V/36V/48V Twist Throttle Grip Accelerator

Availability: In stock
₹ 200.00 (Inc.GST)
₹ 200.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970097

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 15 Days Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information

Parameter

Specification

Throttle Type

Twist grip (Hall effect sensor based)

Compatible Voltage

5 V input from controller (standard for signal)

Signal Output Range

~0.8 V (closed) to ~4.2 V (fully open)

Wiring

3-wire (Red = +5V, Black = GND, Signal = output)

Cable Length

~1.5 m (with 3-pin connector)

Handlebar Size

Fits ~22 mm (7/8″) diameter handlebars

Return Mechanism

Internal spring (auto return to zero throttle)

Material

ABS/Polypropylene body, rubberized grip

Length of Grip

~120 mm (typical motorcycle-style grip length)

Operating Temp

-20°C to 60°C (typical)

Usage

Universal – e-bikes, electric scooters, go-karts, etc.

    This product is a twist throttle grip accelerator for e-bikes. It attaches to a motor controller for MY1016 e-bike motors and acts as an input to regulate the motor speed. It works like a scooter accelerator that is available in the market.

    It provides smooth and linear control over the e-bike motor and allows you to adjust the speed of the vehicle as per your need. It connects directly to the e-bike controller circuitry through the wire that comes with it.

    Wire Configurations:

    • Red – Supply
    • Black – GND
    • Green – Signal

    Packing List Includes:

    1 x E-bike Grip Throttle

    The product has a warranty for 15 Days against manufacturing defects only.

    However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
