| Parameter | Specification |
|---|---|
| Module | ESP-WROOM-32 |
| Processor | Dual-Core Xtensa LX6 32-bit |
| Clock Speed | 80 MHz – 240 MHz |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | Bluetooth v4.2 + BLE |
| Flash Memory | 4 MB |
| SRAM | 520 KB |
| Operating Voltage | 3.0V – 3.6V |
| USB Interface | CP2102 USB-to-UART |
| GPIO Pins | Up to 30+ GPIOs |
| ADC Channels | 18 × 12-bit ADC |
| DAC Channels | 2 × 8-bit DAC |
| PWM Channels | 16 |
| UART | 3 |
| SPI | 3 |
| I²C | 2 |
| Touch Sensors | 10 Capacitive Touch Inputs |
| Antenna | On-board PCB Antenna |
| Data Rate | Up to 150 Mbps |
| Deep Sleep Current | < 5 µA |
| USB Connector | Micro USB |
| Programming Support | Arduino IDE, ESP-IDF, MicroPython, PlatformIO |

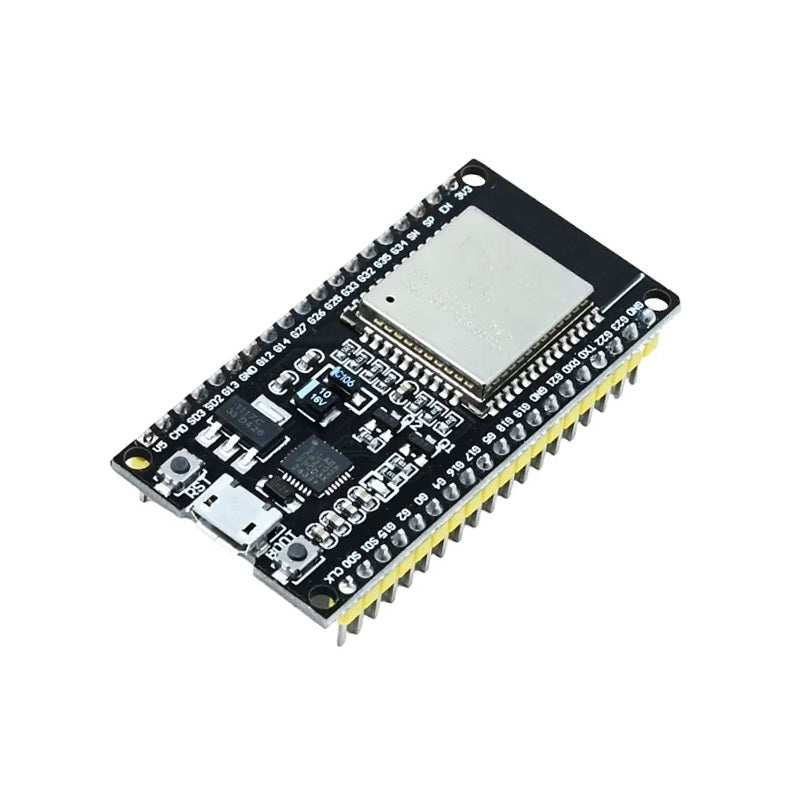

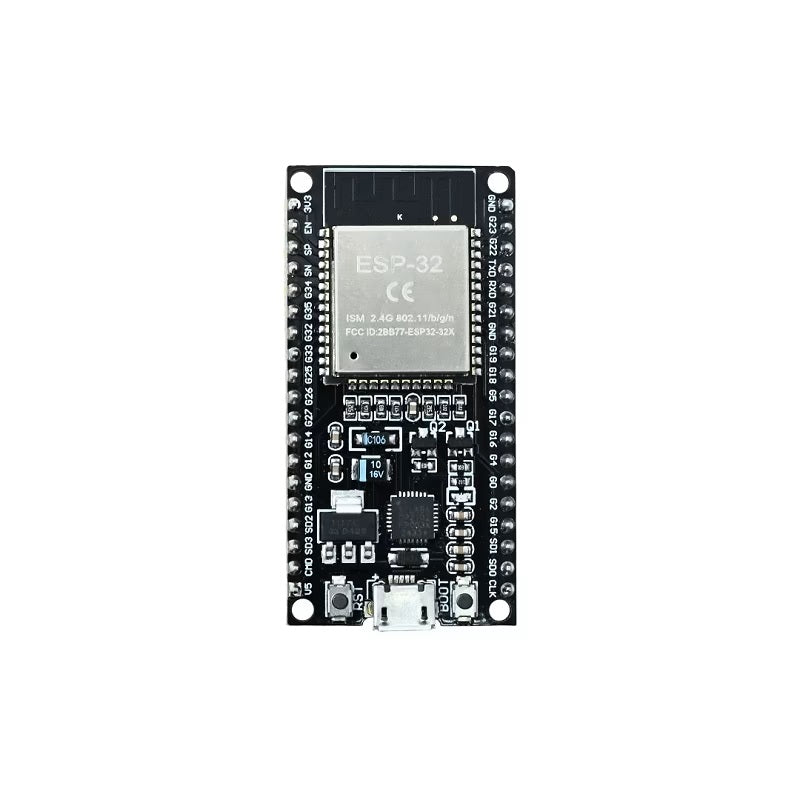

ESP32 WROOM-32 is a high-performance dual-core Wi-Fi and Bluetooth development board featuring 4 MB flash memory, 520 KB SRAM, capacitive touch sensing, ADC, DAC, PWM, and extensive GPIO support, making it ideal for IoT, robotics, automation, drones, and industrial wireless applications
Key Features:
- Dual-core 32-bit Xtensa LX6 processor
- Clock speed up to 240 MHz
- Integrated 2.4 GHz Wi-Fi (802.11 b/g/n)
- Built-in Bluetooth Classic and Bluetooth Low Energy (BLE)
- 4 MB Flash Memory for program storage
- 520 KB SRAM for fast data processing
- Supports Arduino IDE, ESP-IDF, MicroPython, and PlatformIO
- Up to 30+ GPIO pins for interfacing with sensors and modules
- 18-channel 12-bit ADC for analog sensor inputs
Packing List Includes:
1 × ESP32 WROOM 38 pin Module.
