| Parameter | Specification |
|---|---|
| Board Name | NodeMCU ESP8266 CP2102 |
| Microcontroller | ESP8266EX |
| USB Interface | CP2102 USB-to-Serial Converter |
| Wi-Fi Standard | IEEE 802.11 b/g/n |
| Frequency | 2.4 GHz |
| CPU | 32-bit RISC Processor |
| Clock Speed | 80 MHz (up to 160 MHz) |
| Flash Memory | 4 MB |
| SRAM | 64 KB |
| Operating Voltage | 3.3V |
| Input Voltage | 5V via Micro USB |
| Digital I/O Pins | Up to 11 GPIOs |
| Analog Input | 1 × ADC (A0) |
| Communication | UART, SPI, I²C, PWM |
| Antenna | On-board PCB Antenna |
| USB Connector | Micro USB |
| Programming Support | Arduino IDE, Lua, MicroPython |
| Dimensions | Approx. 49 × 24.5 × 13 mm |

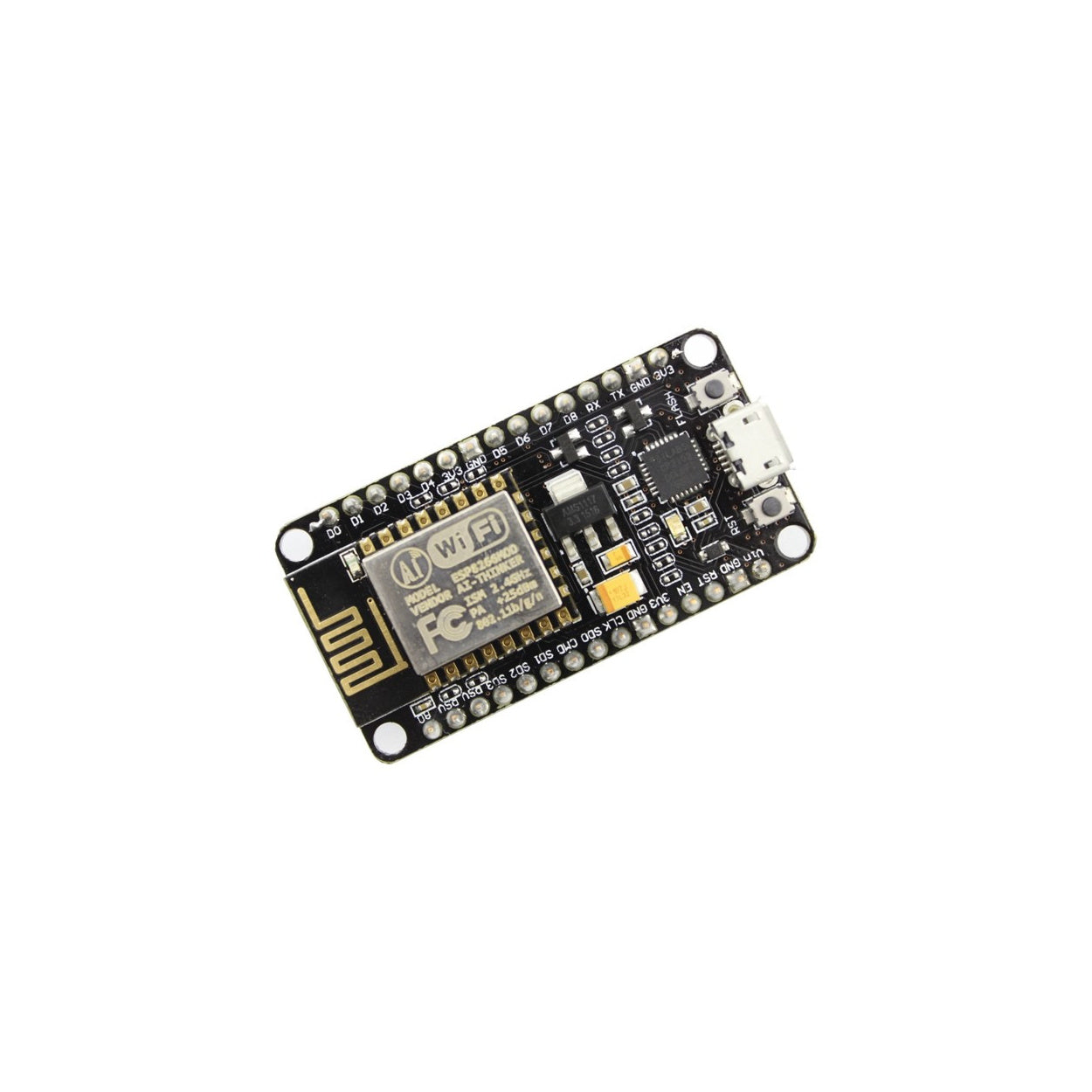

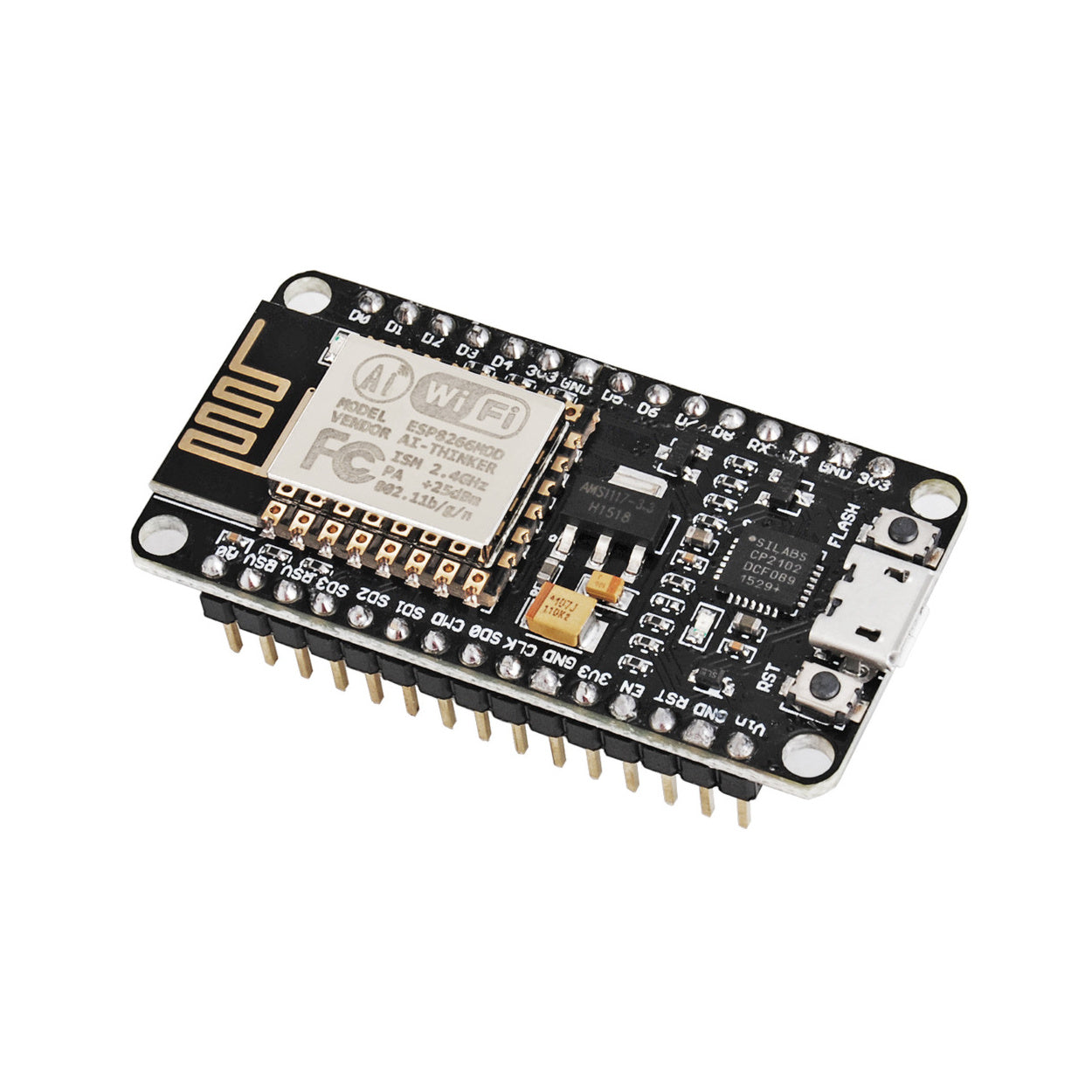

NodeMCU ESP8266 CP2102 is a Wi-Fi-enabled IoT development board featuring the ESP-12E module, 4 MB flash memory, CP2102 USB interface, and multiple GPIOs for rapid prototyping of automation, robotics, and wireless monitoring applications.
Key Features :
- ESP-12E based Wi-Fi development board
- CP2102 USB-to-Serial interface
- 4 MB onboard flash memory
- Breadboard-friendly design
- Integrated TCP/IP networking stack
- Supports Station, Access Point, and STA+AP modes
- Compatible with Arduino IDE, Lua, and MicroPython
- Onboard reset and flash buttons
Packing List Includes:
1 × NodeMCU ESP8266 CP2102 Development Board
