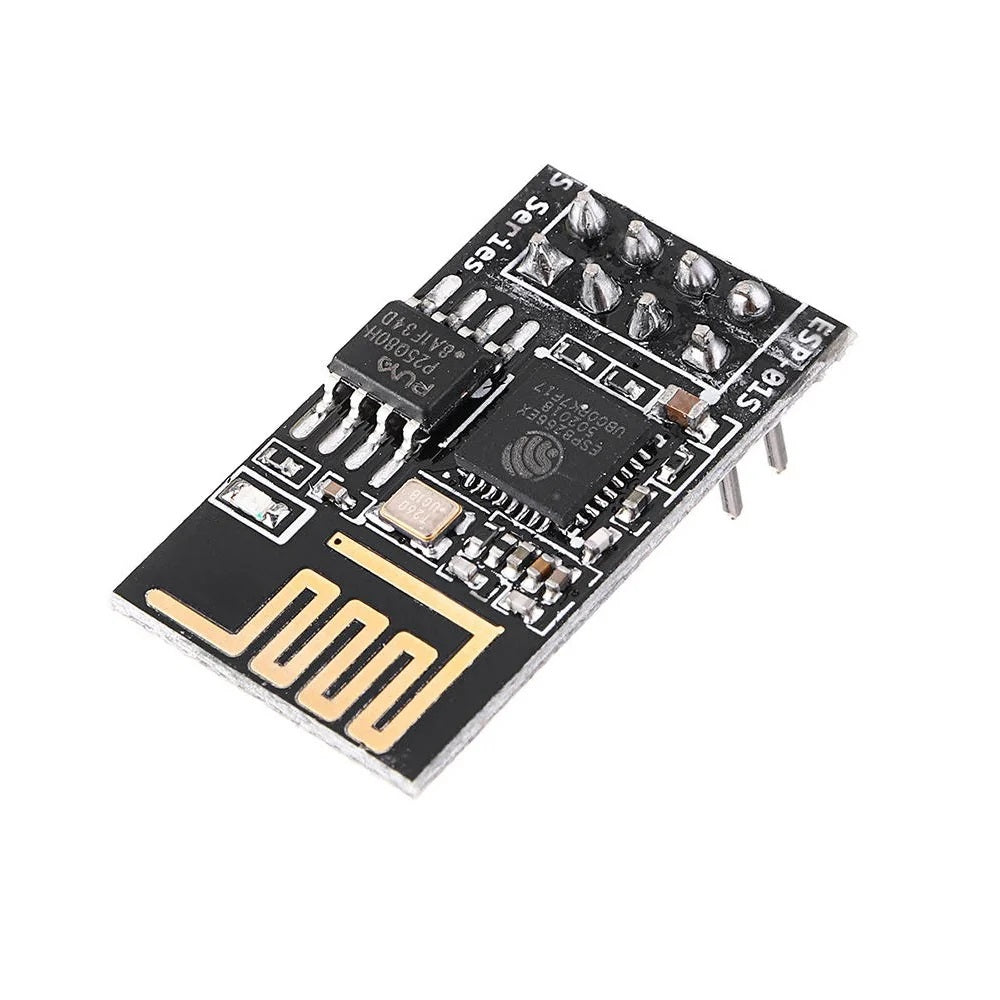

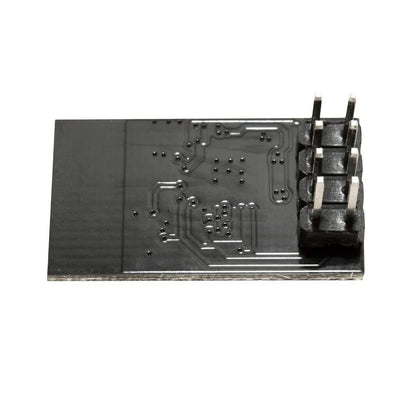

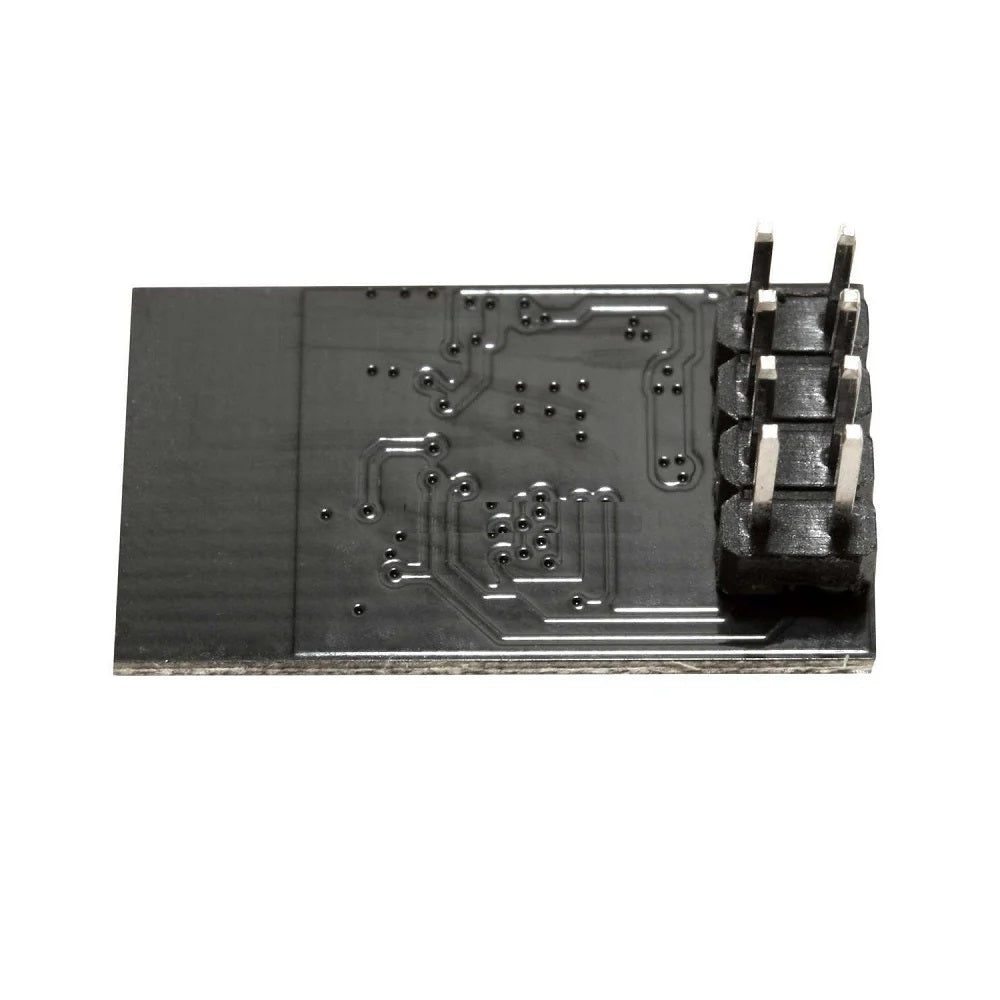

ESP8266 WiFi ESP-01 Transceiver Wireless Module

ESP8266 WiFi ESP-01 Transceiver Wireless Module

Availability: In stock (Shipped within 2-3 days )
₹ 160.00 (Inc.GST)
₹ 160.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

6570012

Short Description:
  • ESP8266 ESP-01 is a compact 3.3V WiFi transceiver module featuring the ESP8266EX processor.

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Module ESP8266 ESP-01
WiFi Standard IEEE 802.11 b/g/n
Frequency 2.4 GHz
Operating Voltage 3.0V – 3.6V DC (3.3V Typical)
Logic Level 3.3V Only
Flash Memory 1 MB
Processor 32-bit ESP8266EX
Clock Speed 80 MHz (160 MHz Max)
GPIO Pins 2 (GPIO0, GPIO2)
Communication UART, SPI, SDIO
Antenna On-board PCB Antenna
Wireless Modes Station (STA), Access Point (AP), STA+AP
Dimensions Approx. 24.8 × 14.3 mm
Peak Current Up to 300 mA
Output Power Up to +19.5 dBm

The ESP8266 ESP-01 WiFi Module is a compact and low-cost Wi-Fi serial communication module based on the ESP8266EX microcontroller, designed for IoT (Internet of Things) and embedded wireless applications. It provides built-in 802.11 b/g/n Wi-Fi connectivity (2.4 GHz) along with a complete TCP/IP protocol stack, enabling direct internet connectivity for microcontroller-based systems.

The module is commonly used as a UART-to-WiFi bridge, allowing devices like Arduino and other microcontrollers to send and receive data over Wi-Fi using simple serial communication (AT commands). It can also be programmed as a standalone controller for basic IoT tasks such as sensor monitoring and device control. It operates at 3.3V logic level and includes a built-in PCB antenna for wireless communication.

Due to its very small size, low power consumption, and affordability, the ESP8266 ESP-01Sis widely used in smart switches, basic IoT devices, home automation projects, wireless data transmission, and cloud-connected applications. However, it has limited GPIO pins, making it more suitable for simple connectivity tasks rather than complex standalone systems

Key Features:

  • Based on ESP8266EX 32-bit low-power MCU
  • Built-in 2.4 GHz Wi-Fi (802.11 b/g/n) connectivity
  • Supports Station (STA) and Access Point (AP) modes
  • Integrated TCP/IP protocol stack for internet communication
  • 32-bit Tensilica L106 processor (80 MHz, up to 160 MHz)
  • 1 MB Flash memory (typical ESP-01S version)
  • Very compact module with UART (TX/RX) serial interface
  • Works with AT commands firmware (easy serial control)
  • Only 2 usable GPIO pins (GPIO0, GPIO2) + serial pins
  • Built-in PCB antenna for wireless communication
  • Low power consumption with deep sleep mode (<10 µA)
  • Improved version of ESP-01 with stable boot resistors & better reliability
  • Supports Arduino IDE, Micro Python, Lua firmware
  • Ideal for simple IoT, smart switches, wireless serial communication, and cloud connectivity projects

Packing List Includes:

1 × ESP8266 ESP-01 WiFi Module

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
