Hex Pixhawk Cube+ Autopilot Flight Controller

Hex Pixhawk Cube+ Autopilot Flight Controller

Availability: In stock (Shipped within 2-3 days)
₹ 46,300.00 (Inc.GST)
₹ 46,300.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9180026

Short Description:
  • High-performance STM32H7 dual-core flight controller
  • Built-in ADS-B IN for aircraft detection & safety
  • Triple redundant IMUs for maximum reliability
  • Supports ArduPilot & PX4 open-source firmware
  • Temperature-controlled sensors for stable performance
  • Modular cube design with carrier board compatibility
  • Extensive I/O: CAN, UART, I2C, PWM, GPS
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 3 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Model Cube Orange Plus Autopilot
Processor STM32H757 (Dual-core Cortex M7 + M4)
Sensors Triple redundant IMUs + dual barometers
ADS-B Integrated 1090MHz ADS-B IN receiver
Firmware Support ArduPilot / PX4

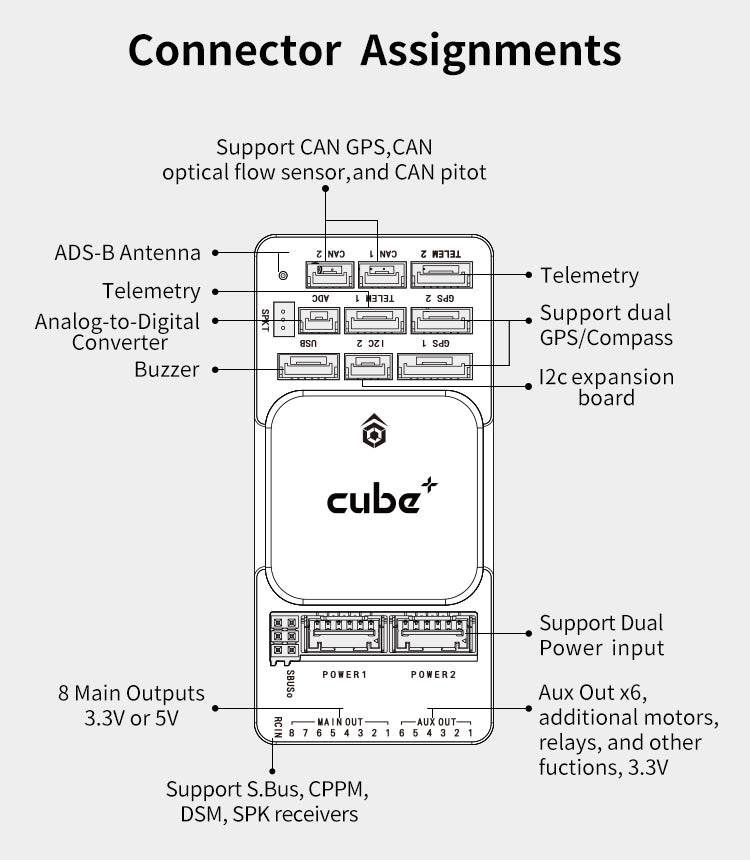

Connectivity CAN, I2C, UART, GPS, PWM
PWM Outputs Up to 14 channels
GPS Support Dual GPS
Power System Redundant power inputs
Form Factor Modular cube design
Dimensions (Cube) ~38.4 × 38.4 × 22 mm
Weight ~73 g
Applications UAVs, drones, robotics, UGV/USV/UUV

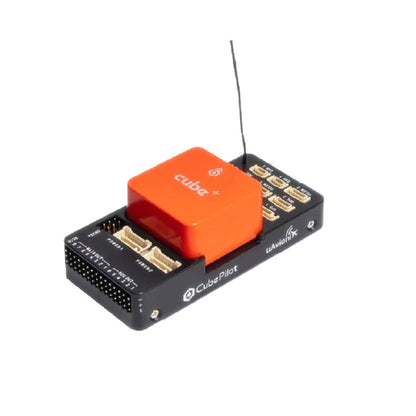

The Cube Orange Plus Autopilot is an advanced open-source flight controller designed for professional UAVs, drones, and autonomous systems. Powered by a high-performance STM32H7 dual-core processor, it delivers faster processing, improved reliability, and enhanced flexibility for developers and system integrators.

Equipped with an integrated ADS-B IN receiver, the system provides real-time detection of nearby manned aircraft, enabling safer drone operations and collision avoidance. Its modular cube design, combined with carrier board compatibility, makes it ideal for industrial, agricultural, mapping, and research applications.

Key Features:

🧠 High-Performance Processing

  • STM32H757 dual-core processor (H7 series)
  • Higher speed & memory for advanced UAV applications

🛰️ ADS-B Safety System

  • Built-in 1090MHz ADS-B IN receiver
  • Detects nearby aircraft for collision avoidance

🔄 Triple Redundant Sensors

  • Triple IMU redundancy for high reliability
  • Vibration-isolated sensors for stable flight data

🌡️ Temperature-Controlled IMU

  • Sensors operate at optimal temperature
  • Ensures consistent accuracy in all environments

⚙️ Modular Cube Design

  • Compact cube form factor
  • Compatible with multiple carrier boards

🔌 Extensive Connectivity

  • CAN, I2C, UART, GPS, PWM outputs
  • Supports custom UAV integrations

🧩 Open-Source Ecosystem

  • Supports ArduPilot & PX4 firmware
  • Ideal for developers and commercial UAV systems

Packing List Includes:

  • 1 × Cube orange+ set
  • 1 x buzzer Canle
  • 1 x Power Brick Mini
  • 1 x Power brick Mini Cable
  • 1 x GPS1 GH Cable
  • 1 x Micro USB Cable
  • 1 x I2C Board
  • 2 x Can Cable
  • 2 x I2C Cable

The product has a warranty for 3Months against manufacturing defects only.

  • However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
