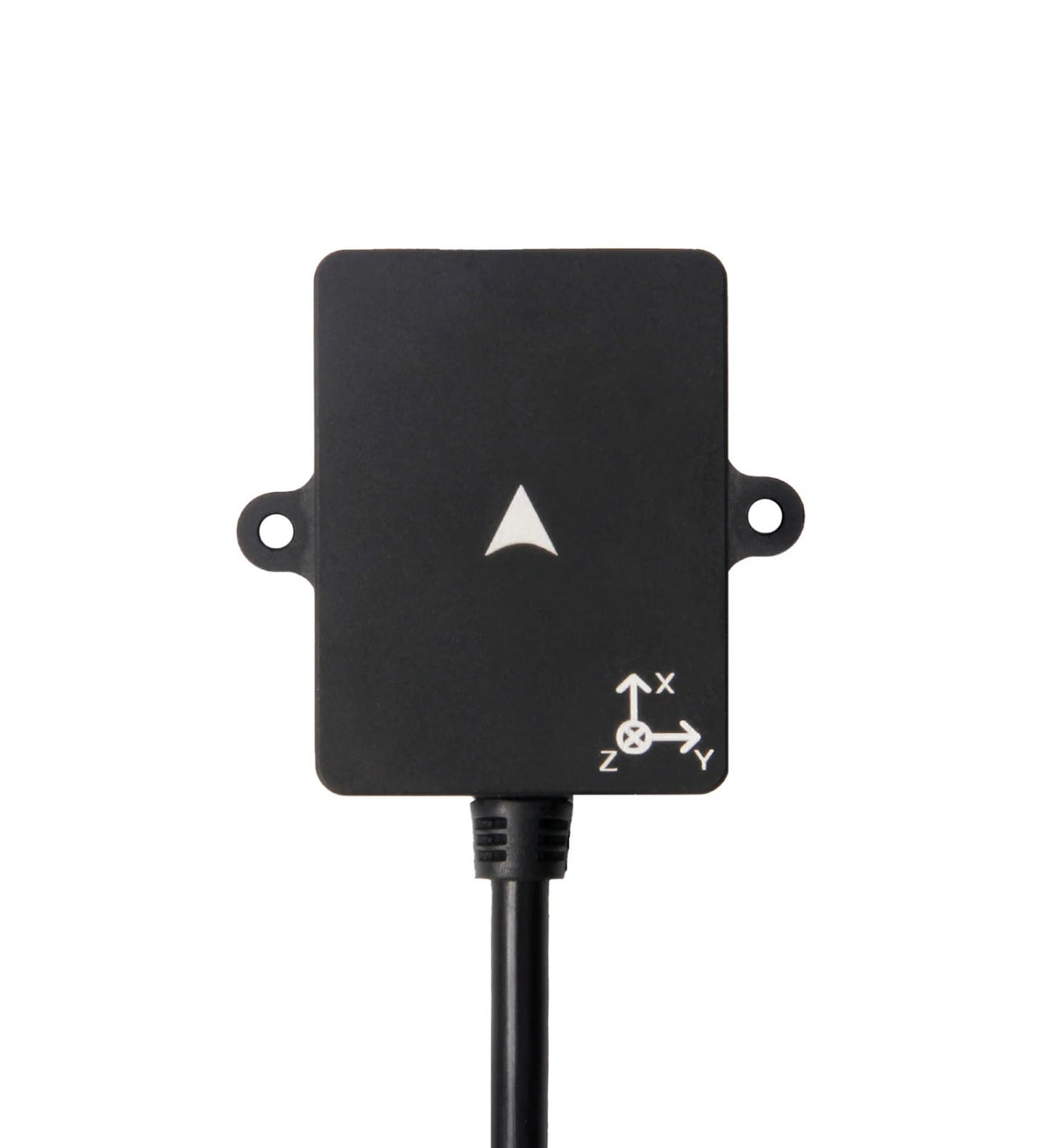

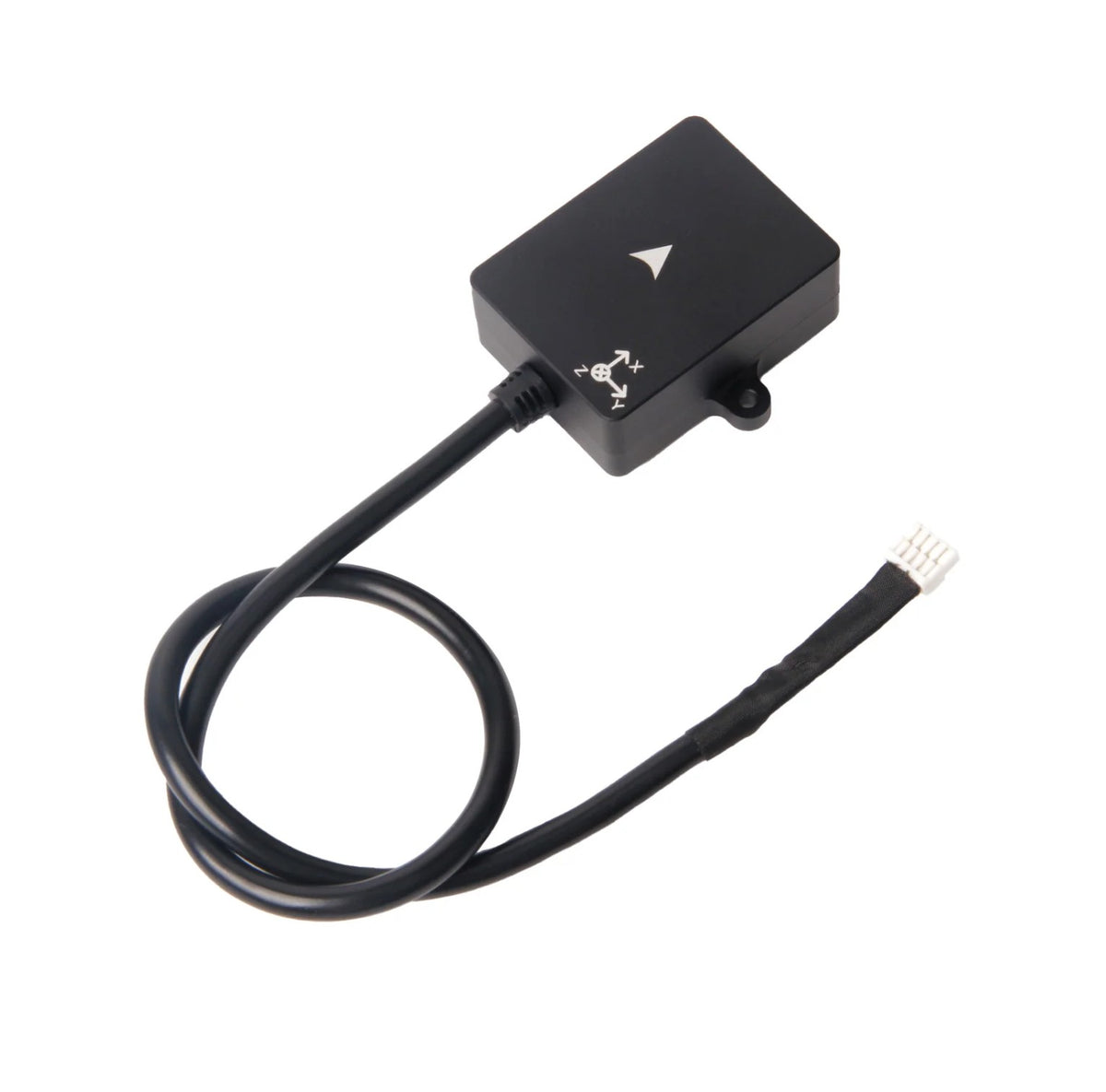

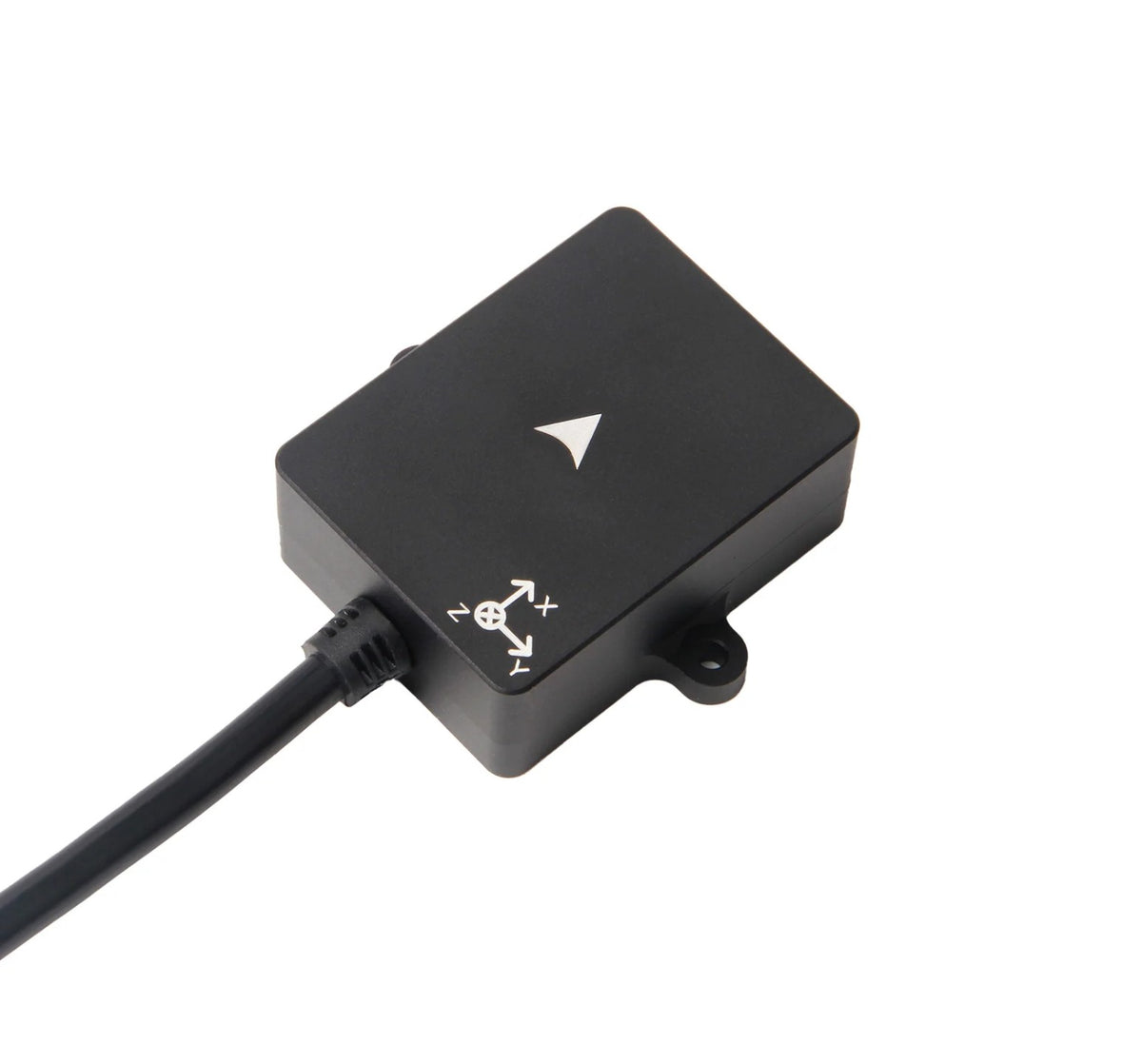

Holybro DroneCAN RM3100 Professional Grade Compass (IP66)

Name: Holybro DroneCAN RM3100 Professional Grade Compass (IP66)
Brand: Xrobo
SKU: 9180044
Price: 9000.00 INR
Availability: InStock

Availability: Pre-order – Shipped within 10-15 days

₹ 9,000.00 (Inc.GST)

Sale Sold out

Shipping calculated at checkout.

SKU:9180044

Need Support?
Click Here
Have a Bulk Order?
Click Here
Free Delivery

above ₹699
1 Months Warranty

View full details

Specification	Details
Product Name	Holybro DroneCAN RM3100 Professional Grade Compass
SKU	18088 (27 cm)
Sensor Type	3-axis magnetometer
Sensor Technology	PNI magneto-inductive technology
Field Measurement Range	−800 to +800 μT
Gain	20 / 38 / 75 LSB/μT
Sensitivity	50 / 26 / 13 nT
Noise	30 / 20 / 15 nT
Maximum Single-Axis Sample Rate	1600 / 850 / 440 Hz
Maximum 3-Axis Sample Rate	Approx. 533 / 283 / 147 Hz
Communication Protocol	DroneCAN
CAN Speed	1 Mbit/s
Connector	4-pin JST-GH 1.25 mm
IP Rating	IP66
Operating Temperature	−40°C to +85°C
Cable Options	27 cm / 42 cm
Weight	50 g
CAN Termination	Software-selectable
Application	UAV / Drone compass and heading sensor

The Holybro DroneCAN RM3100 Compass is a professional-grade 3-axis magnetometer based on PNI's RM3100 magneto-inductive technology. It provides high-resolution magnetic-field measurements, low noise and low hysteresis for accurate vehicle heading. Its DroneCAN interface allows the compass to share a CAN bus with other DroneCAN peripherals without consuming a flight-controller serial port. The current version features an IP66-rated housing and software-selectable CAN termination.

Key Features:

Professional-grade RM3100 magnetometer
10 nT-class resolution
Very low magnetic hysteresis
High signal-to-noise performance
3-axis magnetic-field measurement
DroneCAN connectivity
Does not consume a serial/UART port on the flight controller
Multiple DroneCAN devices can share a single CAN bus
IP66-rated housing

Applications:

UAVs and professional drones
Autonomous aircraft
Robotics
Surveying and mapping
Precision navigation
Agricultural UAVs
Industrial inspection
Autonomous ground vehicles
PPK surveying
RTK base/rover applications

Packing List Includes:

1 x Drone CAN RM3100 Compass
