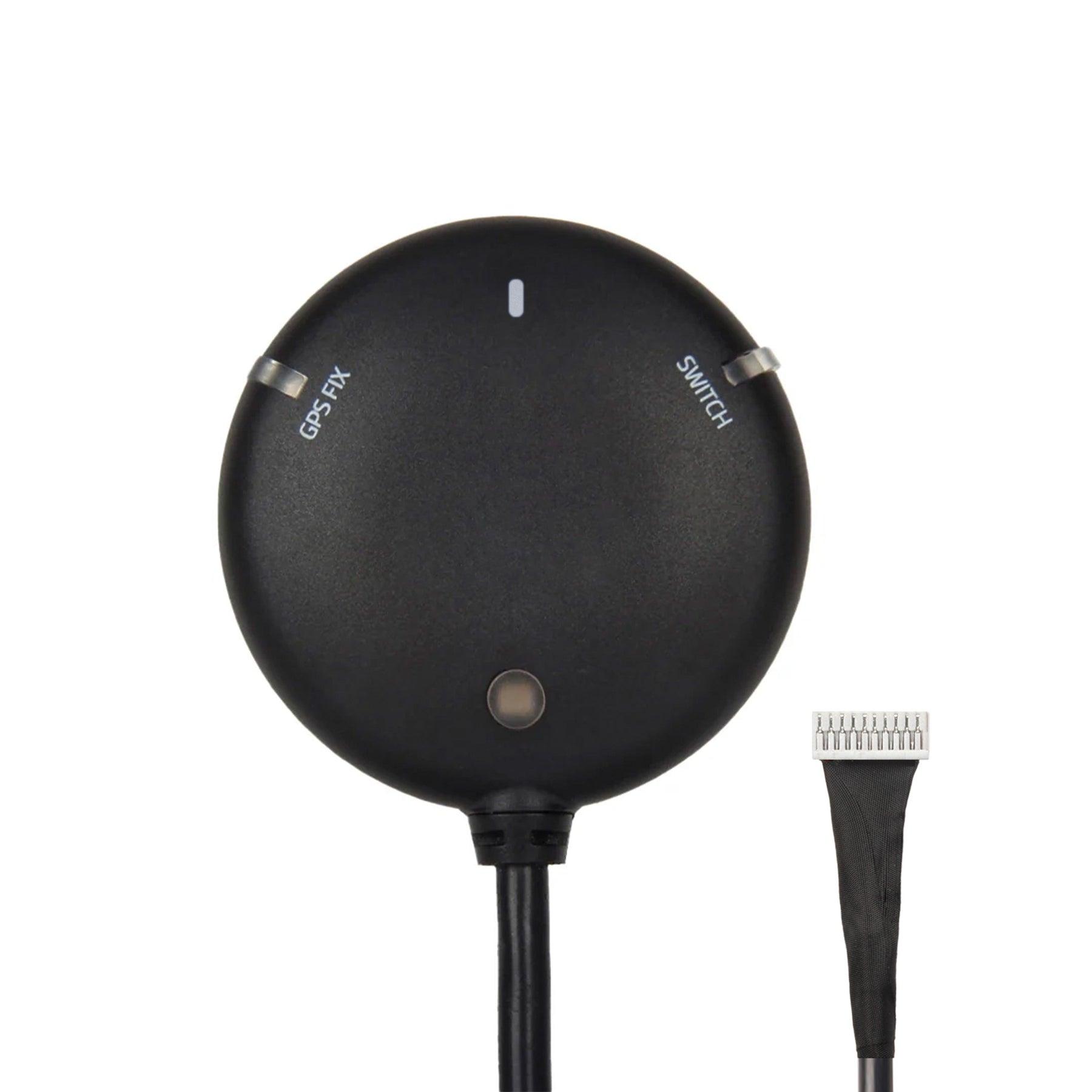

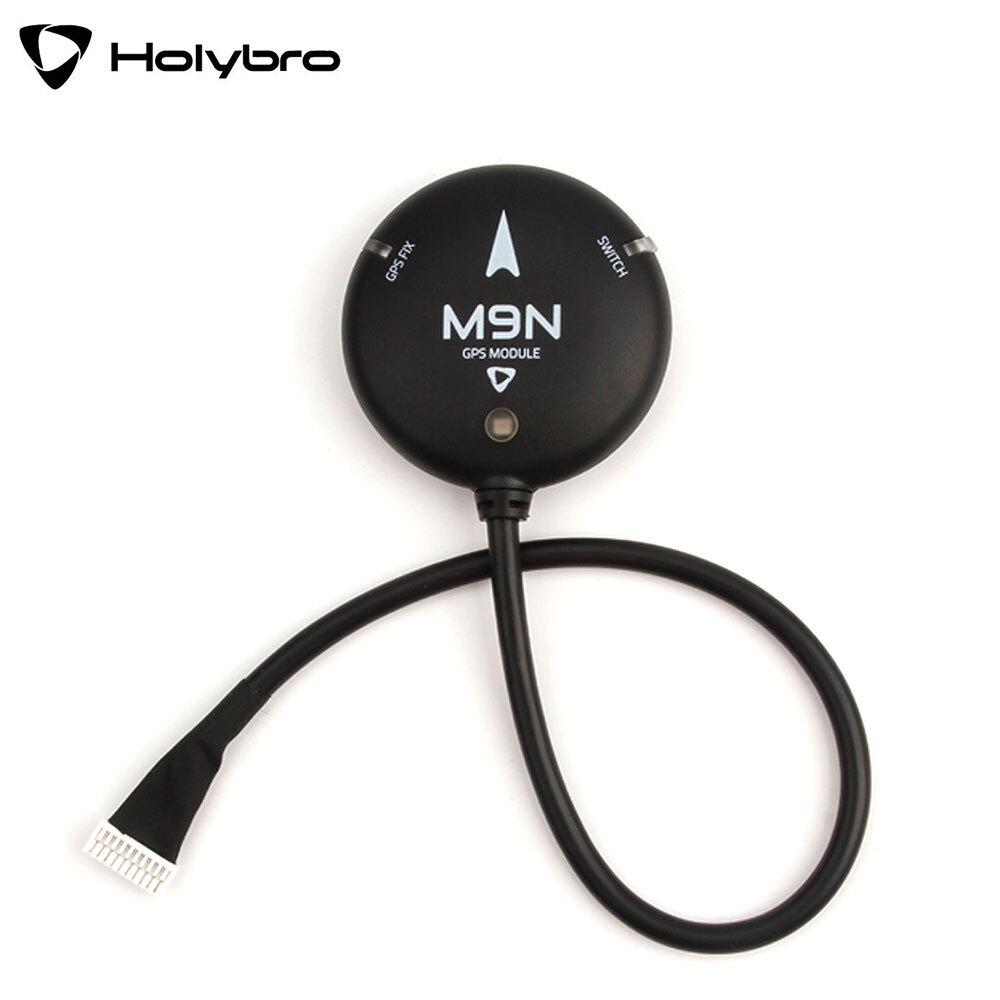

Holybro M9N GPS

Holybro M9N GPS

Availability: In stock
₹ 8,200.00 (Inc.GST)
₹ 8,200.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360420

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 3 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model Holybro M9N GPS
GNSS Receiver u-blox NEO-M9N
GNSS Constellations GPS, Galileo, GLONASS, BeiDou, QZSS (up to 4 concurrently)
Frequency Band GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
Position Accuracy 1.5 m CEP
Navigation Update Rate Up to 25 Hz
Output Protocol UBX, NMEA
Compass IST8310
Antenna 25 × 25 × 4 mm Ceramic Patch
Antenna Gain 1.5 dBi
LNA Gain 22 dB
GNSS Augmentation WAAS, EGNOS, GAGAN, MSAS, QZSS L1S
Input Voltage 4.7–5.2 V DC
Default Baud Rate 115200 bps
Power Consumption <200 mA @ 5 V
Operating Temperature -40°C to +80°C

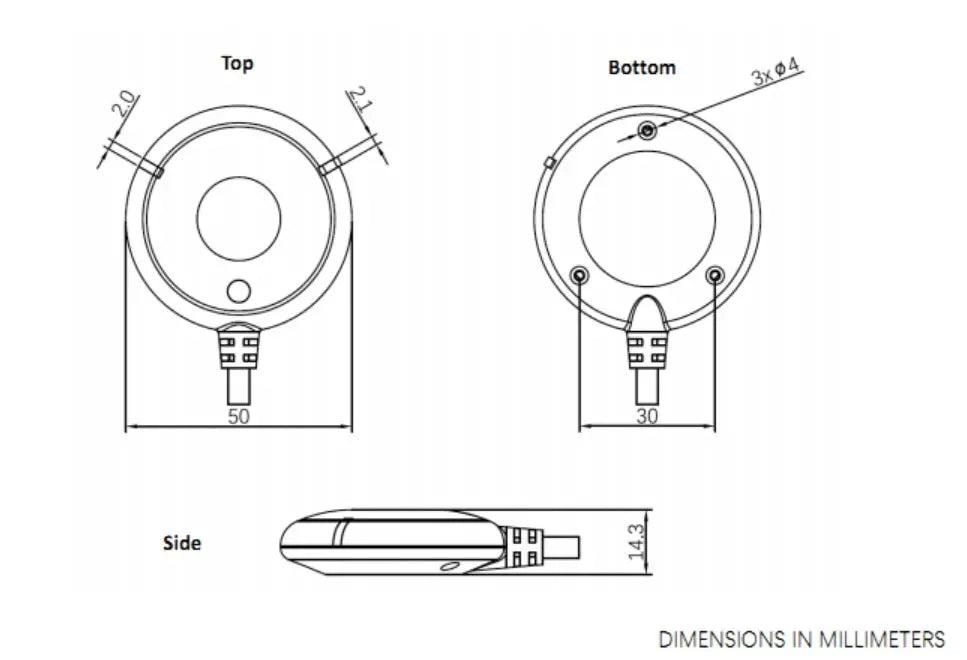

Dimensions (V2) Ø51 × 18.5 mm
Weight (V2) 36.8 g
Cable Length 27 cm
Protection IP67 (V2 version)

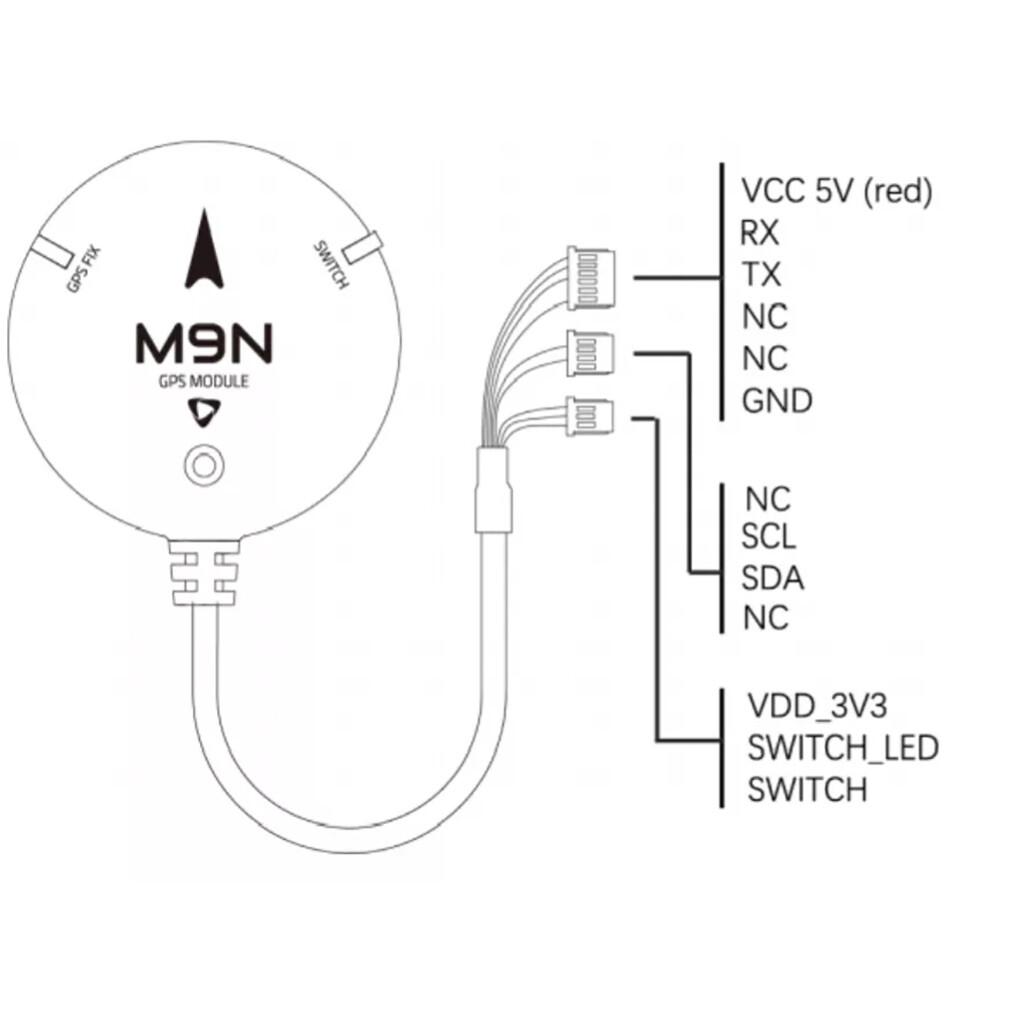

Interface JST-GH 10-pin / JST-GH 6-pin

The Holybro M9N GPS is a professional multi-constellation GNSS module built around the u-blox NEO-M9N receiver. It tracks GPS, Galileo, GLONASS, BeiDou, and QZSS simultaneously for fast satellite acquisition and high positioning accuracy. Featuring an integrated digital compass, ceramic patch antenna, IP67-rated enclosure (V2), and compatibility with Pixhawk, PX4, and ArduPilot flight controllers, it is an excellent choice for drones, VTOL aircraft, robotics, and autonomous navigation applications.

Key Features:

  • u-blox NEO-M9N multi-constellation GNSS receiver
  • Simultaneous reception of up to 4 GNSS systems
  • High-precision 1.5 m CEP positioning
  • Navigation update rate up to 25 Hz
  • Built-in IST8310/IST8308 digital compass
  • High-gain ceramic patch antenna
  • Integrated RF amplifier (LNA)
  • Rechargeable backup capacitor for faster warm starts
  • Supports UBX and NMEA protocols
  • Compatible with Pixhawk, CubePilot, PX4, and ArduPilot
  • IP67-rated enclosure (V2)
  • Low-noise power regulation for improved signal quality
  • Available with multiple connector options for different flight controllers.

Applications:

  • Multirotor Drones
  • Fixed-Wing UAVs
  • VTOL Aircraft
  • Autonomous Robots
  • Agricultural Drones
  • Survey & Mapping UAVs
  • Inspection Drones
  • Research & Development Projects
  • Pixhawk Flight Controller Systems
  • ArduPilot & PX4 Platforms

Compatible Flight Controllers:

  • Pixhawk 6X / 6C
  • Pixhawk 4
  • Cube Orange / CubePilot
  • Pix32
  • Holybro Durandal
  • Kakute H7 (with compatible interface)

Packing List Includes:

  • 1 x M9N GPS Module

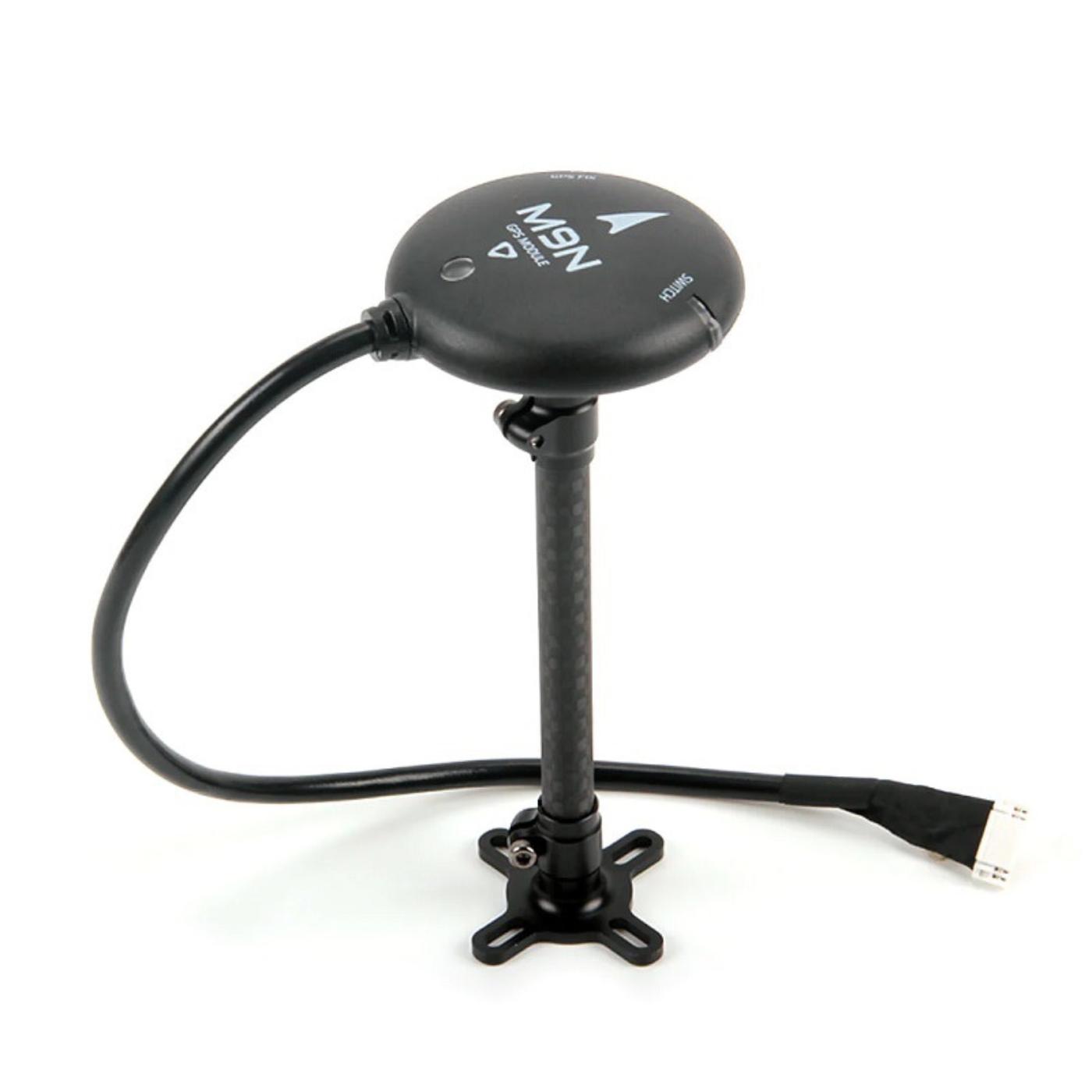

  • 1 x Fixed Carbon Fiber GPS mount

The product has a warranty for 3 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
