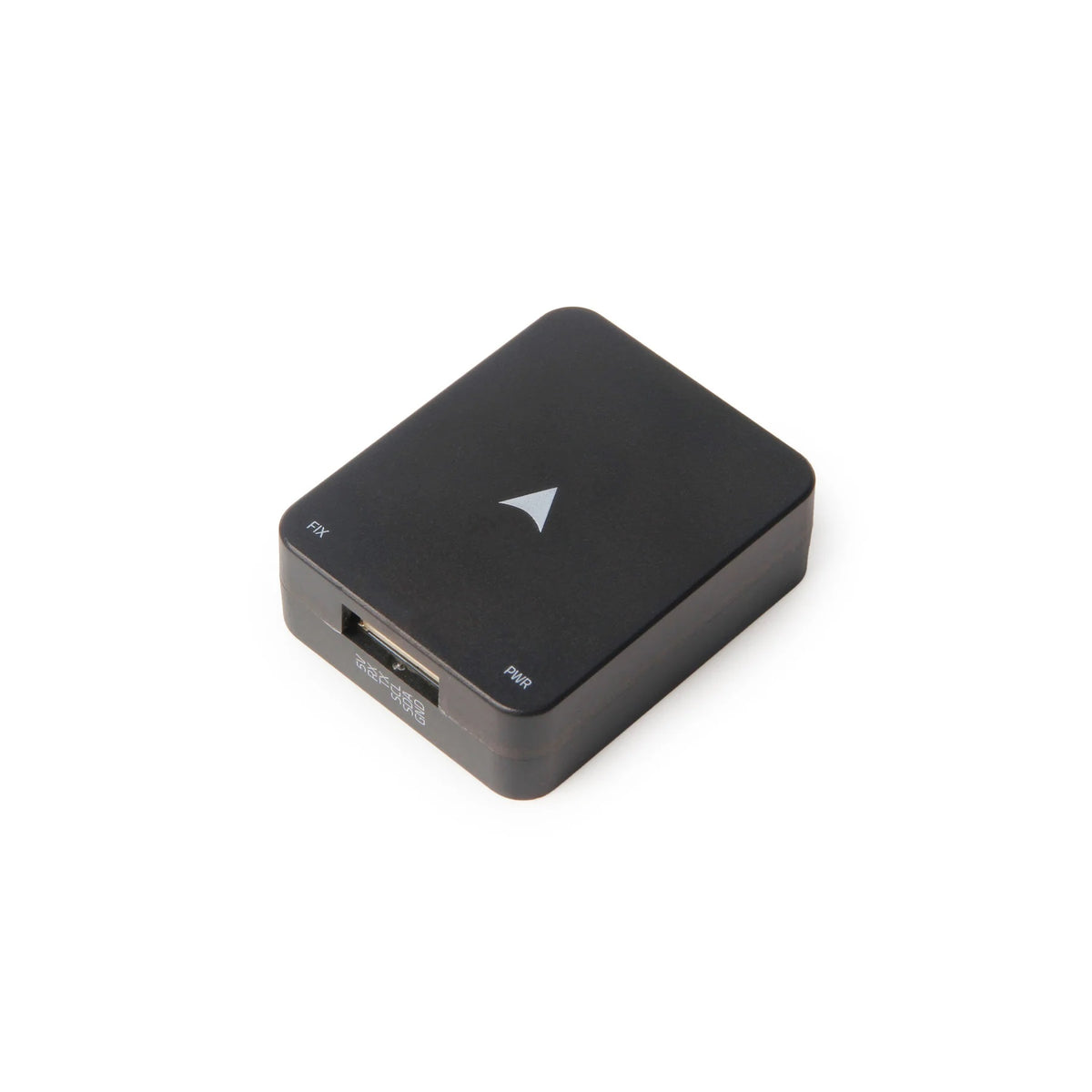

Holybro Micro M10 GPS With Case

Holybro Micro M10 GPS With Case

Availability: In stock
₹ 3,825.00 (Inc.GST)
₹ 3,825.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9180034

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Parameter Specification
Model Micro M10 GPS With Case
GNSS Receiver u-blox M10
Concurrent GNSS Up to 4 GNSS
Supported Systems GPS, Galileo, GLONASS, BeiDou, QZSS
Frequency Bands GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
Compass / Magnetometer IST8310
Output Protocol UBX (u-blox), NMEA
Position Accuracy 2.0 m CEP
Navigation Update Rate Up to 25 Hz with single GNSS; up to 10 Hz with 4 concurrent GNSS
GNSS Augmentation EGNOS, GAGAN, MSAS, WAAS
QZSS Augmentation L1S
Default Baud Rate 115200
Input Voltage 4.7–5.2 V
Connector JST-GH-6P
Antenna 25 × 25 × 4 mm ceramic patch antenna
Antenna Gain 1.5 dBi
Antenna LNA Gain 22 dB
Power Consumption <200 mA @ 5 V
Operating Temperature −40°C to +80°C
Dimensions — Without Case 32 × 26 × 9 mm
Dimensions — With Case 34 × 28 × 11 mm
Weight — Without Case 14 g
Weight — With Case 16 g
RF Amplifier MAX2659ELT+ LNA
Power Storage Rechargeable Farad capacitance
Regulator Low-noise 3.3 V regulator
Firmware Support PX4 1.14+, ArduPilot 4.3+, INAV 5.0.0+, Betaflight 4.3.0+
Case Protective case included

The Holybro Micro M10 GPS With Case uses a u-blox M10 GNSS receiver and an IST8310 compass. The official Holybro listing identifies the With Case / IST8310

Key Features:

  • u-blox M10 10th-generation GNSS
  • Multi-constellation support for GPS, Galileo, GLONASS, BeiDou and QZSS
  • Integrated IST8310 compass
  • Compact 34 × 28 × 11 mm enclosure
  • Lightweight 16 g with case
  • Up to 25 Hz navigation update rate in single-GNSS mode
  • 4.7–5.2V supply requirement
  • JST-GH 6-pin connection
  • Designed for UAV flight controllers and autopilots
  • Supports PX4, ArduPilot, INAV and Betaflight with the required firmware versions.

Packing List Includes:

  • 1 x Holybro Micro M10 GPS Module
  • 1 x JST GH 6-pin Connector 15 cm
  • 1 x JST-GH 6-pin Colored Silicon Cable 15 cm

The product has a warranty for1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
