Holybro SiK Telemetry Radio V3

Holybro SiK Telemetry Radio V3

Availability: Pre-order – Shipped within 10-15 days
₹ 9,000.00 (Inc.GST)
₹ 9,000.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9180043

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Specification Details
Product Name Holybro SiK Telemetry Radio V3
Radio Type SiK Telemetry Radio
Available Power / Frequency 100 mW 433 MHz; 100 mW 915 MHz
500 mW Versions 433 MHz
Max RF Power 20 dBm (100 mW)
Receive Sensitivity −121 dBm @ 2 kbps; −105 dBm @ 64 kbps
Antenna Gain 2 dBi
Line-of-Sight Range Approx. 300–500 m with 2 dBi antenna
Frequency Band 902–928 MHz or 414–460 MHz
RF Data Rate 2–250 kbps
Serial Data Rate 1.2–115.2 kbps
Default RF Data Rate 64 kbps
Default Serial Rate 57.6 kbps
Communication 2-way full-duplex
Protocol MAVLink / Standard framing
Interference Protection FHSS, configurable duty cycle
Frequency-Hopping Channels Up to 50
Network Topology Point-to-point
Network ID 0–255
Configuration Mission Planner or AT Commands
Error Correction Up to 25% bit-error correction
Serial Interface 6-pin JST-GH, 3.3V TTL
USB Micro-USB
RF Connector RP-SMA female
Input Voltage 5 V DC
Operating Temperature −40°C to +85°C
Dimensions 28 × 53 × 10.7 mm, without antenna
Weight 23.5 g with antenna
Serial Interface 3.3 V UART
Transmit Current 100 mA @ 20 dBm
Receive Current 25 mA
FCC ID 2AP22-HT03-V3

The Holybro SiK Telemetry Radio V3 is a compact, plug-and-play, open-source telemetry radio designed to establish a reliable connection between a flight controller and ground station. It supports MAVLink and is compatible with Mission Planner, ArduPilot, QGroundControl and PX4. The V3 is available in 100 mW 433 MHz and 100 mW 915 MHz versions; the 500 mW variants are now discontinued on Holybro's store.

Key Features:

  • Plug-n-play for Pixhawk Standard Flight Controllers
  • The Easiest way to connect your Flight Controller and Ground Station
  • Interchangeable air and ground radio
  • Micro-USB port (Type-C Adapter Cable Included)
  • 6-position JST-GH connector

Applications:

  • UAVs and professional drones
  • Autonomous aircraft
  • Robotics
  • Surveying and mapping
  • Precision navigation
  • Agricultural UAVs
  • Industrial inspection
  • Autonomous ground vehicles
  • PPK surveying
  • RTK base/rover applications

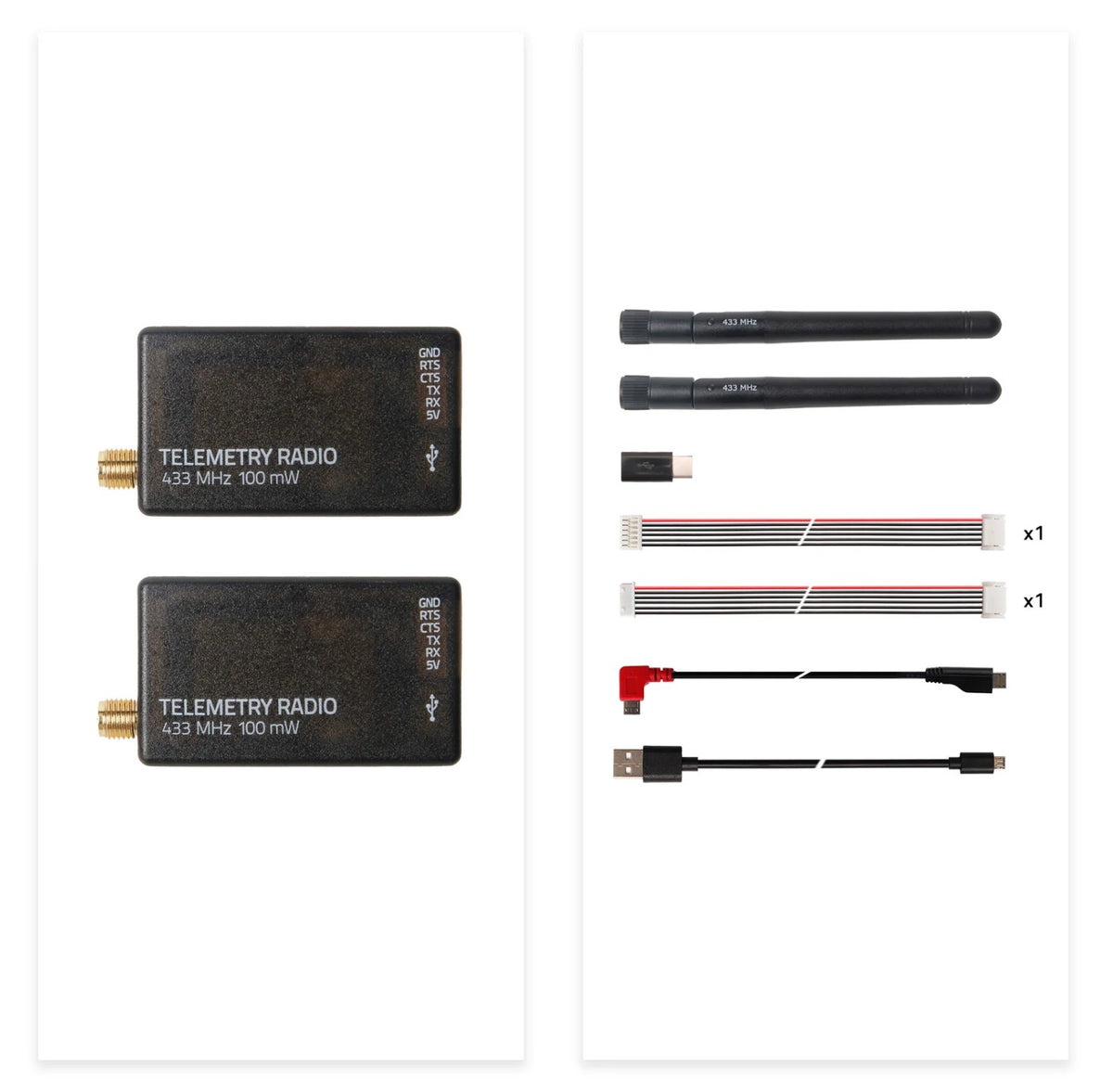

Packing List Includes:

  • 2 × SiK Telemetry Radio modules with antennas
  • 1 × Micro-USB to USB-A cable
  • 1 × Micro-USB to Micro-USB OTG adapter
  • 1 × Micro-USB to Type-C adapter
  • 1 × JST-GH-6P to JST-GH-6P cable
  • 1 × JST-GH-6P to Molex DF13 6P cable

The product has a warranty for1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
