| Parameter | Specification |
|---|---|

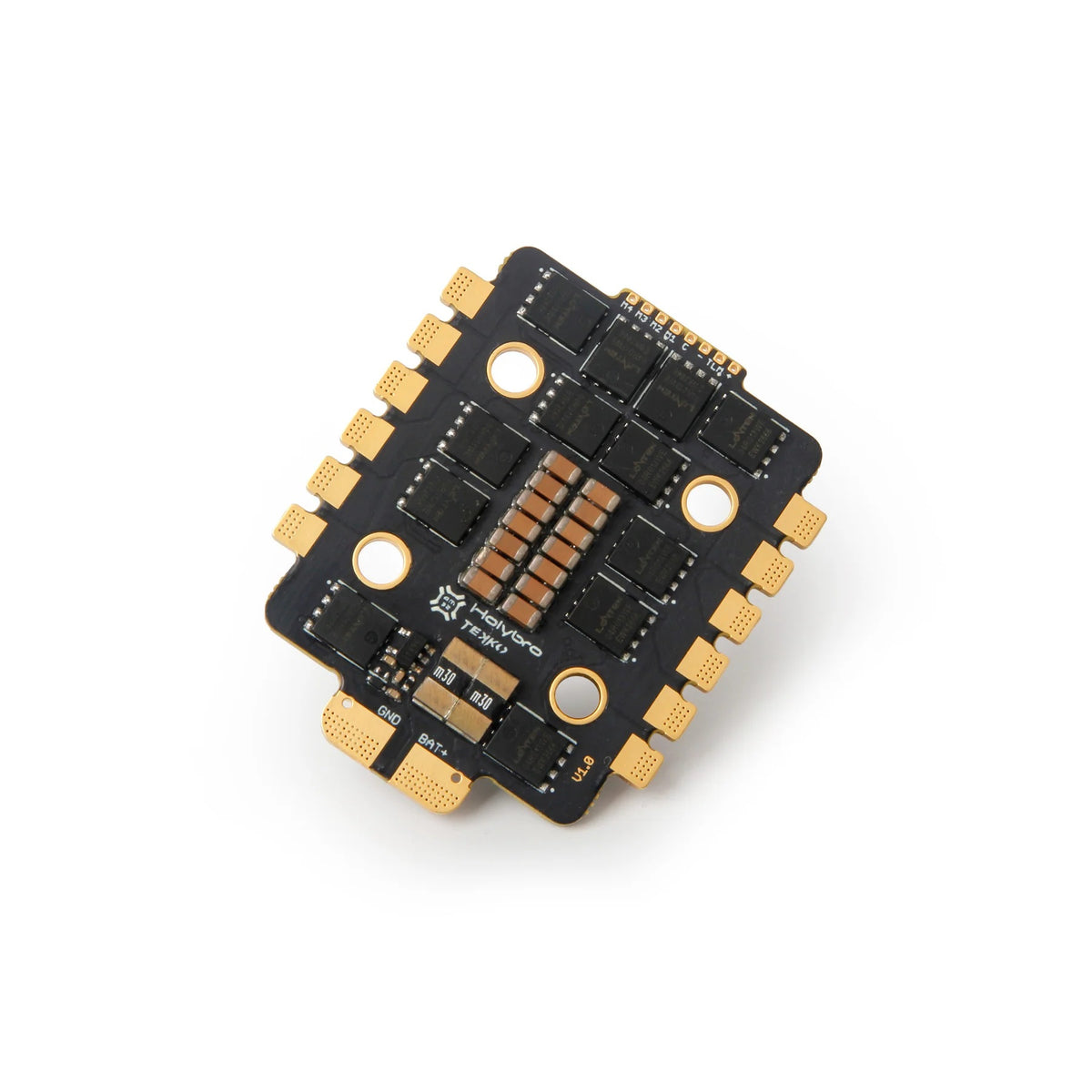

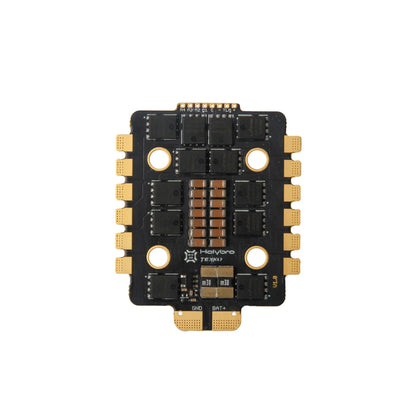

| Model | Tekko32 F4 4-in-1 Mini 50A ESC (AM32) |
| ESC Type | 4-in-1 Brushless Motor ESC |
| MCU | F4 MCU, 150 MHz |
| Continuous Current | 50 A × 4 |
| Burst Current | 60 A × 4 |
| Battery Support | 4S LiPo |
| PWM Frequency | 16 kHz–96 kHz |
| Digital Protocols | DShot 150/300/600/1200/2400 |
| Other Control Protocols | MultiShot, OneShot, ProShot, PWM |
| ESC Telemetry | Supported |
| Current Sensor | Onboard analog current sensor |
| Firmware | AM32 |
| Firmware Target | AM32_TEKKO32_4IN1_MINI_F421 |
| BEC | No output BEC |
| Capacitor | 1000 µF / 35 V included |
| Mounting Pattern | 20 × 20 mm |
| Mounting Hole Diameter | Approx. 3.6–3.8 mm, depending on specification revision |
| Dimensions | Approx. 32 × 40 mm according to current Holybro listing |
| Weight | Approx. 15–16 g, depending on revision/listing |
| Cooling | Individual metal heatsinks for MOSFETs |
| MOSFET Design | Low-resistance, low-heat-generation MOSFETs |
| Circuit Architecture | Separate drive and control circuits |
| Included Accessories | Anti-vibration grommets, 1000 µF capacitor and 8-pin cables |
| Primary Application | FPV, multirotor and high-performance UAVs |
Holybro's current official listing identifies this Mini 50A version as 4S, while some older/third-party listings describe it as 4–6S. For a design or product datasheet, I would use the current manufacturer's specification (4S) unless you can identify the exact hardware revision.
Key Feature:
- All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink
- New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- Separate drive & control circuit, reducing the electrical interference to the control circuit
Specification:
- Continuous current: 50A x4
- Burst current: 60A x4
- Battery support: 4-6S
- PWM frequency: 8k to 96k
- Support DShot 150/300/600/1200
- Support MultiShot/OneShot/Proshot/PWM, etc.
- ESC Telemetry Support
- Onboard analog current sensor
- AM32 Firmware
- 1000uf 35v capacitor included
- Mounting holes: 3.8mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
- Dimensions: 46.6x38x6mm / Weight: 15.6g
- Firmware target: AM32_F4A_4IN1_F421
Pin Diagram:
Packing List Includes:
- 1 x Tekko32 F4 4 in 1 mini 50A ESC
- 4 x M2 Anti-Vibration Silicone Grommet Insert
- 4 x M3 Anti-Vibration Silicone Grommet Insert
- 1 x Electrolytic capacitor: 1000uF 35v
- 1 x 8pin to 8pin 1mm pitch 65mm cable
- 1 x 8pin to 8pin 1mm spacing 25mm cable
