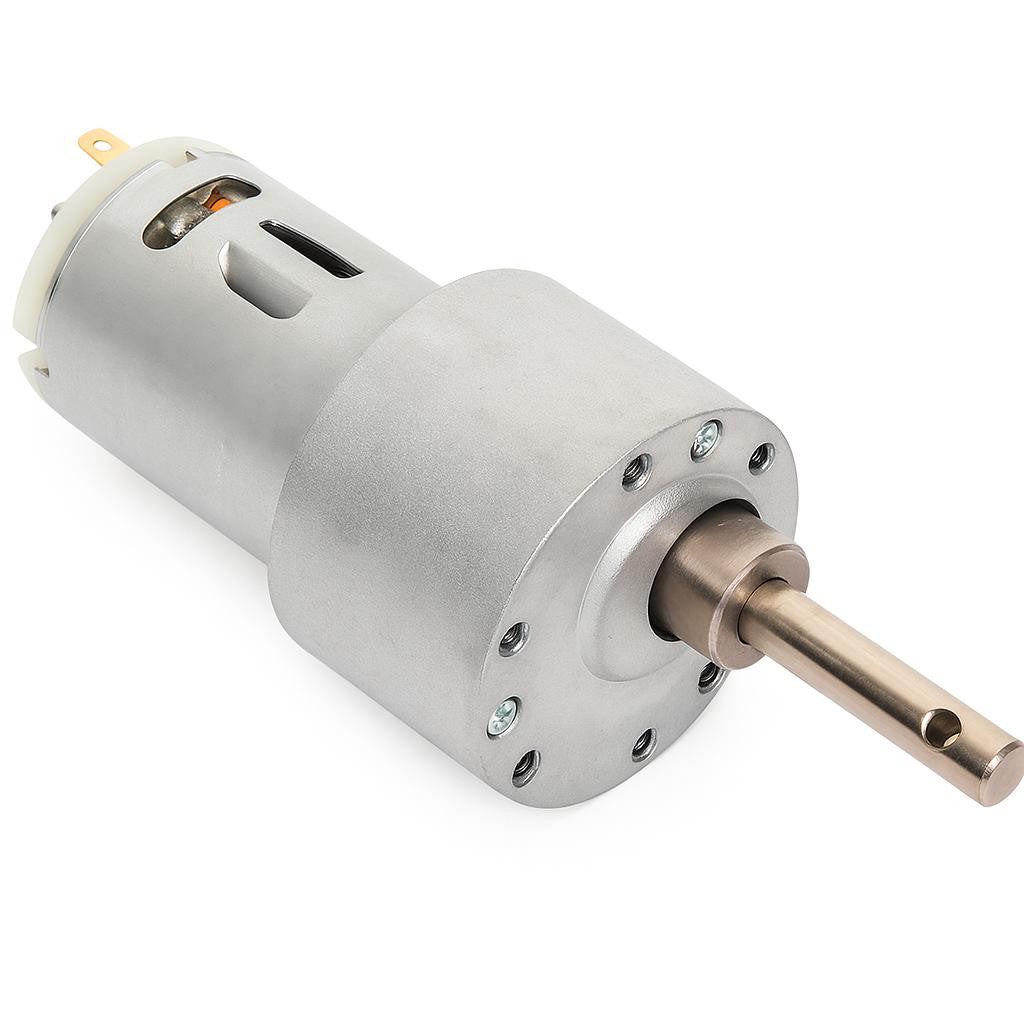

Johnson 12V 300rpm High Torque DC Geared Motor - Grade A

Johnson 12V 300rpm High Torque DC Geared Motor - Grade A

Availability: In stock
₹ 540.00 (Inc.GST)
₹ 540.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270056

Short Description:
  • Base Motor RPM: 18000
  • Operating Voltage: 6-18V
  • Rated Torque: 3.5 kg-cm
  • Stall Torque: 5.0 kg-cm
  • Gearbox Dimensions: 25 L ×37 W mm
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Type Brushed DC Geared Motor
Rated Voltage 12V DC
Speed 300 RPM
Base Motor RPM 18000 RPM
Rated Torque 3.5 kg·cm
Stall Torque 5.0 kg·cm
No Load Current ~300 mA
Load Current (Max) ~900 mA
Shaft Diameter 6 mm
Shaft Length 30 mm
Gearbox Size 37 mm
Weight ~160 g
Mounting Side shaft with holes
Applications Robotics, automation, DIY

The Xrobo.in Johnson 12V 300rpm High Torque DC Geared Motor - Grade A combines a robust Johnson‑type brushed DC motor with an all‑metal reduction gearbox to deliver high torque at low speeds. Designed for 6–18 V operation (12 V nominal), it offers stable output power for mechanisms such as drive wheels, lift actuators, and feeders. The 6 mm D‑shaft simplifies coupling with hubs and pulleys, while the front face mounting pattern allows rigid, slop‑free installation. Use a suitably rated H‑bridge or DC motor driver with over‑current protection to handle stall conditions during heavy loads.

Key Features:

High Torque Output

  • 3.5 kg·cm rated torque at 300 RPM
  • Suitable for load-bearing applications

Metal Gearbox Construction

  • Durable metal gears for long life
  • Improved wear resistance with metal bush shaft

Wide Voltage Range

  • Operates between 6V – 18V DC
  • Optimized for 12V operation

Stable Speed Performance

  • 300 RPM output speed (±20% tolerance)
  • Smooth and consistent motion

Easy Mounting Design

  • Side shaft with multiple mounting holes
  • Shaft hole for easy coupling

Compact & Efficient

  • Compact size with good torque-to-weight ratio
  • Suitable for portable and embedded systems

Applications

  • Robotics & robotic vehicles
  • Automatic doors & actuators
  • Pan-tilt camera systems
  • Industrial automation & conveyors
  • DIY projects & smart devices
  • Vending machines & appliances

Packing List Includes:

  • 1 x Johnson 12V 300rpm High Torque DC Geared Motor - Grade A

The product has a warranty for 1 Months against manufacturing defects only.

  • However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
