| Category | Specification |
|---|---|
| Product Name | Mach3 5-Axis CNC Interface Board |
| Board Type | CNC Breakout / Interface Board |
| Supported Axes | 5 Axis |
| Control Software | Mach3 |
| Communication Interface | Parallel Port (DB25 LPT) |
| Isolation Type | High-speed Optocoupler Isolation |
| Input Voltage | 12V–24V DC |
| Output Signal Type | STEP / DIR |
| Compatible Drivers | Stepper & Servo Drivers |
| Relay Outputs | Yes |
| Spindle Control | Supported |
| Emergency Stop Support | Yes |
| Limit Switch Support | Yes |
| PWM Output | Supported |
| Protection | Optically isolated inputs |
| Board Material | FR4 PCB |
| Application Type | CNC Automation |

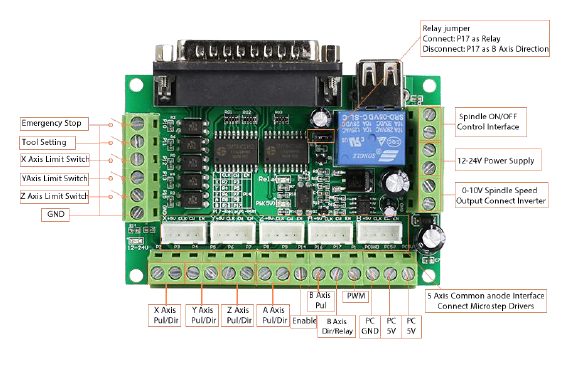

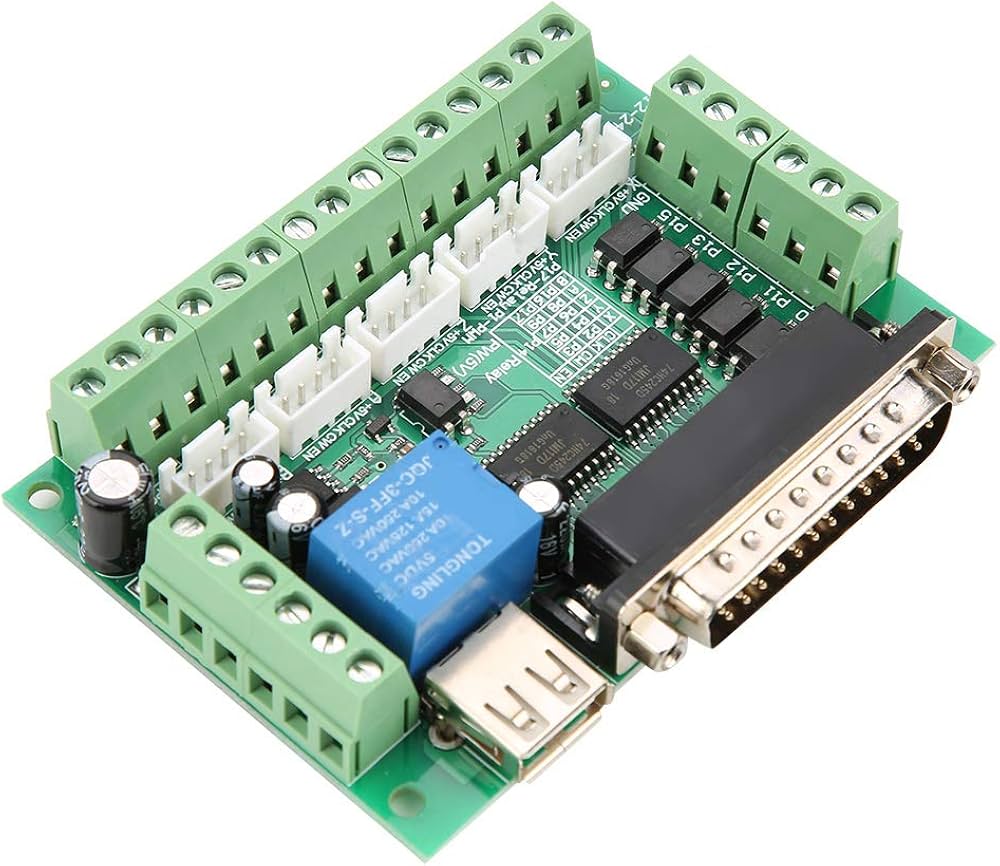

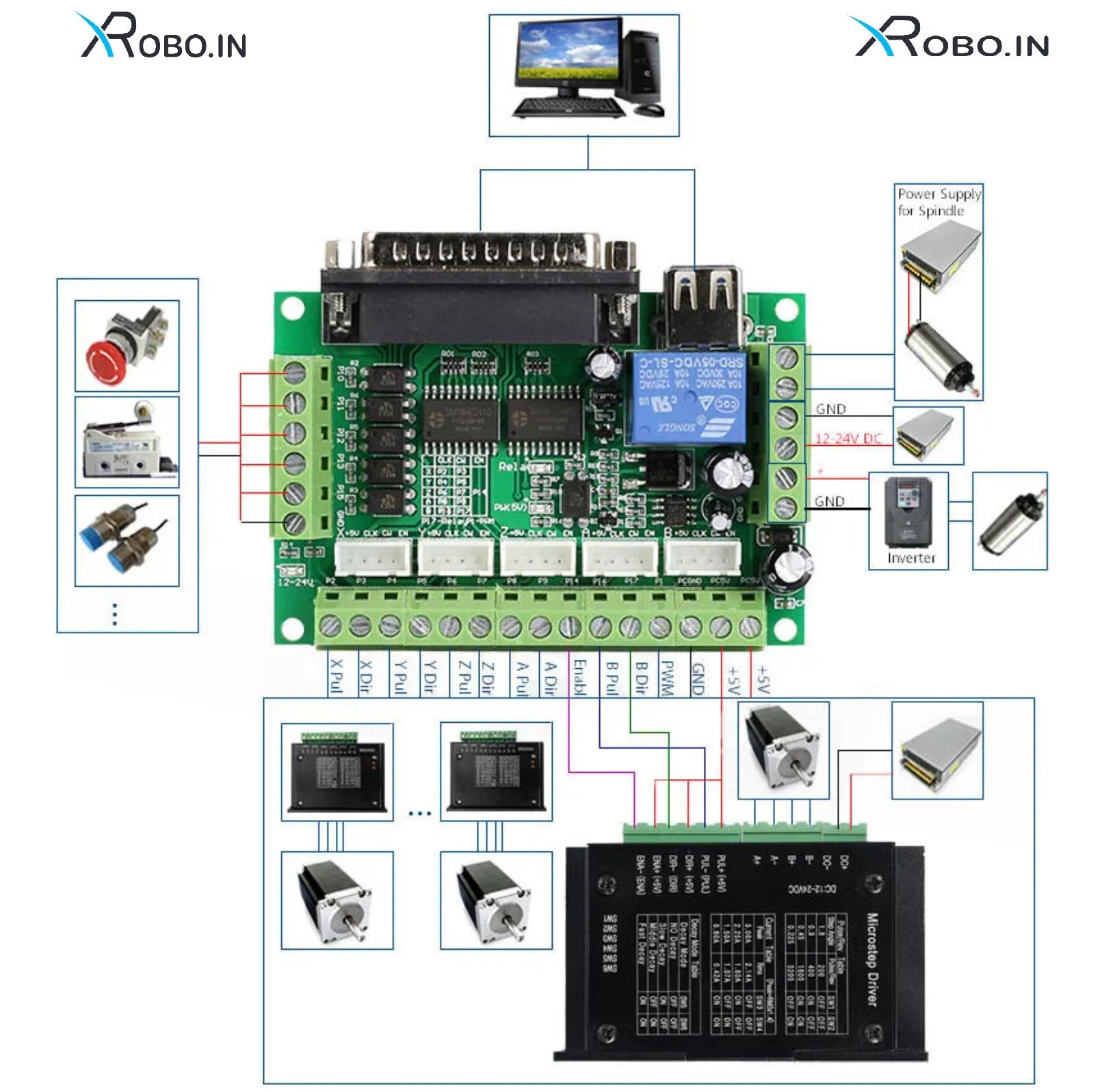

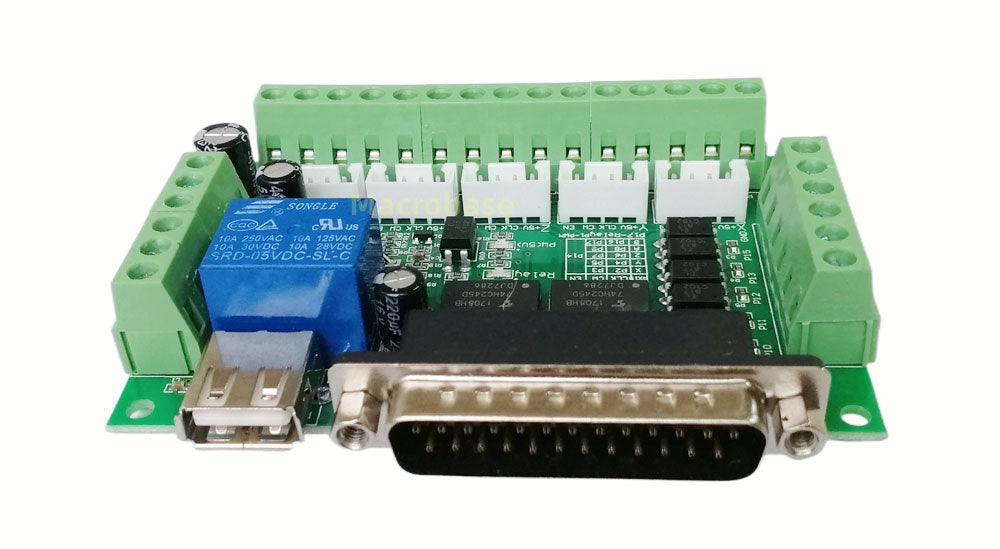

The Mach3 5‑Axis Optocoupler CNC Interface Board is a CNC breakout/interface board designed to connect a computer running Mach3 CNC software with:
- Stepper motor drivers
- Servo drivers
- Spindle control systems
- CNC machines
The board supports:
- 5-axis CNC control
- Optocoupler isolation
- Relay spindle control
- Limit switch connections
Applications:
- CNC Routers
- Wood cutting
- Acrylic cutting
- PCB routing
Packing List Includes:
- 1 x MACH3 CNC Board
