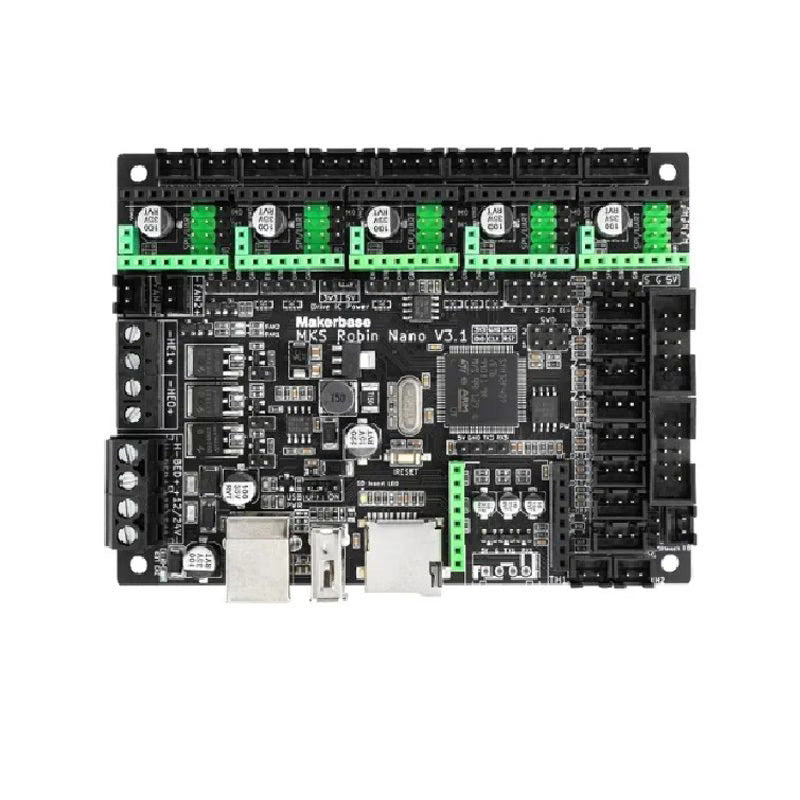

Makerbase MKS Robin Nano V3 With MKS TS35-R Capacitive Touchscreen Control Board Combo

Makerbase MKS Robin Nano V3 With MKS TS35-R Capacitive Touchscreen Control Board Combo

Availability: In stock
₹ 6,030.00 (Inc.GST)
₹ 6,030.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

5760016

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 15 Days Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information

Controller Board : Specifications

Item Type 32-bit 3D Printer Controller Board
Model Robin Nano V3.1
Input Voltage (VDC) 12–24
Microcontroller STM32F407VET6
RAM 192 KB
Motor Interface 6 Axis
Supported Virtual USB Device, USB Disk
Length (mm) 110
Width (mm) 85
Weight (g) 84
Shipping Weight 0.115 kg
Shipping Dimensions 17.5 × 13 × 2 cm

Touchscreen : Specifications

Item Type Touch Screen Display
Model TS35-R
Input Voltage (VDC) 12–24
Display Size (Inch) 3.5
Display Resolution (pixel) 320 x 240
Application: 3D Printers, CNC Machines, Laser Machines
Compatible Controller Board: MKS DLC32
Touch Interface Capacitive Touch
Length (mm) 110.3
Width (mm) 65
Weight (g) 68
Dimensions (L x W x H) mm 170 x 130 x 130
Installation Tool-Free, Easy Replacement
Shipping Weight 0.19 kg
Shipping Dimensions 18 × 14 × 10 cm

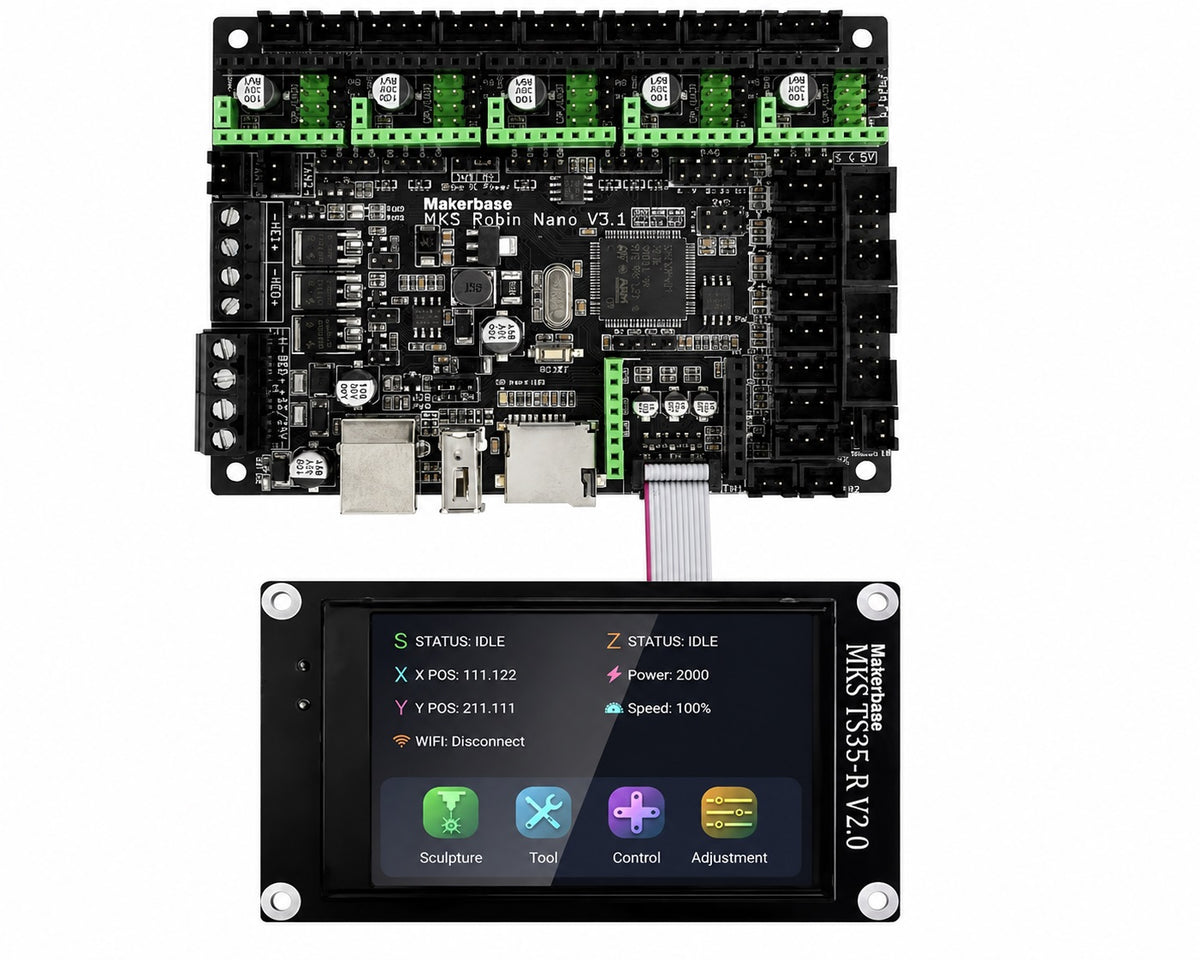

The Makerbase MKS Robin Nano V3.1 + MKS TS35-R combination provides a complete control interface for DIY and upgraded 3D printers. The Robin Nano V3.1 is a 32-bit controller based on the STM32F407VET6 MCU running at 168 MHz, supporting multiple stepper axes, dual Z-axis operation, heating control, PWM fans, USB/TF storage and Wi-Fi connectivity. The MKS TS35-R adds a 3.5-inch 320 × 240 capacitive touchscreen for intuitive printer control and monitoring.

Key Features:

  • 32-bit, 168 MHz Cortex-M4 controller
  • Dual-Z support
  • Two extruder/heater outputs
  • Three thermistor inputs
  • Two PWM fan outputs
  • TMC driver UART/SPI support
  • USB and TF-card printing
  • Optional MKS Wi-Fi
  • 3.5-inch TS35-R color touchscreen
  • Suitable for Marlin, Klipper and RepRapFirmware
  • Designed for 12–24 V 3D printers

Applications:

  • DIY 3D printers
  • FDM 3D printers
  • 3D printer controller upgrades
  • Custom 3D printer builds
  • Multi-axis motion-control systems
  • Dual-Z-axis 3D printers
  • Maker and STEM projects
  • Professional 3D-printer development
  • 3D-printer firmware development and testing

Packing List Includes:

  • 1 x MKS Robin Nano V3 + TS35-R Touch Screen Control Board Combo

The product has a warranty for 15 Days against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
