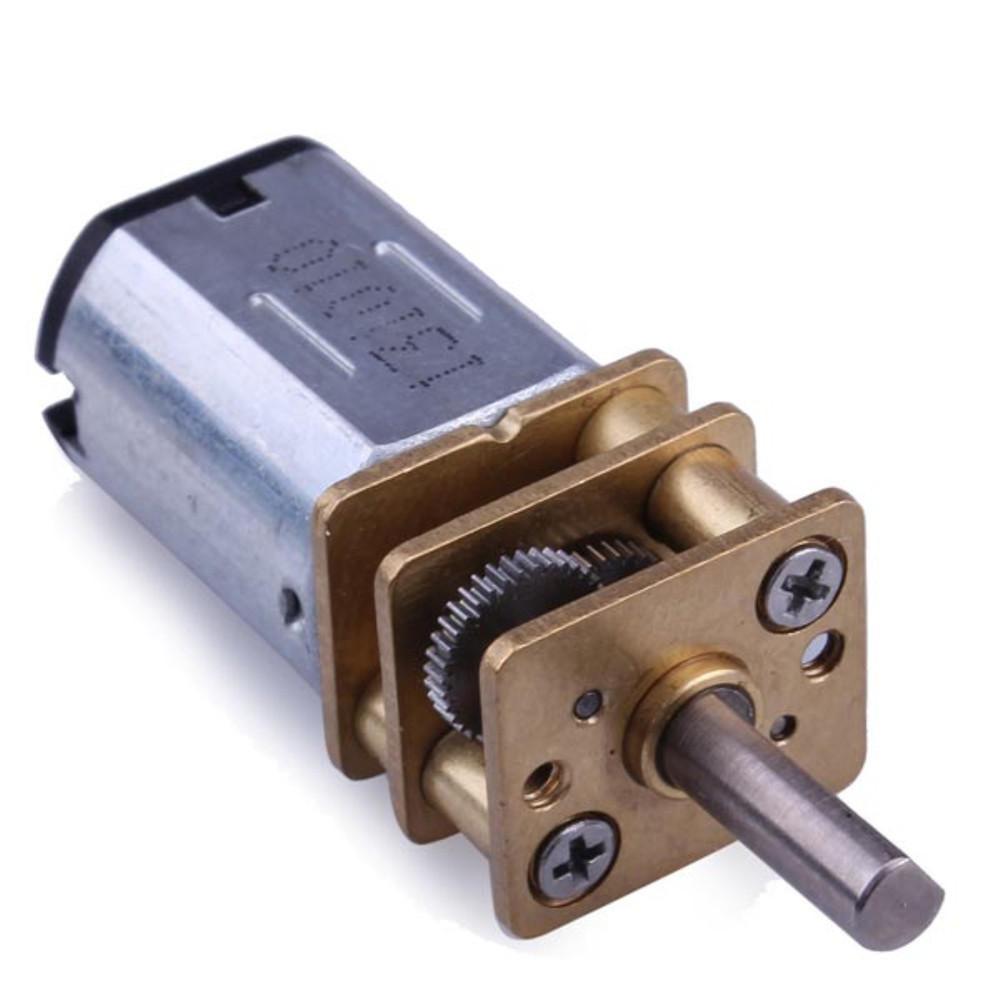

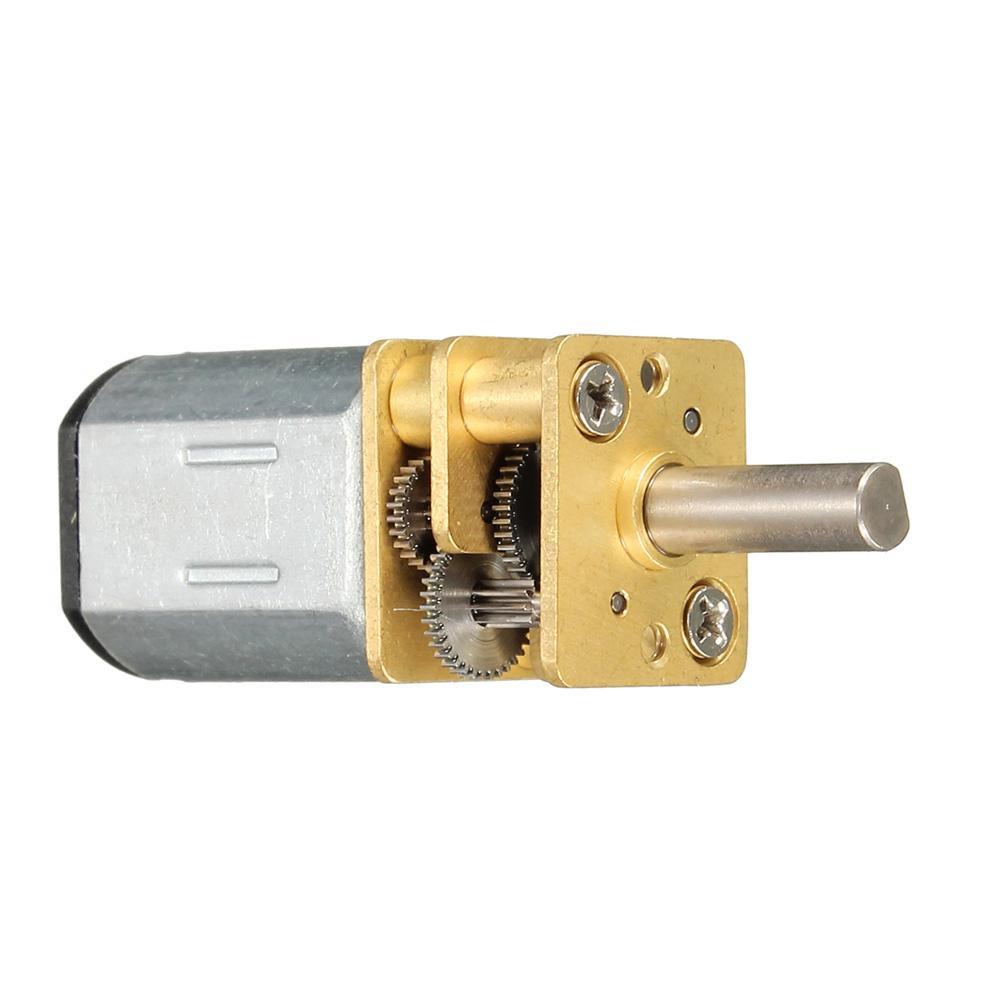

N20 Micro Metal Gear 12v 100 RPM Dc Motor

N20 Micro Metal Gear 12v 100 RPM Dc Motor

Availability: In stock (Shipped within 2-3 days)
₹ 230.00 (Inc.GST)
₹ 230.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270501

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Details
Model GA12 N20
Motor Type Brushed DC Metal Gear Motor
Operating Voltage 6–12V DC
Rated Speed 100 RPM
Gearbox Type Metal Spur Gearbox
Rated Torque ~0.55 kg-cm
Stall Torque ~1.8 kg-cm
No-Load Current 0.06 mA
Stall Current 0.67–1 A
Shaft Type D-Type Single Shaft
Shaft Diameter 3 mm
Shaft Length 10 mm
Motor Body Size ~12 × 10 mm
Total Length ~26 mm
Screw Size M3
Weight 10–12 g
Gear Ratio Approx. 150:1
Gear Material Metal

The N20 Micro Gear 100RPM 6V to 12 V DC Motor is a compact metal-geared DC motor designed for robotics, automation, and miniature motion-control applications. It combines a small brushed DC motor with a precision metal gearbox to deliver high torque at low speed in a very compact form factor. It is commonly used in line followers, robotic arms, smart locks, and micro mobile robots.

Key Features:

  • Compact miniature form factor
  • High torque at low RPM
  • Durable all-metal gearbox
  • Lightweight construction
  • Easy wheel mounting using D-shaft
  • Suitable for battery-powered robots

Packing List Includes:

  • 1 x N20 Micro Metal Gear 12v 100 RPM Dc Motor

The product has a warranty for 1 Months against manufacturing defects only.

  • However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
