NEMA17 16Kgcm STEPPER MOTOR With TB6600 Stepper Driver

NEMA17 16Kgcm STEPPER MOTOR With TB6600 Stepper Driver

Availability: In stock
₹ 2,700.00 (Inc.GST)
₹ 2,700.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9370573

View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information

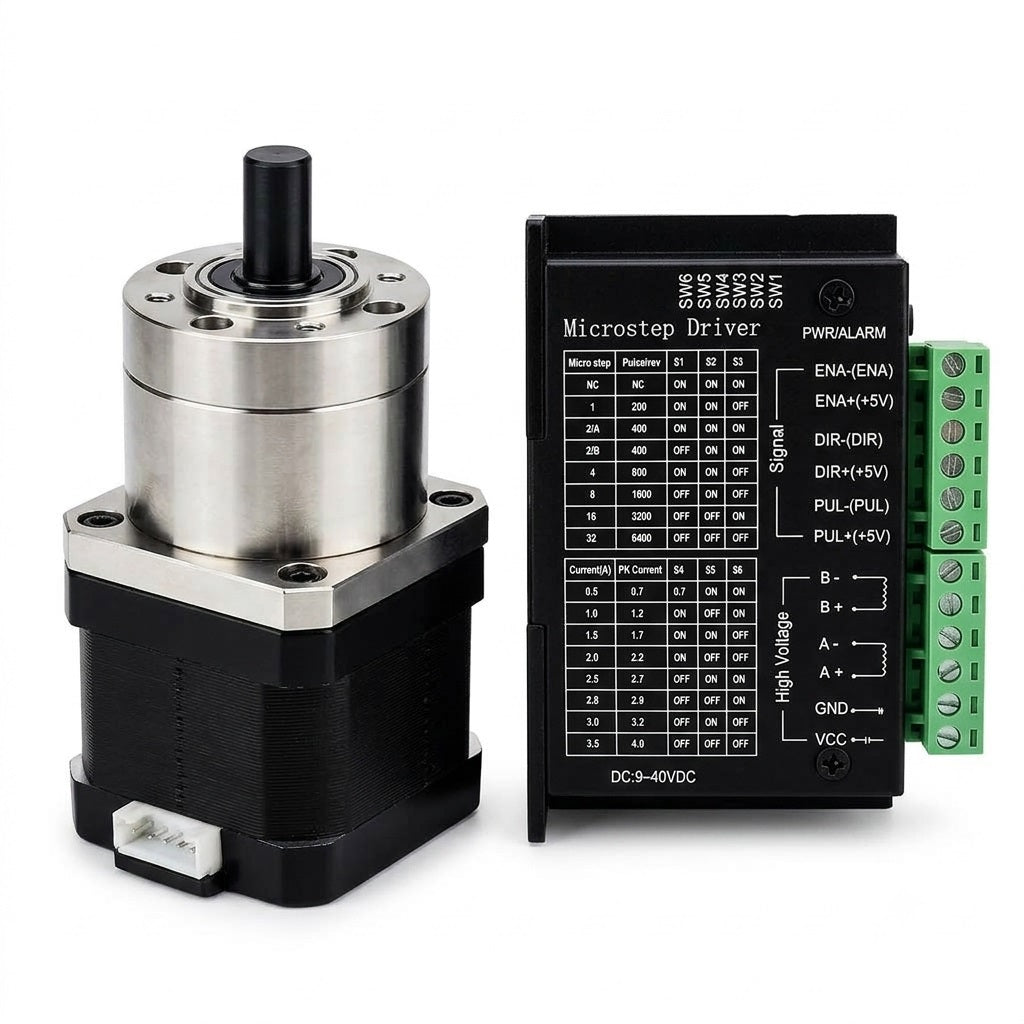

NEMA17 16Kgcm STEPPER MOTOR With Gearbox

Parameter Specification
Motor Type Hybrid Stepper Motor with Planetary Gearbox
Frame Size NEMA 17 (42 × 42 mm)
Step Angle 1.8°
Holding Torque 16 kg·cm
Gear Type Planetary Gearbox
Gear Ratio Typically 1:3.71
Rated Voltage 2.6V
Rated Current ~1.5A
Phase 2 Phase
Number of Leads 4 wires
Shaft Type D-shaft
Gearbox Output Shaft Diameter 8 mm
Mounting Dimension Standard NEMA17 mounting
Motor Length Approx. 40 mm (excluding gearbox)
Gearbox Length Approx. 30 mm
Operating Temperature -20°C to +50°C
Insulation Class Class B
Application CNC, robotics, automation, positioning systems

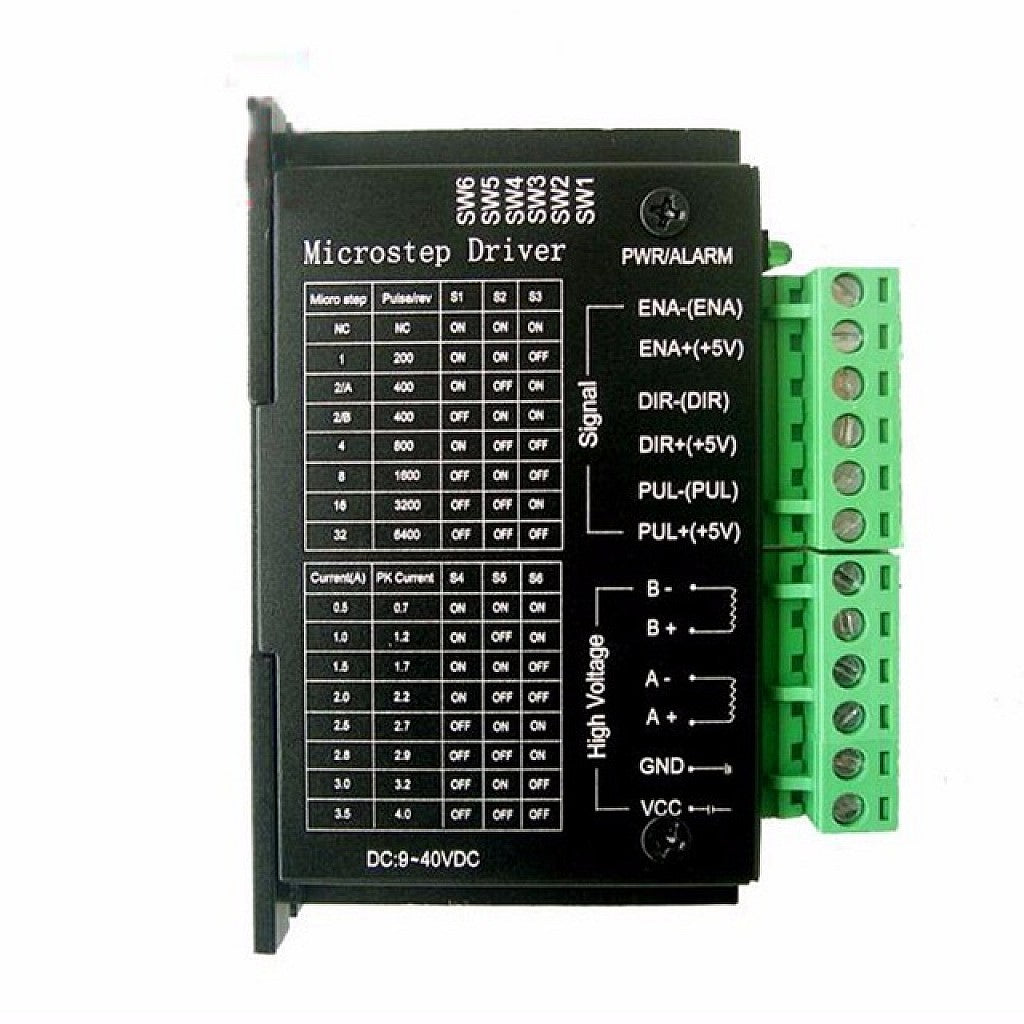

TB6600 Stepper Motor Driver

Parameter Specification
Product Name TB6600 Stepper Motor Driver
Driver Type Bipolar Stepper Motor Driver
Control Method PWM Constant Current Chopper
Input Voltage 9 V – 42 V DC
Output Current 0.5 A – 4.0 A (adjustable via DIP switch)
Recommended Current Range 0.5 A – 3.5 A (continuous stable operation)
Compatible Motors NEMA 17, NEMA 23, NEMA 24, NEMA 34 stepper motors
Microstepping Options Full step, 1/2, 1/4, 1/8, 1/16, 1/32
Pulse Input Frequency Up to 20 kHz
Logic Signal Voltage 3.3 V – 5 V compatible
Control Interface STEP / DIR / ENABLE
Protection Features Over-current protection, over-temperature protection, short-circuit protection
Cooling Method Aluminum heat sink (passive cooling)
Operating Temperature –10°C to +45°C
Storage Temperature –40°C to +70°C
Driver Efficiency Up to 96%
Isolation Optically isolated inputs
Weight Approx. 150 – 250 g
Dimensions Approx. 96 × 71 × 28 mm
Housing Industrial aluminum enclosure

The NEMA17 16 kg-cm Stepper Motor with TB6600 Stepper Motor Driver is a reliable and high-torque motion-control solution designed for applications requiring precise positioning, controlled movement, and increased output torque. The integrated gearbox provides torque multiplication, making the motor suitable for applications that require higher torque at controlled output speeds.The included TB6600 Stepper Motor Driver provides accurate step and direction control, adjustable current settings, and micro stepping support for smooth and stable motor operation.

Key Features:

  • Motor Type: NEMA17 Geared Stepper Motor
  • Output Torque: Up to 16 kg-cm
  • Gearbox: Integrated reduction gearbox for increased output torque
  • Driver: TB6600 Stepper Motor Driver
  • High Torque Output: Suitable for applications requiring increased mechanical force
  • Precise Positioning: Provides accurate and repeatable movement
  • Smooth Operation: Micro stepping support helps reduce vibration and improve motion quality
  • Adjustable Current: TB6600 driver can be configured according to motor requirements
  • Step/Direction Control: Compatible with CNC controllers, microcontrollers, PLCs, and automation systems
  • Controlled Output Speed: Geared design is suitable for applications requiring higher torque at lower speeds

Applications:

  • CNC machines and routers
  • Robotics and robotic mechanisms
  • Automation equipment
  • Linear positioning systems
  • Pick-and-place machines
  • Conveyor and material-handling systems
  • Camera positioning mechanisms
  • DIY CNC and motion-control projects
  • Industrial automation applications

Packing List Includes:

  • 1 x NEMA17 16 kg-cm Geared Stepper Motor
  • 1 x TB6600 Stepper Motor Driver

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
