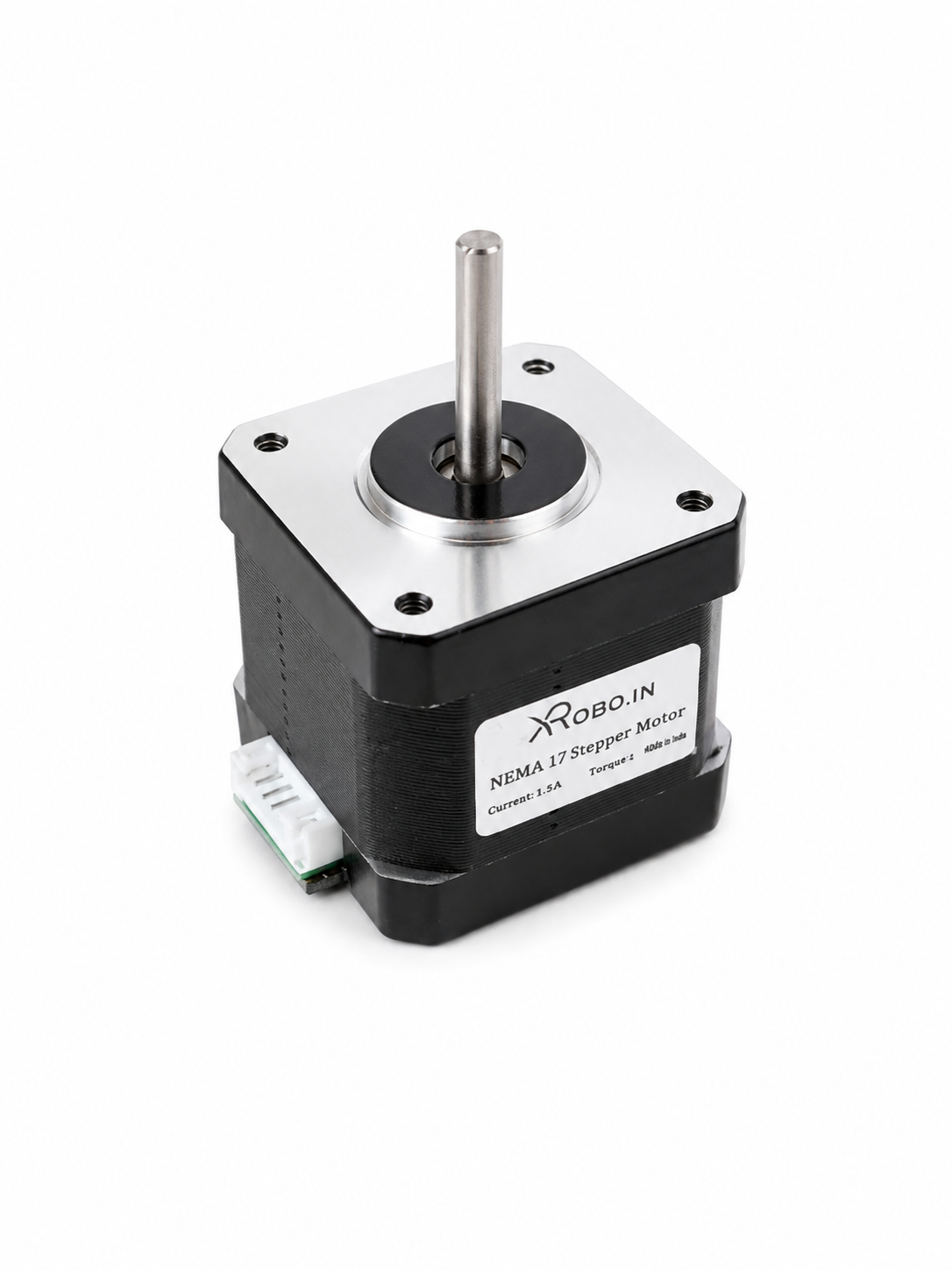

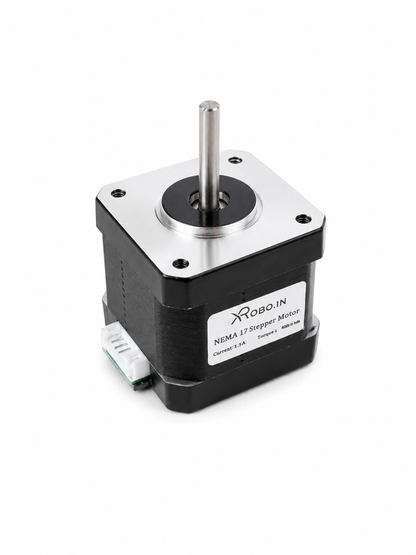

NEMA17 5.6Kgcm STEPPER MOTOR With D-Shaft Premium Quality

NEMA17 5.6Kgcm STEPPER MOTOR With D-Shaft Premium Quality

Availability: In stock
₹ 649.00 (Inc.GST)
₹ 649.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270007

Short Description:

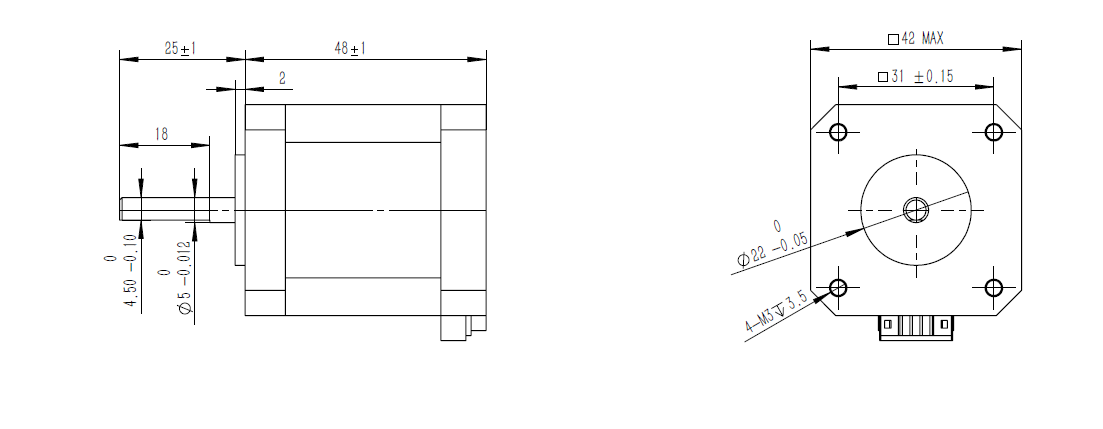

  • Frame Size: Nema 17 ( 42 x 42mm)
  • Body Length: 48mm
  • Shaft Diameter: 5mm
  • Shaft Length: 25mm
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information

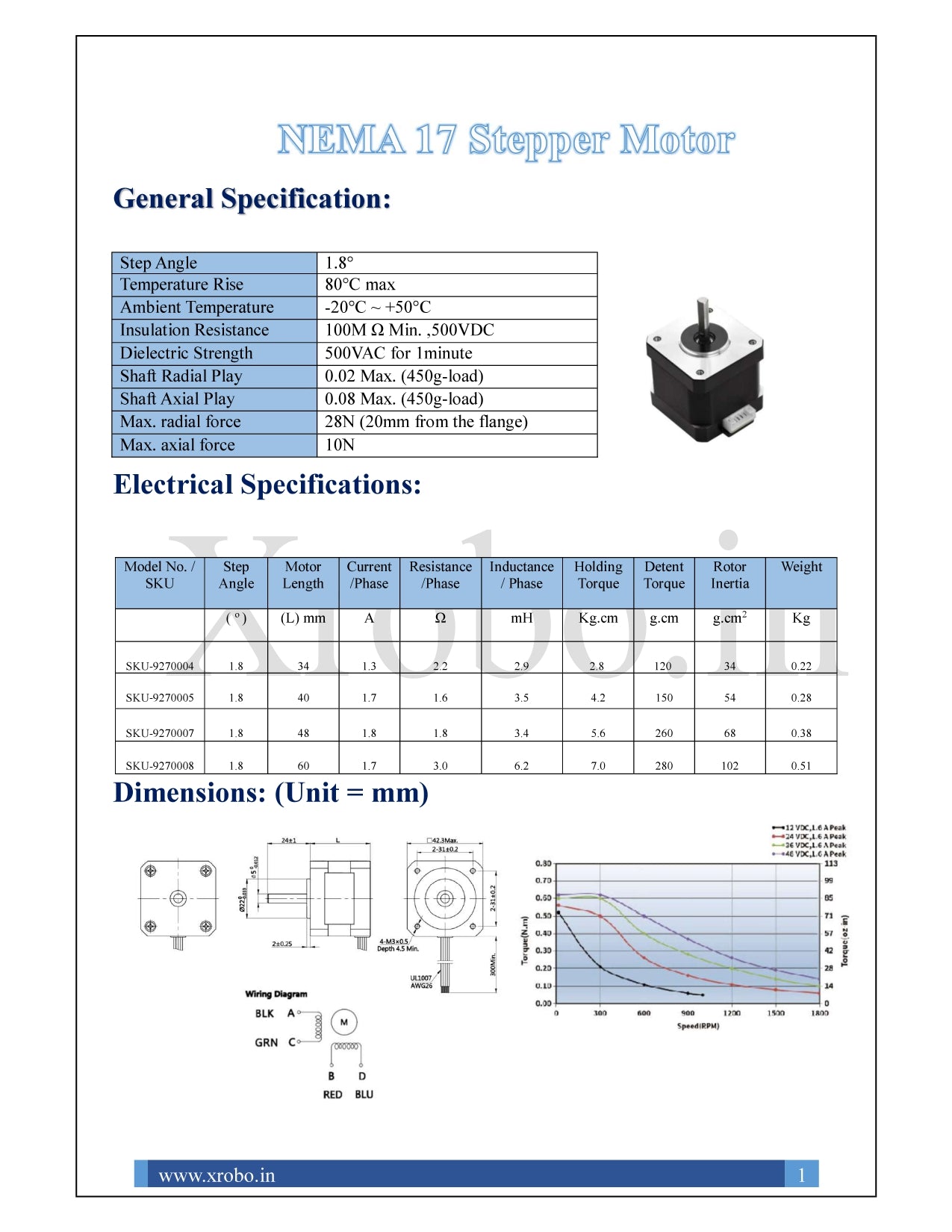

Parameter

Specification

Motor Type

Bipolar Hybrid Stepper (NEMA17)

Frame Size

42 × 42 mm

Body Length

48 mm (typ.)

Step Angle

1.8° (200 steps/rev)

Holding Torque

5.6 Kg·cm (0.549 Nm)

Rated Current/Phase

1.8 A

Phase Resistance

1.80 Ω

Phase Inductance

3.4 mH

Shaft

5 mm D-shaft, Single Shaft

Rotor Inertia

50–60 g·cm²

Detent Torque

0.2–0.6 Kg·cm (typ.)

Insulation Class

Class B (130°C)

Applications

3D printers, CNC axes, linear stages, robotics


    This high-torque NEMA17 stepper motor delivers approximately 0.56 N·m holding torque with a standard 1.8° step angle, making it suitable for heavy-duty motion control applications. Designed for industrial environments, it offers strong torque output, stable stepping performance, and reliable operation in demanding CNC and automation systems.

    Application Areas:

    • CNC routers and milling machines
    • Industrial automation equipment
    • Robotics and motion control systems
    • Large-format 3D printers
    • Pick-and-place machinery
    • Precision positioning systems

    Wires Connection:

    • Red : A+
    • Green : A-
    • Yellow : B+
    • Blue : B-

    Packing List Includes:

    • 1 x NEMA17 5.6kg-cm Stepper Motor

    The product has a warranty for 1 year against manufacturing defects only.

    However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
