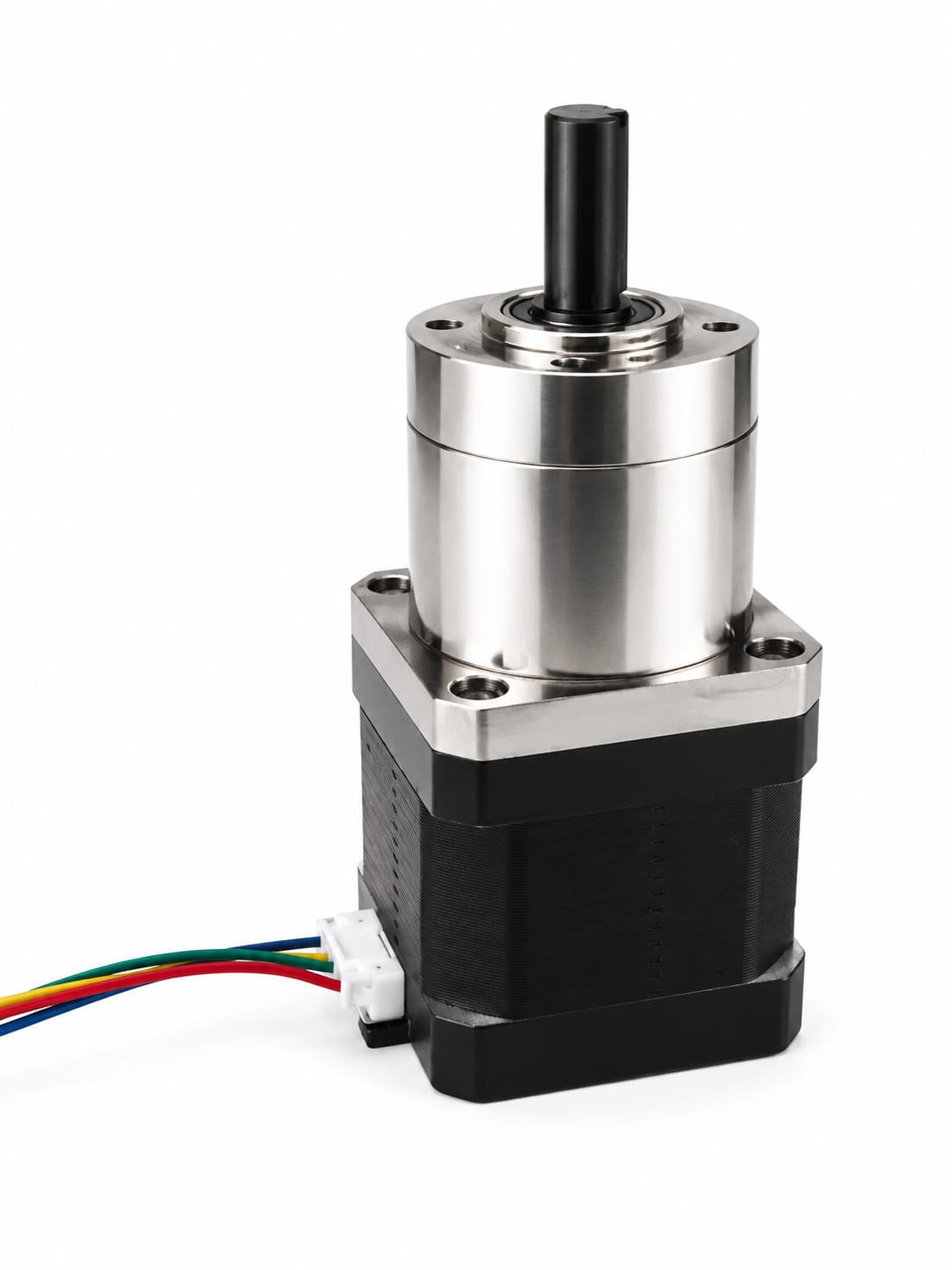

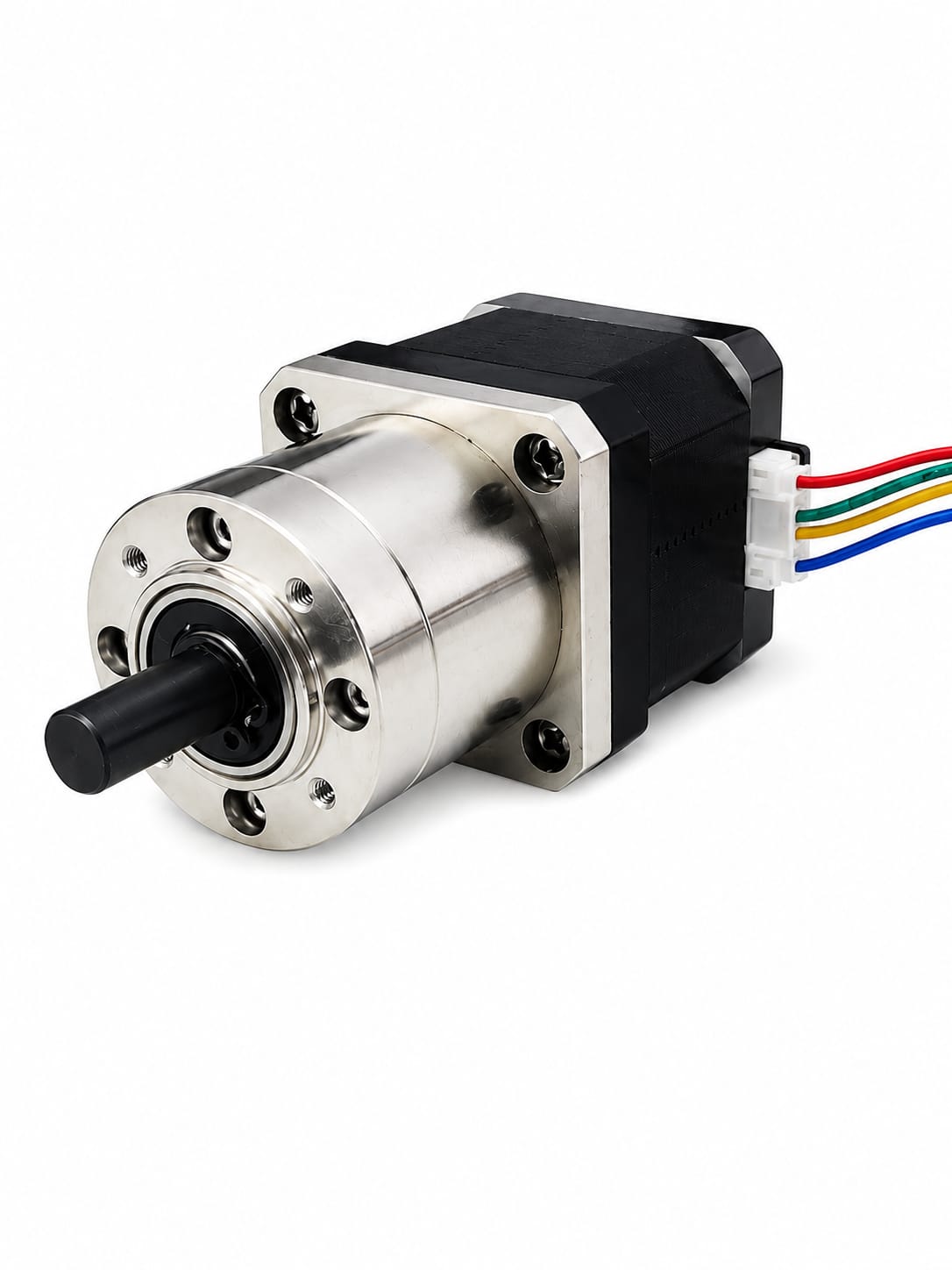

NEMA17 60Kgcm STEPPER MOTOR With Gearbox

NEMA17 60Kgcm STEPPER MOTOR With Gearbox

Availability: In stock
₹ 2,790.00 (Inc.GST)
₹ 2,790.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270024

Short Description:
  • Frame Size: Nema 17 ( 42 x 42mm)
  • Body Length: 85mm
  • Shaft Diameter: 8mm
  • Shaft Length: 21 mm
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Motor Type Hybrid Stepper Motor with Planetary Gearbox
Frame Size NEMA 17 (42 × 42 mm)
Step Angle 1.8°
Holding Torque 60 kg·cm
Gear Type Planetary Gearbox
Gear Ratio Typically 1:19
Rated Voltage 2.6V
Rated Current ~1.5A
Phase 2 Phase
Number of Leads 4 wires
Shaft Type D-shaft
Gearbox Output Shaft Diameter 8 mm
Mounting Dimension Standard NEMA17 mounting
Motor Length Approx.  48mm (excluding gearbox)
Gearbox Length Approx. 37 mm
Operating Temperature -20°C to +50°C
Insulation Class Class B
Application CNC, robotics, automation, positioning systems

This high-torque NEMA17 stepper motor with gearbox delivers approximately 6.0 N·m holding torque with a standard 1.8° step angle, making it suitable for heavy-duty motion control applications. Designed for industrial environments, it offers strong torque output, stable stepping performance, and reliable operation in demanding CNC and automation systems.

Application Areas:

  • CNC routers and milling machines
  • Industrial automation equipment
  • Robotics and motion control systems
  • Large-format 3D printers
  • Pick-and-place machinery
  • Precision positioning systems

Wires Connection:

  • Green : A+
  • Black : A-
  • Red : B+
  • Blue : B-

Packing List Includes:

  • 1 x NEMA17 60kg-cm Stepper Motor

The product has a warranty for 1 Year months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
