NEMA23 10Kgcm STEPPER MOTOR with XRD970 Stepper Driver

NEMA23 10Kgcm STEPPER MOTOR with XRD970 Stepper Driver

Availability: In stock
₹ 3,685.00 (Inc.GST)
₹ 3,685.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9370551

View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information

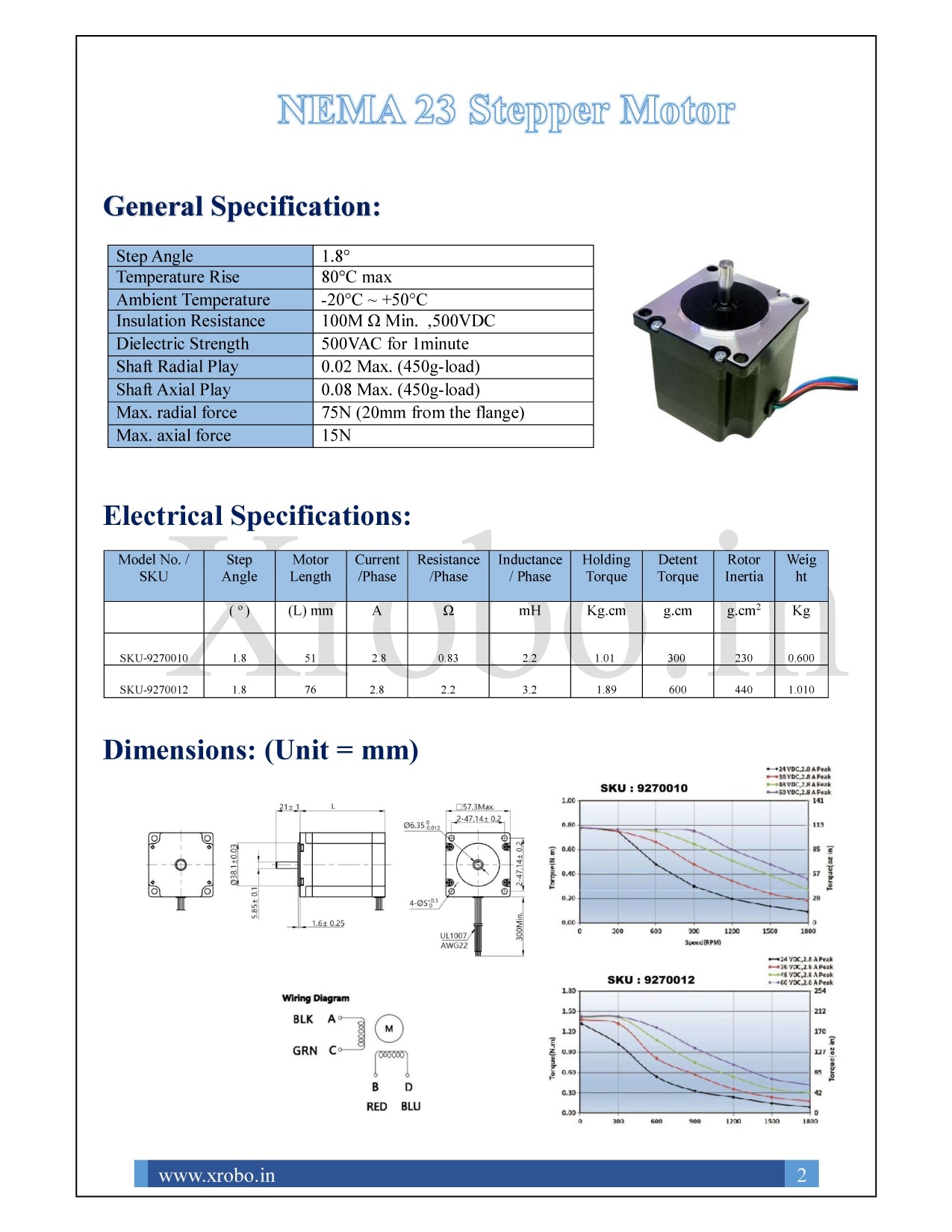

Stepper Motor Specifications

Parameter

Specification

Motor Type

Bipolar Hybrid Stepper (NEMA23)

Frame Size

57 × 57 mm

Body Length

51 mm

Step Angle

1.8°

Holding Torque

10.0 Kg·cm

Rated Current/Phase

2.8 A

Phase Resistance

0.83 Ω

Phase Inductance

2.2 mH

Shaft

6.35 mm D-shaft, Single Shaft

Rotor Inertia

2300 g·cm²

Detent Torque

0.2–0.6 Kg·cm (typ.)

Insulation Class

Class B (130°C)

Applications

3D printers, CNC axes, linear stages, robotics

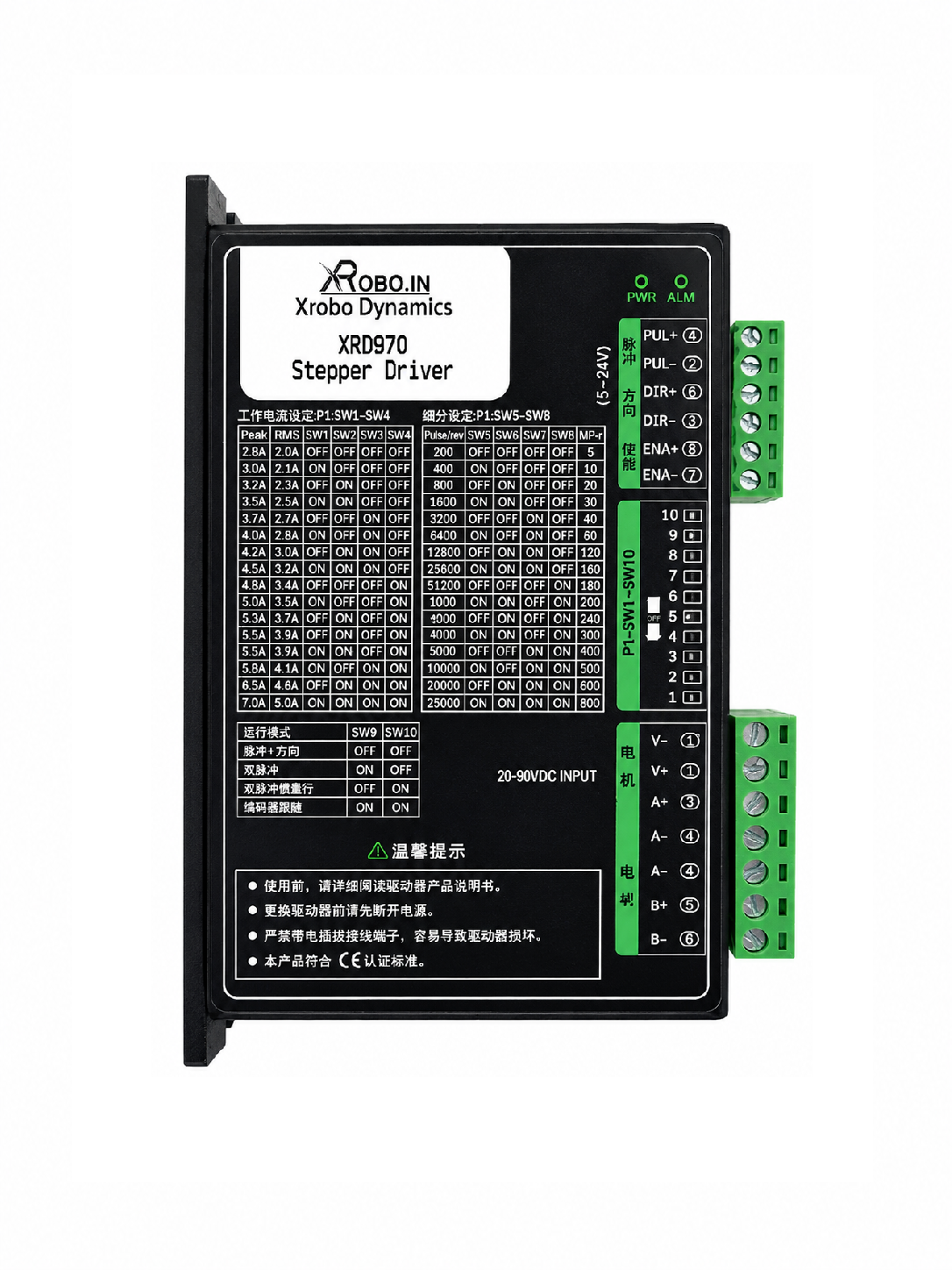

    XRD970 Hybrid Driver Specifications

    Parameter Specification
    Model XRD970
    Motor Type 2-Phase Closed-Loop Stepper / Hybrid Servo
    Compatible Motors NEMA 17, NEMA 23
    Supply Voltage 20–90 VDC
    Control Mode Pulse & Direction (PUL/DIR/ENA)
    Continuous self-running Yes, functions available
    Input Signal 5–24 V opto-isolated
    Encoder Feedback Closed-loop encoder support
    Microstep Settings Configurable via DIP switches
    Protection Over-current, over-voltage, over-temperature, encoder fault
    Applications CNC, 3D Printer, Laser Engraver, Pick & Place, Automation Equipment

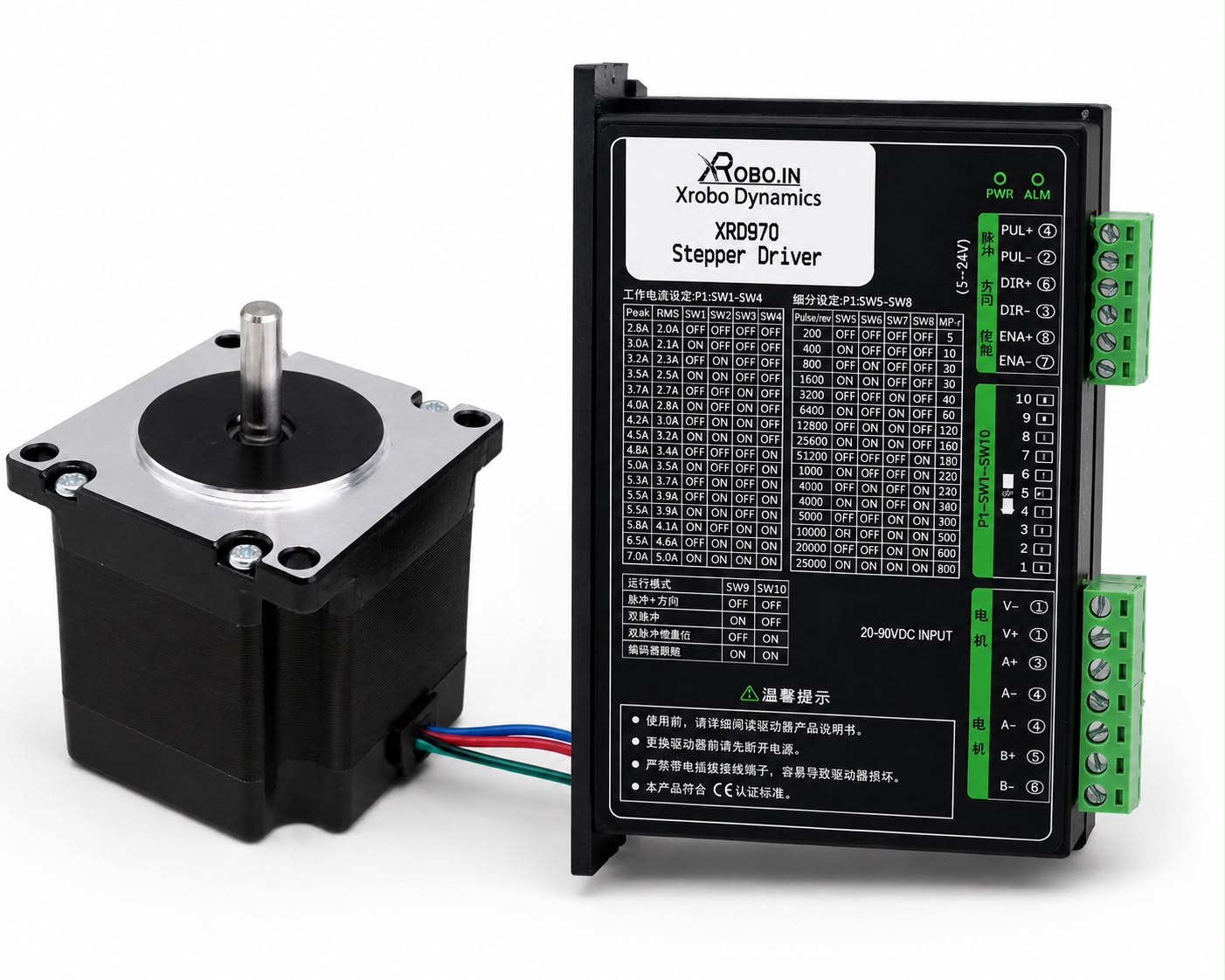

    NEMA23 10 kg· cm Stepper Motor with XRD970 Digital Stepper Motor Driver set is a high-performance motion control solution designed for CNC machines, automation equipment, robotics, laser engraving systems, and industrial positioning applications. The combination of a high-torque.

    Key Features:

    • High torque 10 Kg-cm NEMA23 stepper motor
    • Precision 1.8° step resolution
    • Durable D-shaped output shaft
    • Smooth operation with reduced resonance
    • Digital hybrid driver technology
    • Adjustable motor current and micro step settings
    • Improved speed performance compared with basic stepper drivers
    • Suitable for industrial automation and CNC applications
    • Easy integration with CNC controllers, PLCs, Arduino, and motion control boards
    • High-performance XRD970 Hybrid Driver digital micro stepping driver

    Packing List Includes:

    • 1 x NEMA23 10Kgcm D-Shaft Stepper Motor
    • 1 x XRD970 Stepper Driver

    The product has a warranty for 1 year against manufacturing defects only.

    However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
