NEMA23 22Kgcm Dual Shaft STEPPER MOTOR With 8mm D-Shaft

NEMA23 22Kgcm Dual Shaft STEPPER MOTOR With 8mm D-Shaft

Availability: In stock
₹ 1,999.00 (Inc.GST)
₹ 1,999.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270011

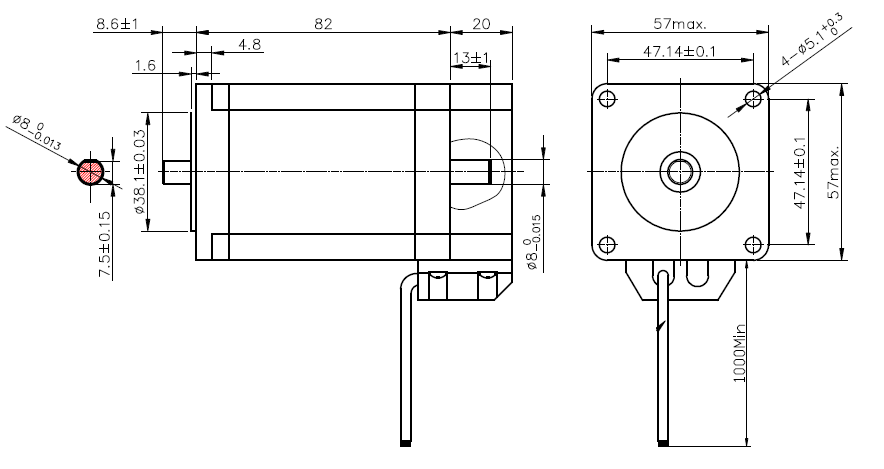

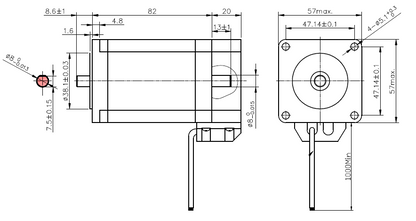

Short Description:
  • Frame Size: Nema 23 ( 57x 57mm)
  • Body Length: 82mm
  • Shaft Diameter: 8mm
  • Shaft Length: 8.6mm
  • Back Shaft Length: 13mm
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information

Parameter

Specification

Motor Type

Bipolar Hybrid Stepper (NEMA23)

Frame Size

57 × 57 mm

Body Length

82 mm (typ.)

Step Angle

1.8° (200 steps/rev)

Holding Torque

22.0 Kg·cm (2.157 Nm)

Rated Current/Phase

4.2 A

Phase Resistance

0.51 Ω

Phase Inductance

1.6 mH

Shaft

8 mm D-shaft, Dual Shaft

Rotor Inertia

220–480 g·cm²

Detent Torque

0.2–0.6 Kg·cm (typ.)

Insulation Class

Class B (130°C)

Applications

3D printers, CNC axes, linear stages, robotics

This high-torque NEMA23 stepper motor delivers approximately 2.2 N·m holding torque with a standard 1.8° step angle, making it suitable for heavy-duty motion control applications. Designed for industrial environments, it offers strong torque output, stable stepping performance, and reliable operation in demanding CNC and automation systems.

Application Areas:

  • CNC routers and milling machines
  • Industrial automation equipment
  • Robotics and motion control systems
  • Large-format 3D printers
  • Pick-and-place machinery
  • Precision positioning systems

Wires Connection:

  • Black : A+
  • Green : A-
  • Red : B+
  • Blue : B-

Packing List Includes:

  • 1 x NEMA23 22Kgcm Dual Shaft STEPPER MOTOR

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
