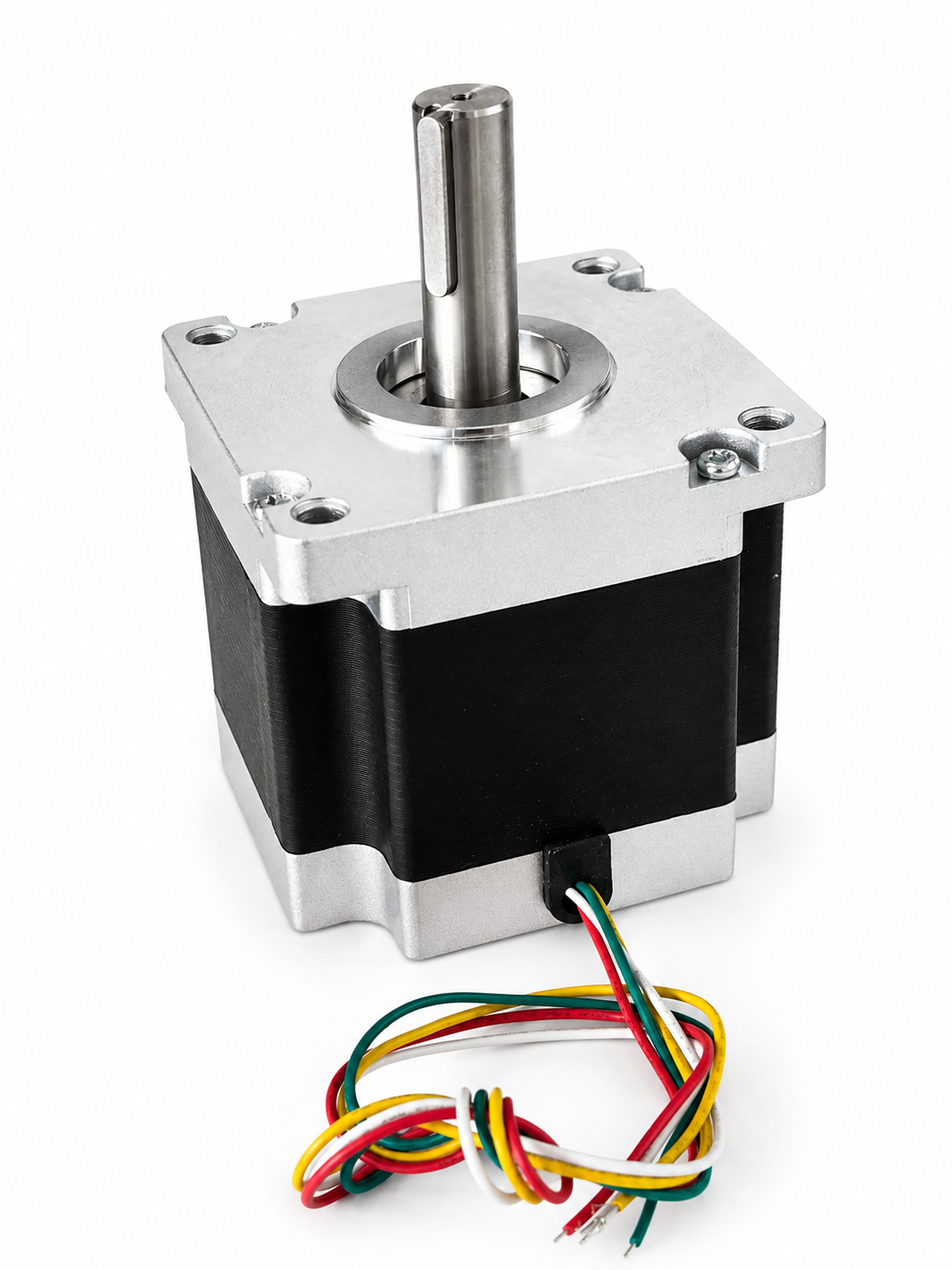

NEMA34 110Kgcm STEPPER MOTOR With Key-Shaft

NEMA34 110Kgcm STEPPER MOTOR With Key-Shaft

Availability: Out of stock
₹ 7,080.00 (Inc.GST)
₹ 7,080.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270019

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information

Parameter

Specification

Motor Type

Bipolar Hybrid Stepper (NEMA34)

Frame Size

110 × 110 mm

Body Length

98 mm

Step Angle

1.8° (200 steps/rev)

Holding Torque

110.0 Kg·cm (11.7 Nm)

Rated Current/Phase

5.6 A

Phase Resistance

0.90 Ω

Phase Inductance

12.0 mH

Shaft

19 mm keyed, Single Shaft

Rotor Inertia

800–1500 g·cm²

Detent Torque

0.2–0.6 Kg·cm (typ.)

Insulation Class

Class B (130°C) 80K Max.

Applications

3D printers, CNC axes, linear stages, robotics

The Xrobo.in NEMA34 110Kgcm STEPPER MOTOR With Key-Shaft is a NEMA34 hybrid stepper motor engineered for precise, closed-loop–ready motion control in CNC, 3D printing, and robotics. The 1.8° step angle provides 200 discrete steps per revolution, with micro stepping support for ultra‑smooth motion. Optimized copper windings and high-grade laminations achieve strong holding torque with controlled heating. The shaft geometry improves coupling grip and minimizes slip, and the standard NEMA faceplate ensures drop‑in integration. Best suited for linear stages, extruders, small CNC axes, and pick‑and‑place actuation where positional accuracy and repeatability matter.

Package Includes:

1 x NEMA34 110Kgcm STEPPER MOTOR With Key-Shaft

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
