Stepper Motor Specifications
| Parameter | Specification |
|---|---|

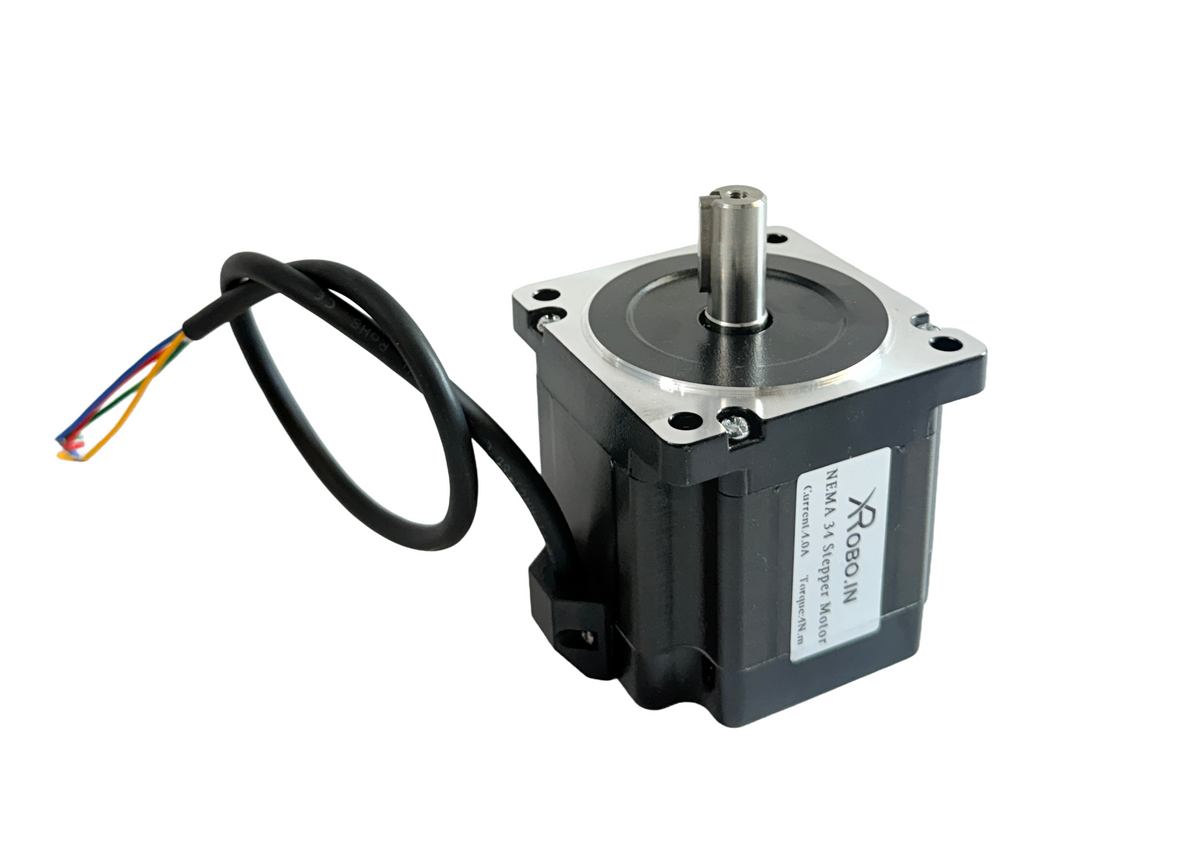

| Product Name | NEMA 34 Hybrid Stepper Motor (86×86×80 mm) |
| Motor Type | 2-Phase Bipolar Hybrid Stepper Motor |
| Frame Size | NEMA 34 (86 × 86 mm) |
| Step Angle | 1.8° per step |
| Rated Current / Phase | 6.0 A |
| Phase Resistance | ~0.37 Ω |
| Phase Inductance | ~6.5 mH |
| Holding Torque | ~4.5 N·m |
| Rotor Inertia | ~1400 g·cm² |
| Number of Leads | 4 wires (A+, A−, B+, B−) |
| Shaft Type | Keyed shaft |
| Shaft Diameter | ~14 mm + Key |
| Shaft Length | ~32 mm |
| Body Length | ~80 mm |
| Lead Wire Length | ~400 mm |
| Weight | ~2.3 kg |
| Insulation Class | Class B |
| Operating Temperature | −20 °C to +50 °C |
| Typical Applications | CNC machinery, automation, robotics, motion control |
Worm Gearbox Specifications
| Parameter | Specification |
|---|---|
| Worm Model |
|
