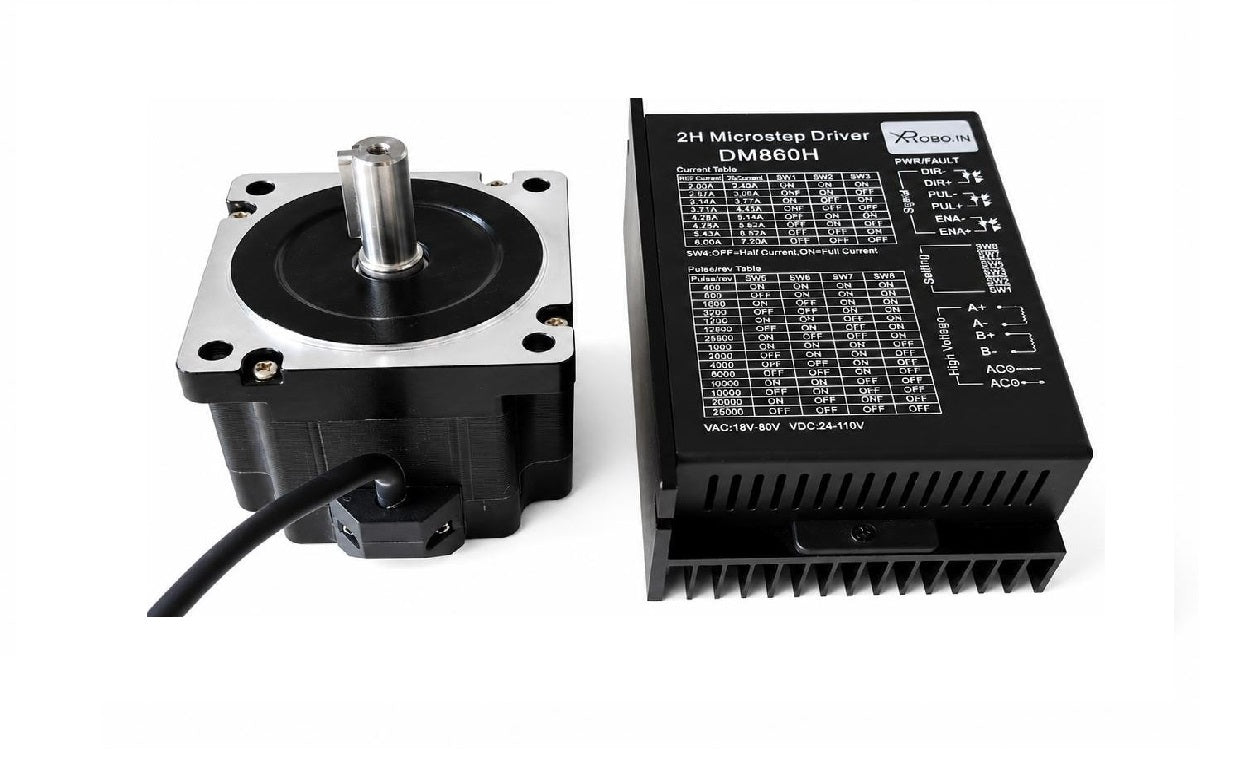

NEMA34 35Kgcm STEPPER MOTOR with DM860H Driver

NEMA34 35Kgcm STEPPER MOTOR with DM860H Driver

Availability: In stock
₹ 4,335.00 (Inc.GST)
₹ 4,335.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9370550

View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information

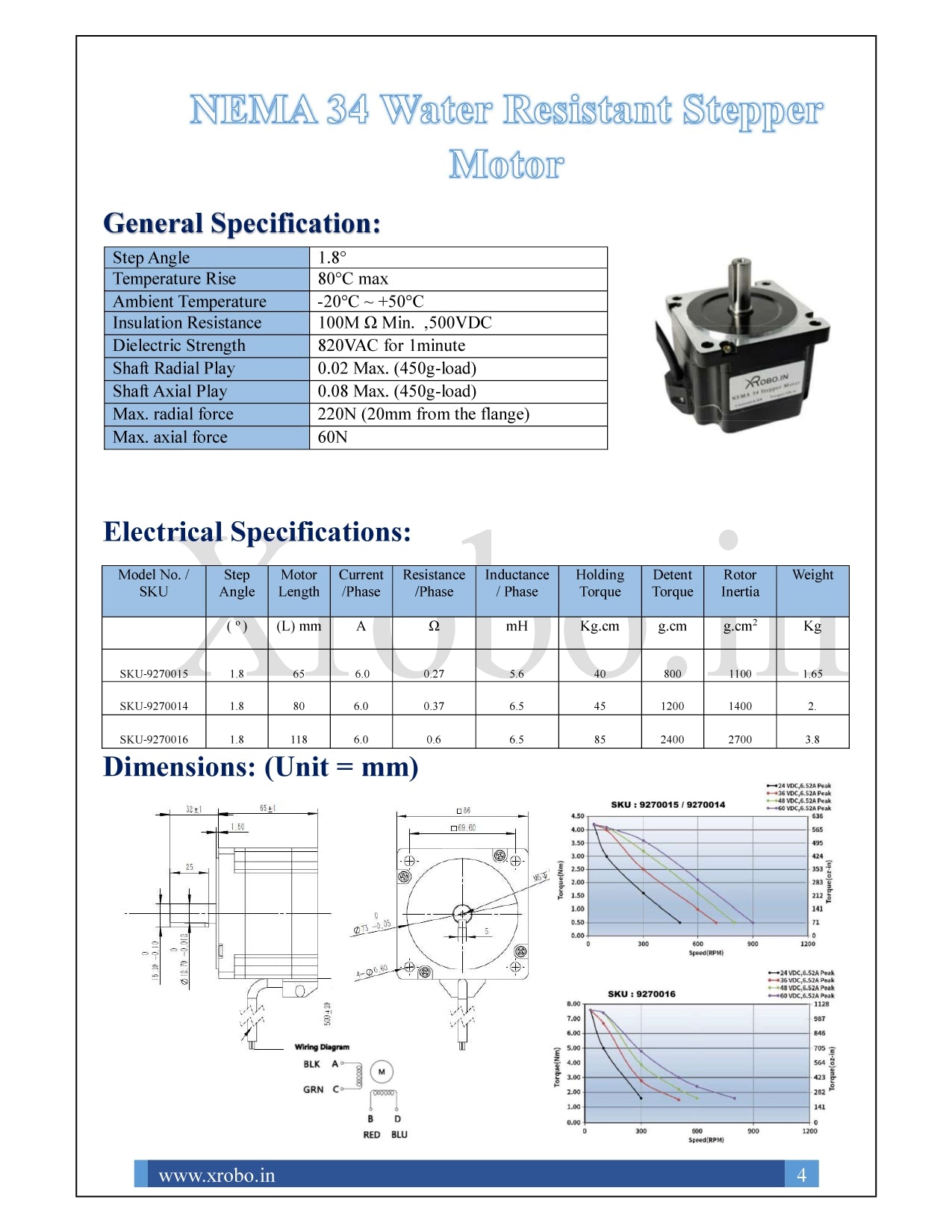

Stepper Motor Specifications

Parameter Specification
Motor Type Hybrid Bipolar Stepper Motor
Frame Size NEMA34 (86 × 86 mm)
Holding Torque 35 kg·cm (≈3.43 Nm)
Step Angle 1.8° (200 steps/revolution)
Number of Phases 2 Phase
Shaft Type Single Shaft
Shaft Diameter 12.7mm + Key
Rated Current 6 A
Insulation Class Class B
Insulation Resistance ≥100 MΩ (500 VDC)
Operating Temperature -20°C to +50°C

DM860H Driver Specifications

Parameter Specification
Model DM860H
Driver Type Digital Microstepping Stepper Driver
Compatible Motors 2-Phase Bipolar Stepper Motors
Input Voltage 24–110 VDC or 18–80 VAC
Output Current 2.4–7.2 A
Pulse Frequency Up to 200 kHz
Microstep Resolution 400–25,600 Pulses/Rev
Control Mode Pulse & Direction (PUL/DIR) or CW/CCW
Logic Signal Voltage 5–24 V
Cooling Active Cooling Fan
Protection Overcurrent, Overvoltage, Undervoltage Protection

NEMA34 35 kg· cm Stepper Motor with DM860H Digital Stepper Motor Driver set is a high-performance motion control solution designed for CNC machines, automation equipment, robotics, laser engraving systems, and industrial positioning applications. The combination of a high-torque.

Key Features:

  • High-torque 35 kg·cm (3.43 Nm) NEMA34 stepper motor
  • High-performance DM860H digital microstepping driver
  • Smooth and low-noise operation
  • Adjustable current from 2.4 A to 7.2 A
  • Microstepping up to 25,600 pulses per revolution
  • Supports 24–110 VDC or 18–80 VAC input
  • Pulse/Direction and CW/CCW control modes
  • Integrated cooling fan for continuous operation
  • Built-in overcurrent, overvoltage, and under voltage protection

Packing List Includes:

  • 1 × NEMA34 35 kgcm Stepper Motor
  • 1 × DM860H Stepper Driver

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
