| Parameter | Specification |
|---|---|

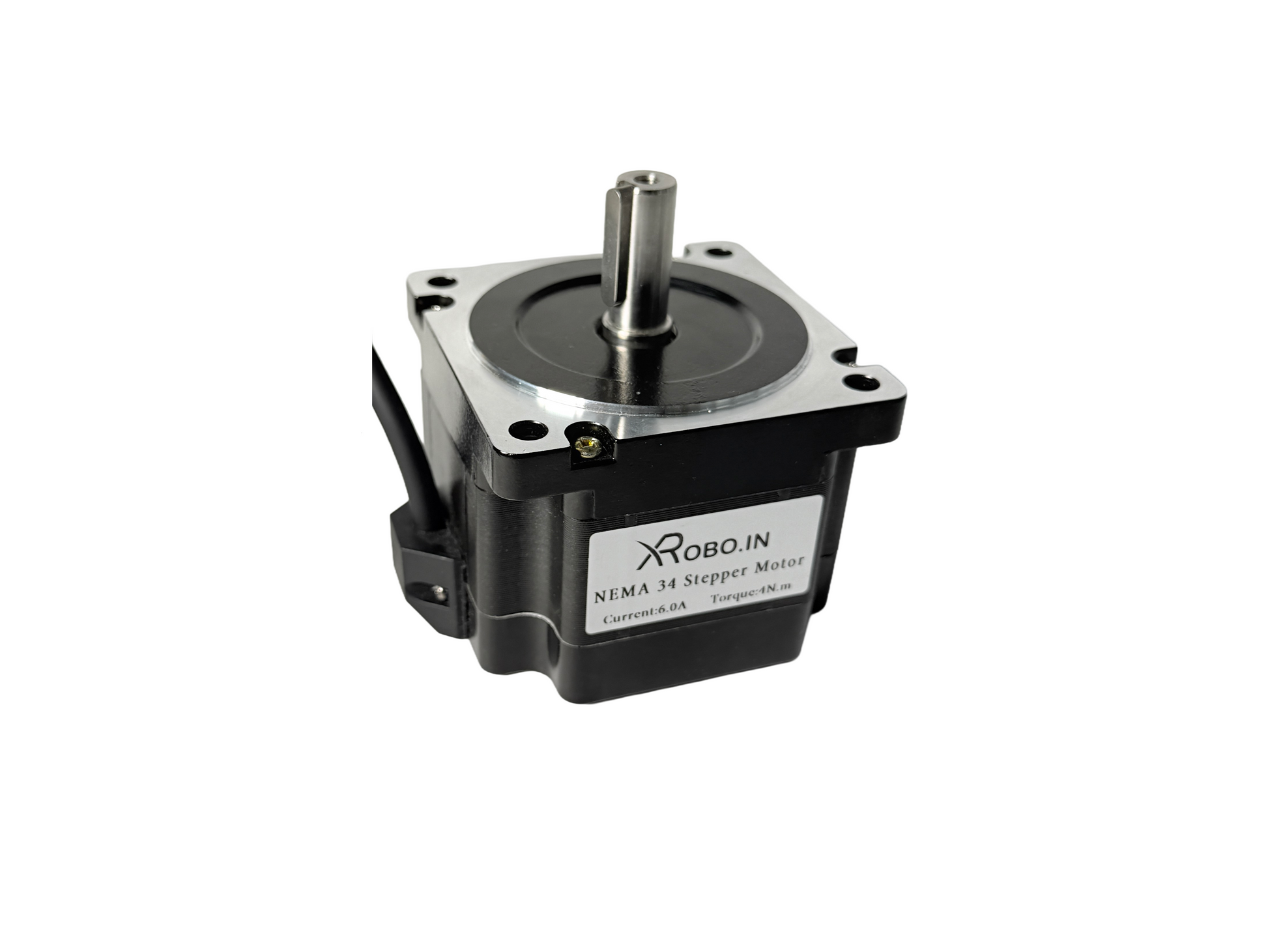

| Product Name | NEMA 34 Hybrid Stepper Motor (86×86×65 mm) |
| Motor Type | 2-Phase Bipolar Hybrid Stepper Motor |
| Frame Size | NEMA 34 (86 × 86 mm) |
| Step Angle | 1.8° per step |
| Rated Current / Phase | 6.0 A |
| Phase Resistance | ~0.17 Ω |
| Phase Inductance | ~2.0 mH |
| Holding Torque | ~3.5 N·m |
| Rotor Inertia | ~1100 g·cm² |
| Number of Leads | 4 wires (A+, A−, B+, B−) |
| Shaft Type | Keyed shaft |
| Shaft Diameter | ~12.7 mm |
| Shaft Length | ~32 mm |
| Body Length | ~65 mm |
| Lead Wire Length | ~400 mm |
| Weight | ~1.65 kg |
| Insulation Class | Class B |
| Operating Temperature | −20 °C to +50 °C |
| Typical Applications | CNC machinery, automation, robotics, motion control |
This high-torque NEMA34 stepper motor Waterproof Motor delivers approximately 3.5 N·m holding torque with a standard 1.8° step angle, making it suitable for heavy-duty motion control applications. Designed for industrial environments, it offers strong torque output, stable stepping performance, and reliable operation in demanding CNC and automation systems.
Application Areas:
- CNC routers and milling machines
- Industrial automation equipment
- Robotics and motion control systems
- Large-format 3D printers
- Pick-and-place machinery
- Precision positioning systems
Wires Connection:
- Red : A+
- Green : A-
- Yellow : B+
- Blue : B-

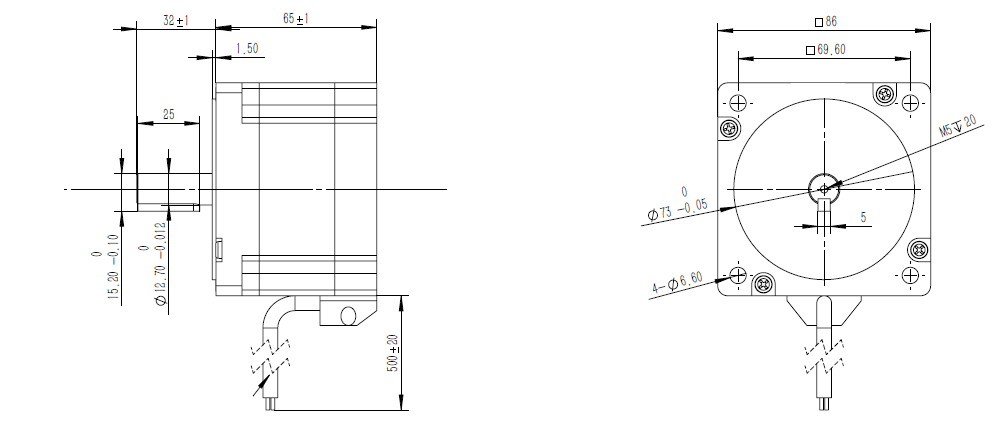

Drawings:
Packing List Includes:
- 1 x NEMA34 35kg-cm Stepper Motor
