| Parameter | Specification |
|---|---|
| Product Name | NEMA34 Hybrid Stepper Motor |
| Motor Type | 2-Phase Bipolar Hybrid Stepper Motor |
| Frame Size | NEMA 34 (86 × 86 mm) |
| Step Angle | 1.8° per step |
| Rated Current / Phase | 6.0 A |
| Phase Resistance | ~0.58 Ω |
| Phase Inductance | ~8 mH |
| Gearbox Type | Planetary Gear Reducer |
| Rated Output Torque | ~40 N·m |
| Gearbox Efficiency | 96% |
| Backlash | < 15 Arcmin |
| Noise Level | < 45 dB |
| Number of Leads | 4 wires (A+, A−, B+, B−) |
| Shaft Type | Keyed shaft |
| Shaft Diameter | ~18 mm |
| Shaft Length | ~32 mm |
| Body Length | ~80 mm |
| Body Length With Gearbox | ~165 mm |
| Lead Wire Length | ~400 mm |
| Weight | ~2.6 kg |
| Insulation Class | Class B |
| Operating Temperature | −20 °C to +50 °C |
| Typical Applications | CNC machinery, automation, robotics, motion control |

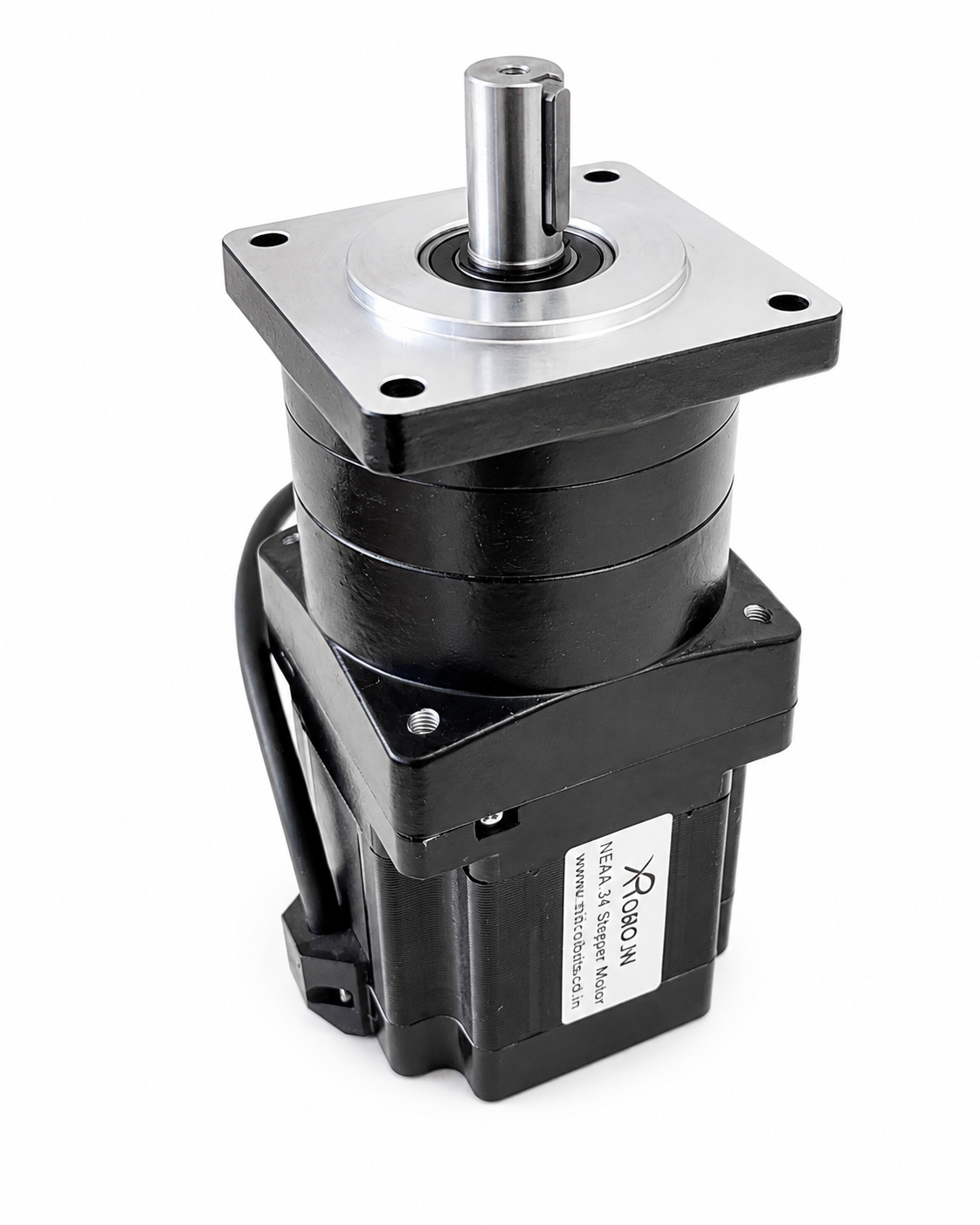

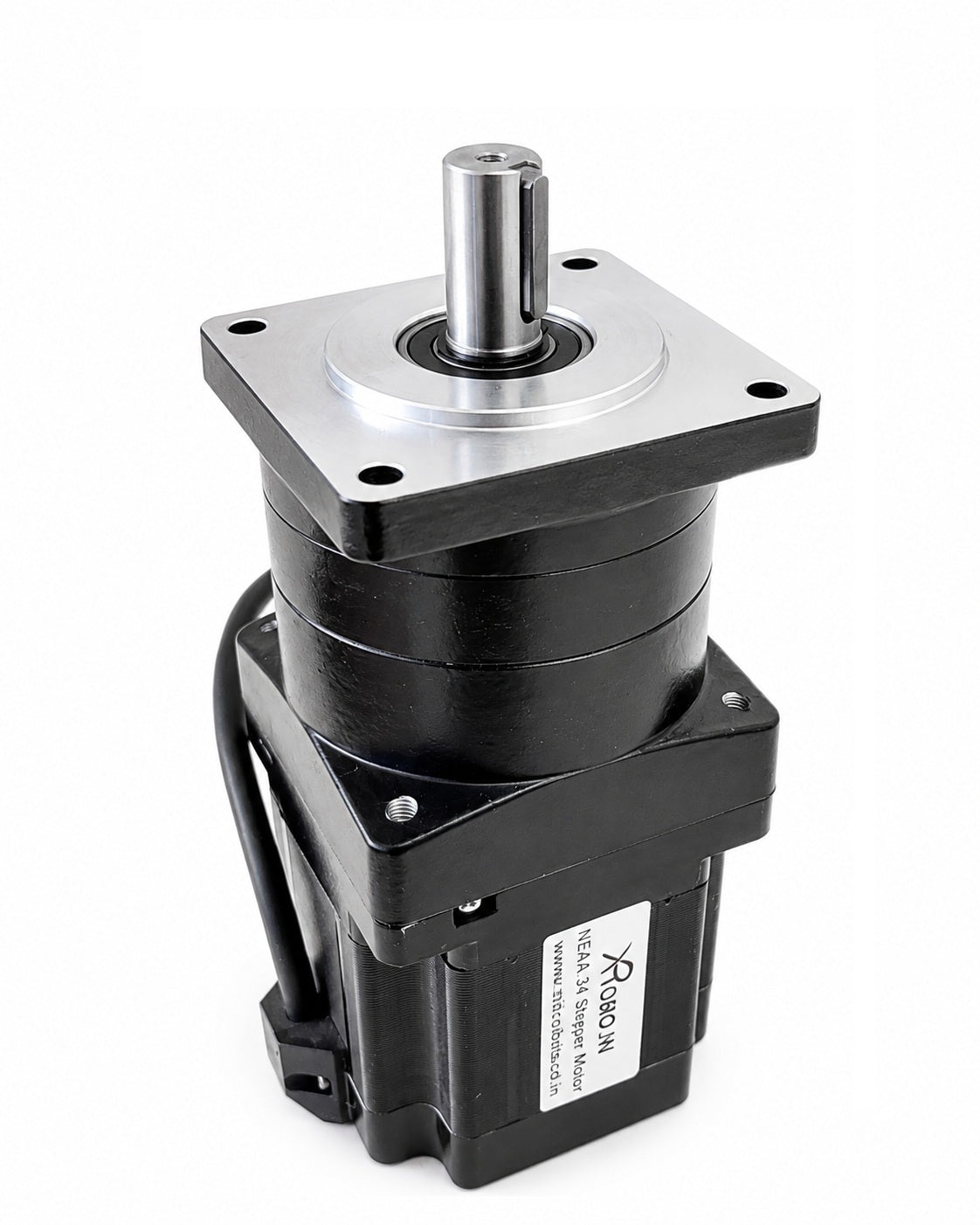

The NEMA34 Planetary Geared Stepper Motor is a high-torque industrial stepper motor featuring an 86mm NEMA34 frame and an integrated planetary gearbox. With a rated output torque of up to 400 Kg-cm and a 16:1 planetary reduction ratio, it is ideal for CNC machines, automation systems, indexing tables, packaging equipment, and heavy-duty motion control applications.
Application Areas:
- CNC routers and milling machines
- Industrial automation equipment
- Robotics and motion control systems
- Large-format 3D printers
- Pick-and-place machinery
- Precision positioning systems
Wires Connection:
- Red : A+
- Green : A-
- Yellow : B+
- Blue : B-
Drawings:
Packing List Includes:
- 1 x NEMA34 40Nm Planetary Geared STEPPER MOTOR
