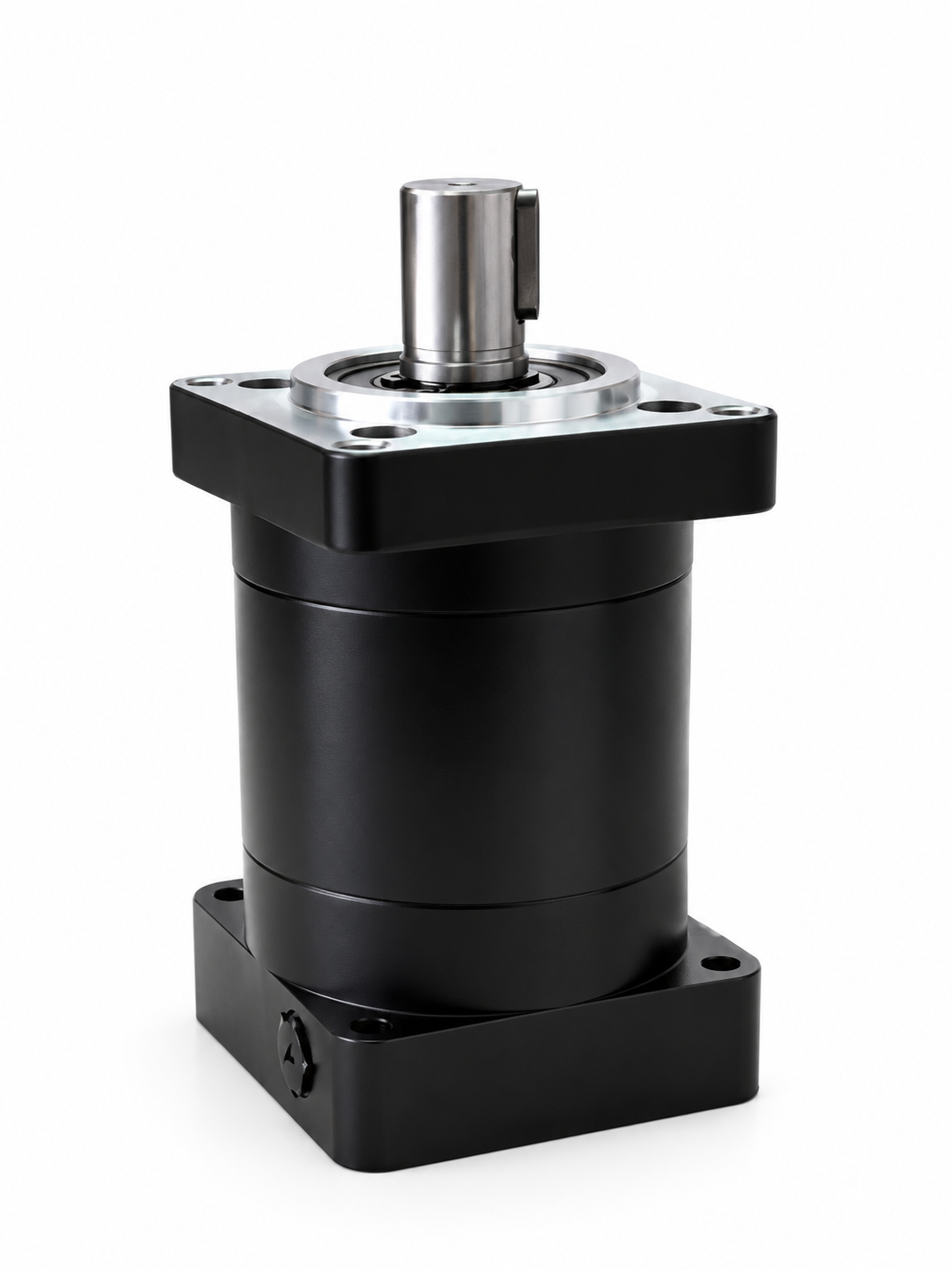

Planetary Gear Speed Reducer for NEMA23 (57mm) with 1:5 gear ratio

Planetary Gear Speed Reducer for NEMA23 (57mm) with 1:5 gear ratio

Availability: Out of stock
₹ 3,240.00 (Inc.GST)
₹ 3,240.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270109

Short Description:
  • Frame Size: Nema23 ( 57 x 57 mm
  • Easy mounting with standard NEMA 23 motor
  • Gearbox Length: 75mm
  • Output Shaft Diameter: 14mm +key
  • Input Shaft Diameter : 6.3mm
  • Shaft Length: 26 mm
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model PX57 Series
Gearbox Type Planetary Gearbox
Frame Size 57 × 57 mm
Compatible Motor NEMA 23 Stepper Motor
Gear Ratio Options 1:5
Rated Torque 25 Nm
Maximum Torque 50 Nm
Efficiency 90%
Backlash ≤30 arcmin
Rated Input Speed ≤2000 rpm
Protection Level IP54
Average Life Span 20,000 hours
Noise Level ≤55 dB
Gearbox Length 75 mm
Output Shaft Diameter 14 mm +key
Output Shaft Length 26 mm
Key Length 16 mm
Input Shaft Diameter 6.3 mm
Weight 0.75 kg
Installation Method Flange Mount

The Xrobo.in High-precision planetary gearbox designed for NEMA 23 (57 mm), 1:5 ratio, providing high torque output and smooth transmission. Features low backlash, high efficiency, and durable construction for reliable industrial motion control applications. Suitable for CNC machines, automation systems, robotics, and precision positioning equipment.

Key Features :

  • High torque output with compact planetary gear design
  • Low backlash for precise positioning and motion control
  • High transmission efficiency (up to 95%)
  • Durable hardened steel gears for long service life
  • Compact and lightweight structure
  • High radial and axial load capacity
  • Smooth, quiet, and stable operation
  • Easy mounting with standard NEMA 23 motor compatibility

Packing List Includes:

  • 1 x Planetary Gearbox 1:5 ratio

The product has a warranty for 1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
