| Parameter | Specification |
|---|---|
| Model | PX86 Series |
| Gearbox Type | Planetary Gearbox |
| Frame Size | 86 × 86 mm |
| Compatible Motor | NEMA 34 Stepper Motor |
| Gear Ratio Options | 16:1 |
| Rated Torque | 50 Nm |
| Maximum Torque | 80 Nm |
| Efficiency | 90% |
| Backlash | ≤30 arcmin |
| Rated Input Speed | ≤3000 rpm |
| Protection Level | IP65 |
| Average Life Span | 20,000 hours |
| Noise Level | ≤60 dB / ≤65 dB / ≤75 dB |

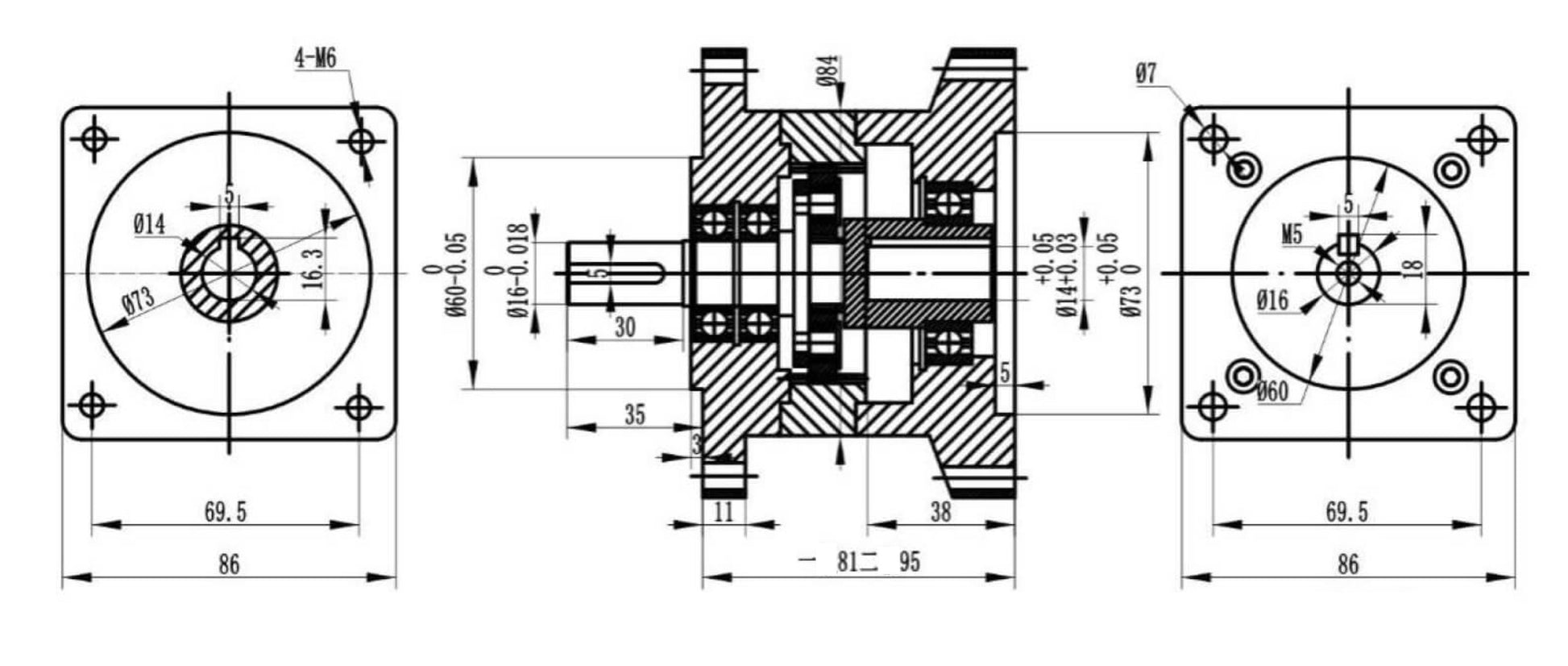

| Gearbox Length | 95 mm |
| Output Shaft Diameter | 16 mm + key |
| Output Shaft Length | 35 mm |
| Key Length | 30 mm |
| Input Shaft Diameter | 14 mm + key |
| Weight | 2.15 kg |
| Installation Method | Flange Mount |

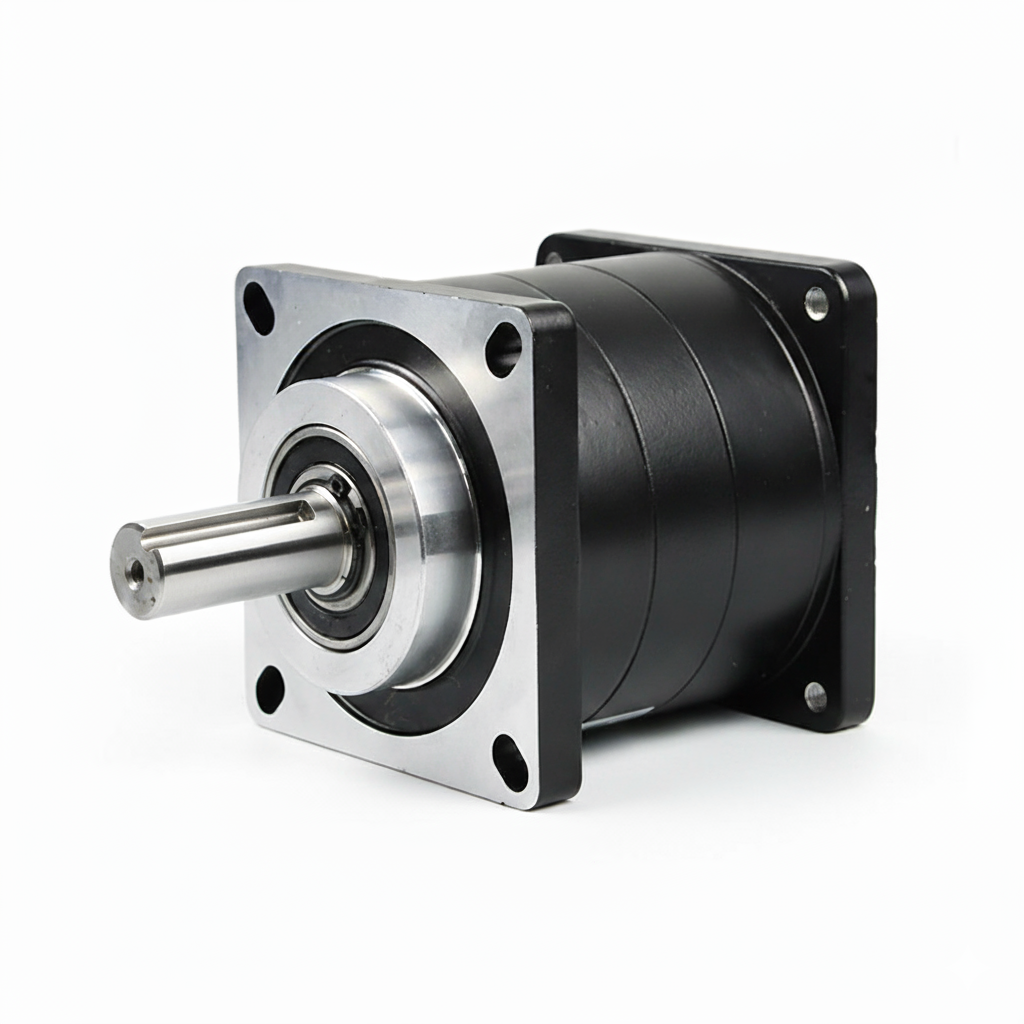

The Xrobo.in High-precision planetary gearbox designed for NEMA 34 (86 mm), 1:16 ratio, providing high torque output and smooth transmission. Features low backlash, high efficiency, and durable construction for reliable industrial motion control applications. Suitable for CNC machines, automation systems, robotics, and precision positioning equipment.
Key Features :
- High torque output with compact planetary gear design
- Low backlash for precise positioning and motion control
- High transmission efficiency (up to 95%)
- Durable hardened steel gears for long service life
- Compact and lightweight structure
- High radial and axial load capacity
- Smooth, quiet, and stable operation
- Easy mounting with standard NEMA 34 motor compatibility
Packing List Includes:
- 1 x Planetary Gearbox 1:16 ratio
