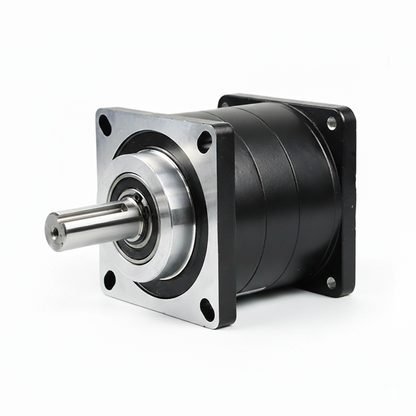

Planetary Gear Speed Reducer for NEMA34 (86mm) with 1:5 gear ratio

Planetary Gear Speed Reducer for NEMA34 (86mm) with 1:5 gear ratio

Availability: Pre-order – Shipped within 35-40 days
₹ 5,200.00 (Inc.GST)
₹ 5,200.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270105

Short Description:

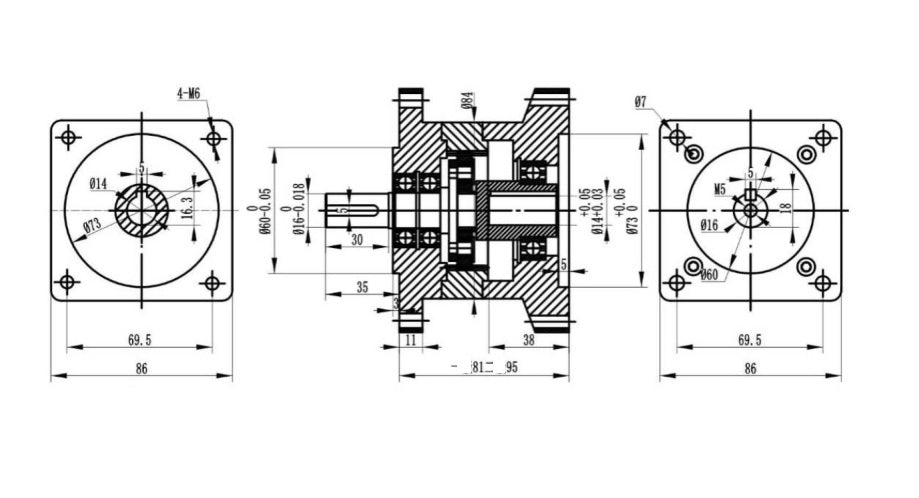

  • Frame Size: Nema 34 ( 86 x 86mm)
  • Gearbox Length: 81mm
  • Key Shaft Diameter: 18mm
  • Shaft Length: 35 mm
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model PX86 Series
Gearbox Type Planetary Gearbox
Frame Size 86 × 86 mm
Compatible Motor NEMA 34 Stepper Motor
Gear Ratio Options 5:1
Rated Torque 30 Nm
Maximum Torque 50 Nm
Efficiency 95%
Backlash ≤18 arcmin
Rated Input Speed ≤3000 rpm
Protection Level IP65
Average Life Span 20,000 hours
Noise Level ≤60 dB
Gearbox Length 81 mm
Output Shaft Diameter 18 mm
Output Shaft Length 35 mm
Key Length 30 mm
Input Shaft Diameter 16 mm Key Shaft Type
Weight 1.65 kg
Installation Method Flange Mount


The Xrobo.in High-precision planetary gearbox designed for NEMA 34 (86 mm), 1:5 ratio, providing high torque output and smooth transmission. Features low backlash, high efficiency, and durable construction for reliable industrial motion control applications. Suitable for CNC machines, automation systems, robotics, and precision positioning equipment.

Key Features :

  • High torque output with compact planetary gear design
  • Low backlash for precise positioning and motion control
  • High transmission efficiency (up to 95%)
  • Durable hardened steel gears for long service life
  • Compact and lightweight structure
  • High radial and axial load capacity
  • Smooth, quiet, and stable operation
  • Easy mounting with standard NEMA 34 motor compatibility

Packing List Includes:

  • 1 x Planetary Gearbox 1:5 ratio

The product has a warranty for 1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
