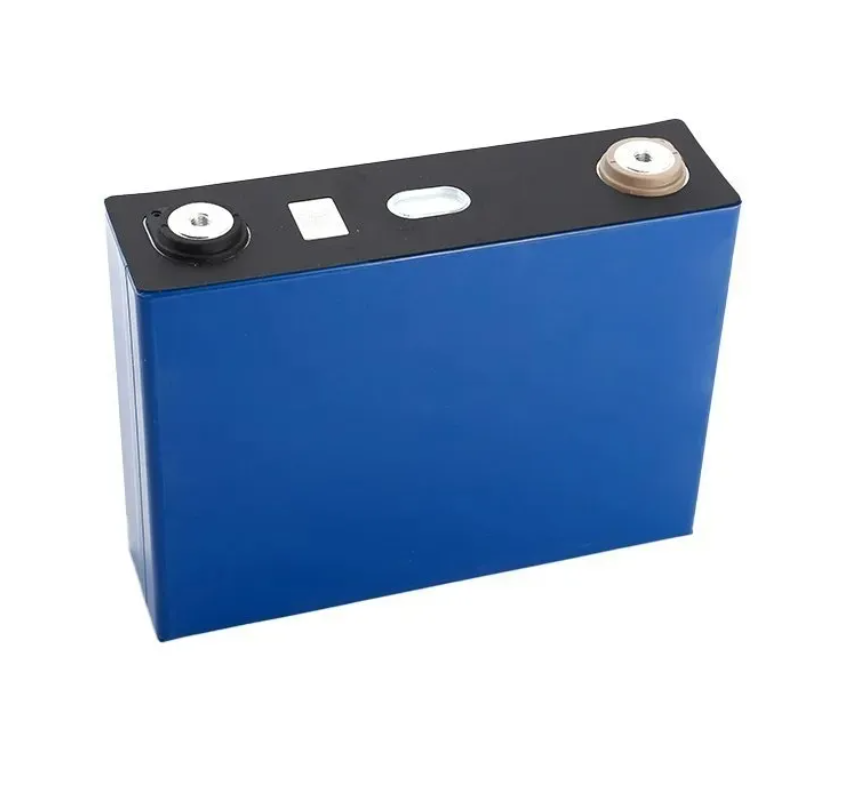

Prismatic LiFePO4 Lithium Battery Cell 3.2V 40130205-100Ah

Prismatic LiFePO4 Lithium Battery Cell 3.2V 40130205-100Ah

Availability: In stock
₹ 3,060.00 (Inc.GST)
₹ 3,060.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

7920800

Short Description:
  • Model: Prismatic LiFePO4
  • Nominal Voltage: 3.2V
  • Nominal Capacity: 100Ah
  • Cycle Life: >4,000 cycles (80% DOD)
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Type LiFePO4 Prismatic Battery
Nominal Voltage 3.2V
Capacity 100Ah
Energy ~320Wh
Charge Voltage 3.65V (max)
Discharge Cut-off 2.5V
Max Charge Current Up to 1C (≈100A)
Max Discharge Current 1C–3C (config dependent)
Cycle Life 4000+ cycles
Internal Resistance ≤0.3–0.6 mΩ
Dimensions ~220 × 130 × 40 mm
Weight ~2.3 – 2.8 kg
Terminal Type M6 threaded
Applications EV, solar, UPS, DIY packs

The 3.2V 100Ah Prismatic Lithium Battery (LiFePO4) is a high-performance rechargeable cell designed for energy storage, EVs, and industrial applications. Built using Lithium Iron Phosphate (LiFePO4) chemistry, it offers superior safety, long cycle life, and stable performance compared to traditional batteries.

Its prismatic design ensures compact installation and efficient space utilization, making it ideal for building battery packs for solar systems, electric vehicles, and backup power solutions.

Key Features:

🔋 High Capacity & Energy Density

  • 3.2V nominal voltage, 100Ah capacity
  • Approx. 320Wh energy output

🔄 Long Cycle Life

  • 4000+ charge-discharge cycles
  • Designed for long-term usage

🛡️ Safe LiFePO4 Chemistry

  • High thermal stability
  • Safer than Li-ion batteries

⚡ High Current Capability

  • Supports high discharge currents (up to 1C–3C)
  • Suitable for high-power applications

🔌 Stable Voltage Performance

  • Nominal voltage: 3.2V
  • Charging voltage: 3.65V max

🧱 Prismatic Design

  • Compact rectangular structure
  • Easy to assemble into battery packs

🧪 Applications:

  • 🔋 Solar energy storage systems
  • 🚗 Electric vehicles (EVs & e-rickshaws)
  • 🏠 UPS & backup power systems
  • ⚡ Inverters & off-grid systems
  • 🔧 DIY battery packs (12V / 24V / 48V)
  • 🏭 Industrial energy storage & automation

Packing List Includes:

1 x Prismatic LiFePO4 Lithium Battery Cell 3.2V 40130205-100Ah

The product has a warranty for 1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
